Description
- Hign-concerned Chemical: None
- Rated Current: 100A
- Special Features: Car fuse
- Material Type: Plastic,pbt,pc waterproof dust cover
- Item Weight: 279g
- Item Height: 3.5cm
- Item Width: 8.5cm
- Item Length: 13.8cm
- External Testing Certification: ce
- Model Name: CF1212,CS-664
- Year: 2019
- Brand Name: EAFC
- Origin: Mainland China

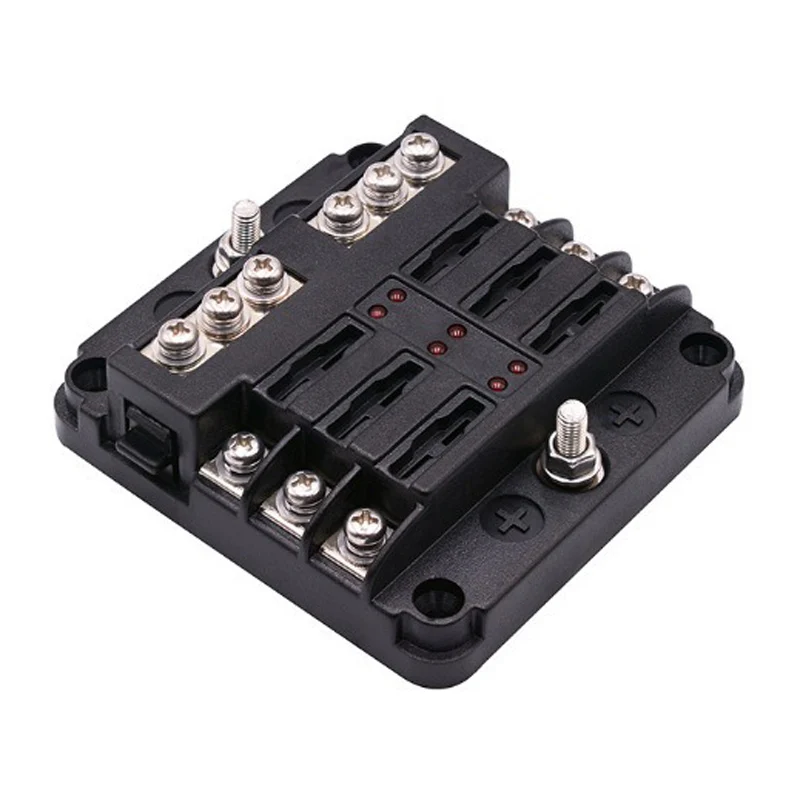

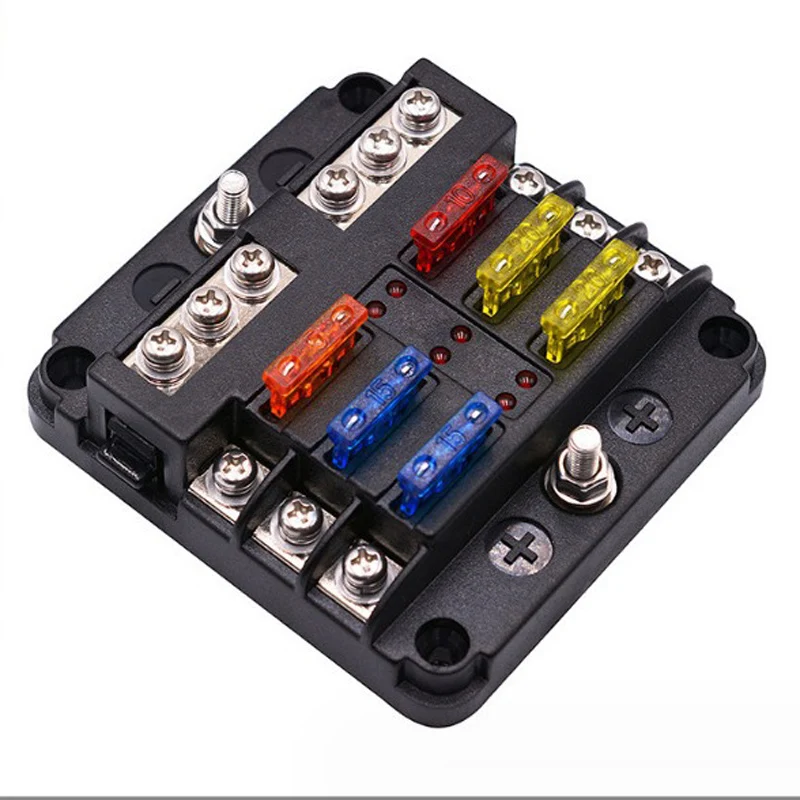

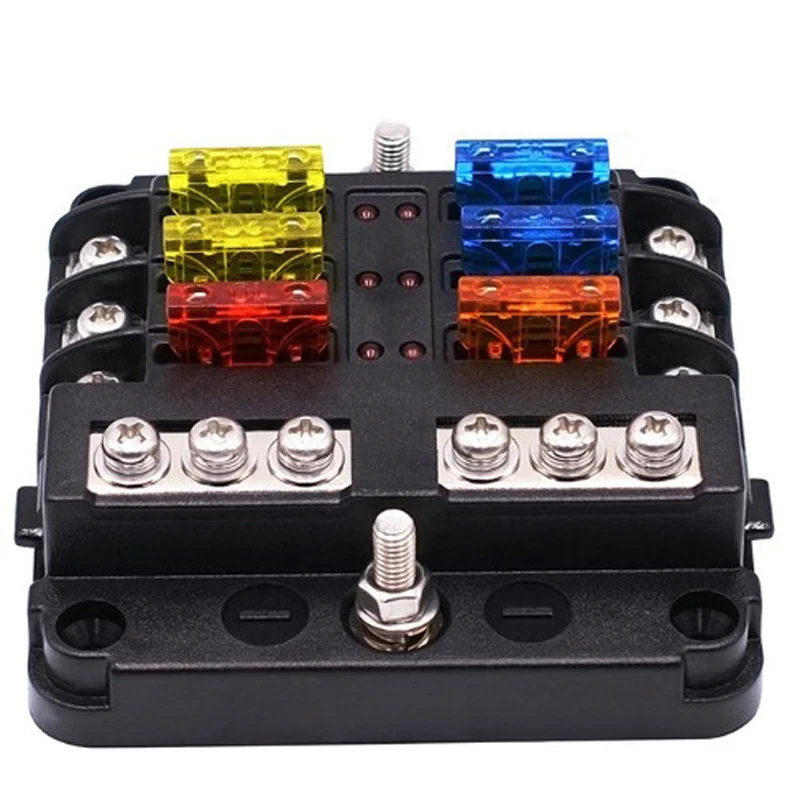

6 Ways Fuse Box:
product net weight: 176g
product size: 87.75*85*36.5mm
product material: PBT body, PC waterproof and dustproof cover, nickel-plated copper connector, PPX40 sticker
Input rated voltage: 32V
input rated current: 100A
output maximum current: each circuit is 30A
Main thread terminal: M5 threaded stud
Single thread terminal: M4 threaded stud

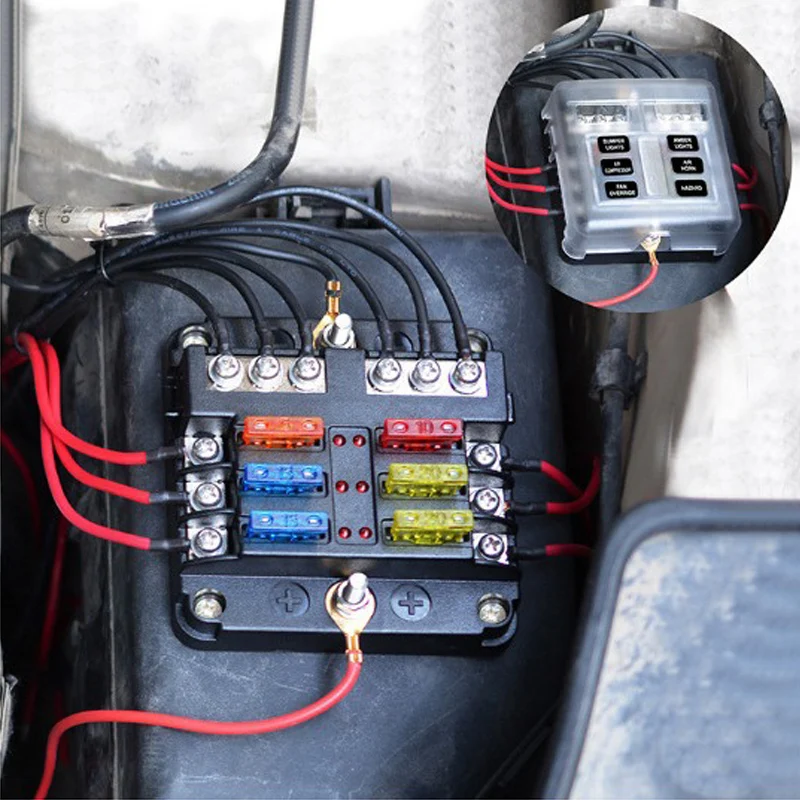

scope of product installation: it can be used on cars, houses, RVS, buses, yachts, boats, etc

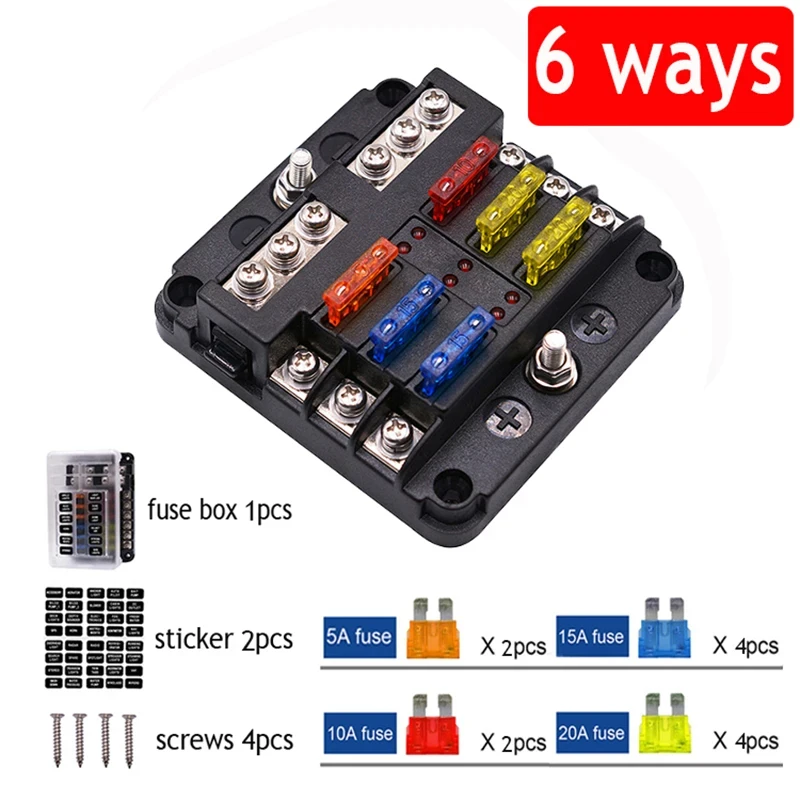

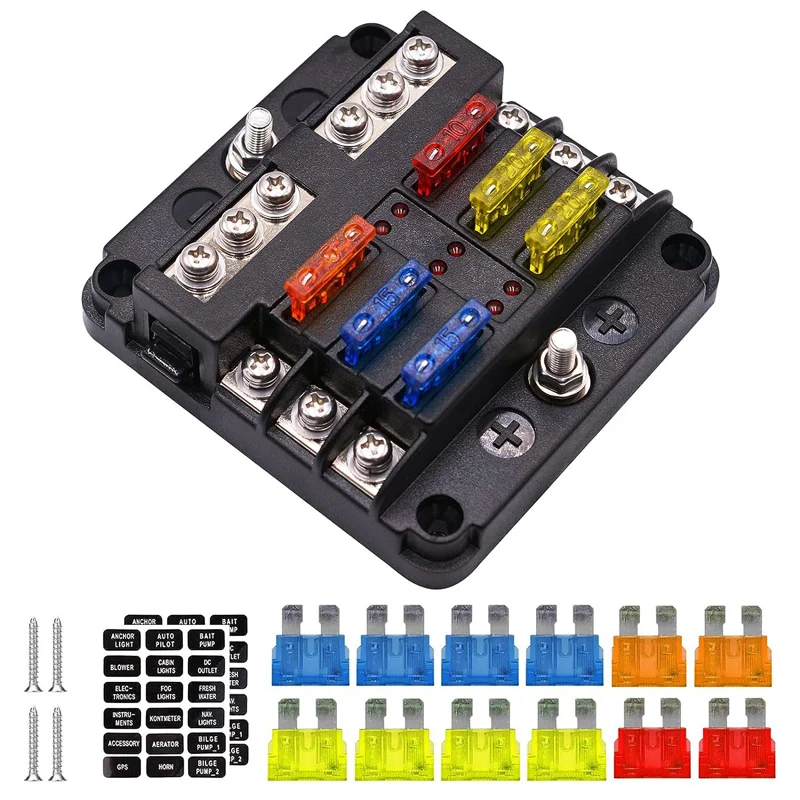

product accessories:
sticker X1; Self-tapping screw X4; 20A fuse X4; 15A fuse X4; 10A fuse X2; 5A fuseX2
sticker X1; Self-tapping screw X4; 20A fuse X4; 15A fuse X4; 10A fuse X2; 5A fuseX2
product advantages:
1. the product adopts PBT anti-fire, material.
1. the product adopts PBT anti-fire, material.
2. all bus and fuse clips are nickel-plated copper
3. all fasteners are stainless steel.
