Description
- Hign-concerned Chemical: None
- Built-in Mic: YES
- Expand Microphone: YES
- Video Maximum Resolution[Pixel X Pixel]: 1080i/P（1920*1080）
- Category: 360° Video Camera
- Supporting Language: japanese,FRENCH,german,Italian,Spanish,Portuguese,Russian,English,SWEDISH,POLISH,Greek,Turkish,KOREAN,DUTCH,Brazilian Portuguese,Simplified Chinese
- Effective MegaPixel: >25MP
- Wideangle: 360°*180°
- High Definition Support: 1080P (Full-HD)
- Brand Name: ZUIDID
- Origin: Mainland China
- Certification: CE,EAC,RoHS
- Brand Name: Vision Datum

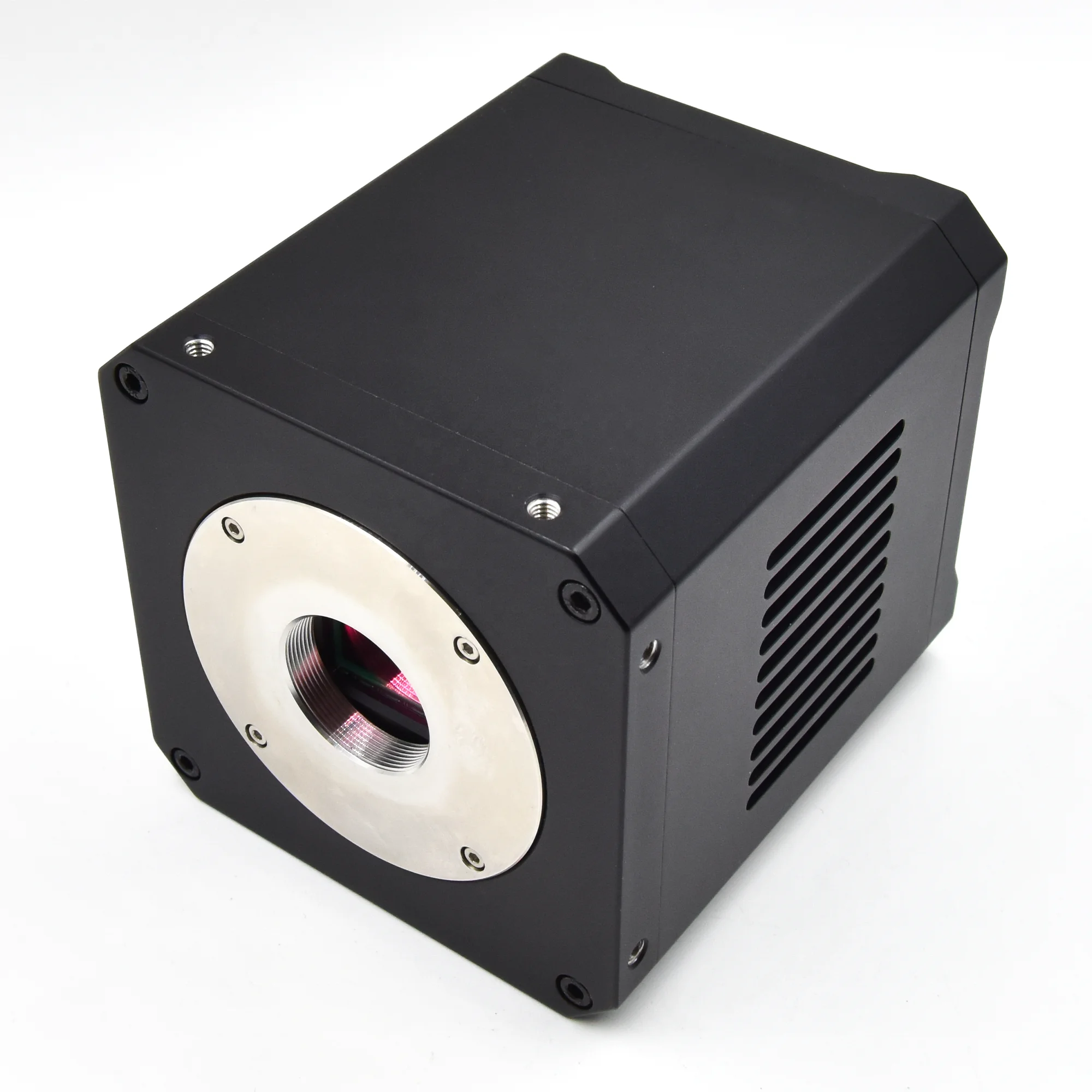

- Model Number: UV camera
- Private Mold: High-speed Cameralink Camera

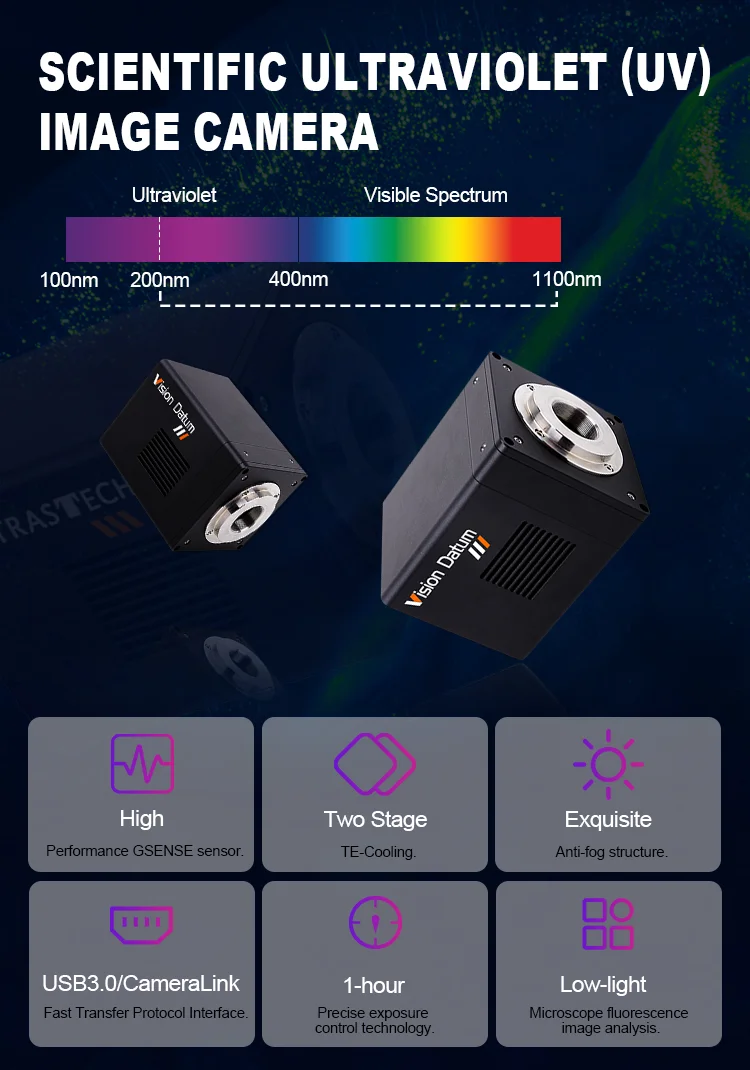

- Type: UV camera
- Function: industrial camera
- Model: iBoost01-100CUVC410M
- Sensor type: 4.2MP
- Sensor Size: 1.2"

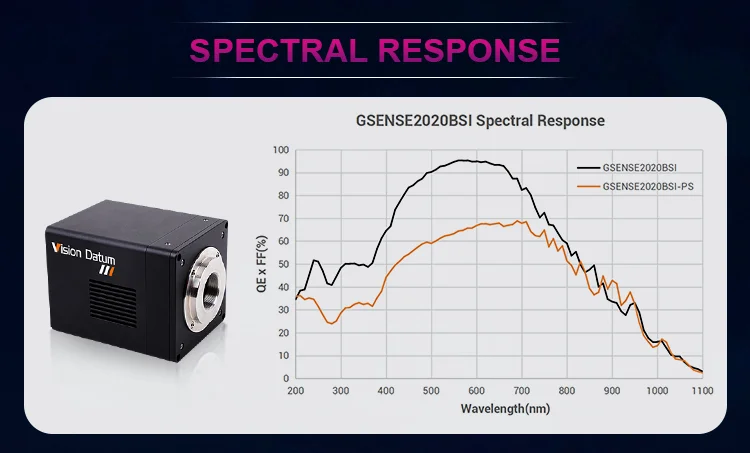

- Spectral Range: 200-1100nm
- Pixel Size (μm): 6.5 x 6.5
- Dynamic range: 65.58dB
- SNR: 34.83dB
- Bit depth: 8 Bit / HDR 16 Bit
- Interface: Cameralink
- Power Supply: DC12V 3A
|
Model
|
iBoost01-100CUVC410M
|
|
|
|
|||
|
FPS / Resolution
|
100@2048 x2048(11-bit ADC) 100@1024 x1024(11-bit ADC)
|
|
|
|
|||
|
Capture/Control SDK
|
Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc
|
|
|
|
|||
|
Recording System
|
Picture and Video
|
|
|
|
|||
|
Operating Temperature
|
-10~ 50℃ (Working),-20~ 60℃ (Storage)
|
|
|
|
|||
|
Operating System
|
Windows 7 / 8 /10 /11(32 & 64 bit),Mac OS,Linux
|
|
|
|
|||
|
PC Requirements
|
CPU
|
Intel Core 2 2.8GHz or Higher
|
|
|
|||
|
|
Memory
|
2GB or More
|
|
|
|||
|
|
Display
|
17″ or Larger
|
|
|
|||
|
SKU
|
UV Camera + IO cable + Cameralink cable
|
|
|
|
|||
|
|
|
|
|
||||
|
|
|
|
|
||||
