Description
- Hign-concerned Chemical: None
- Model Number: PCB
- Condition: New
- Type: Module
- Origin: Mainland China

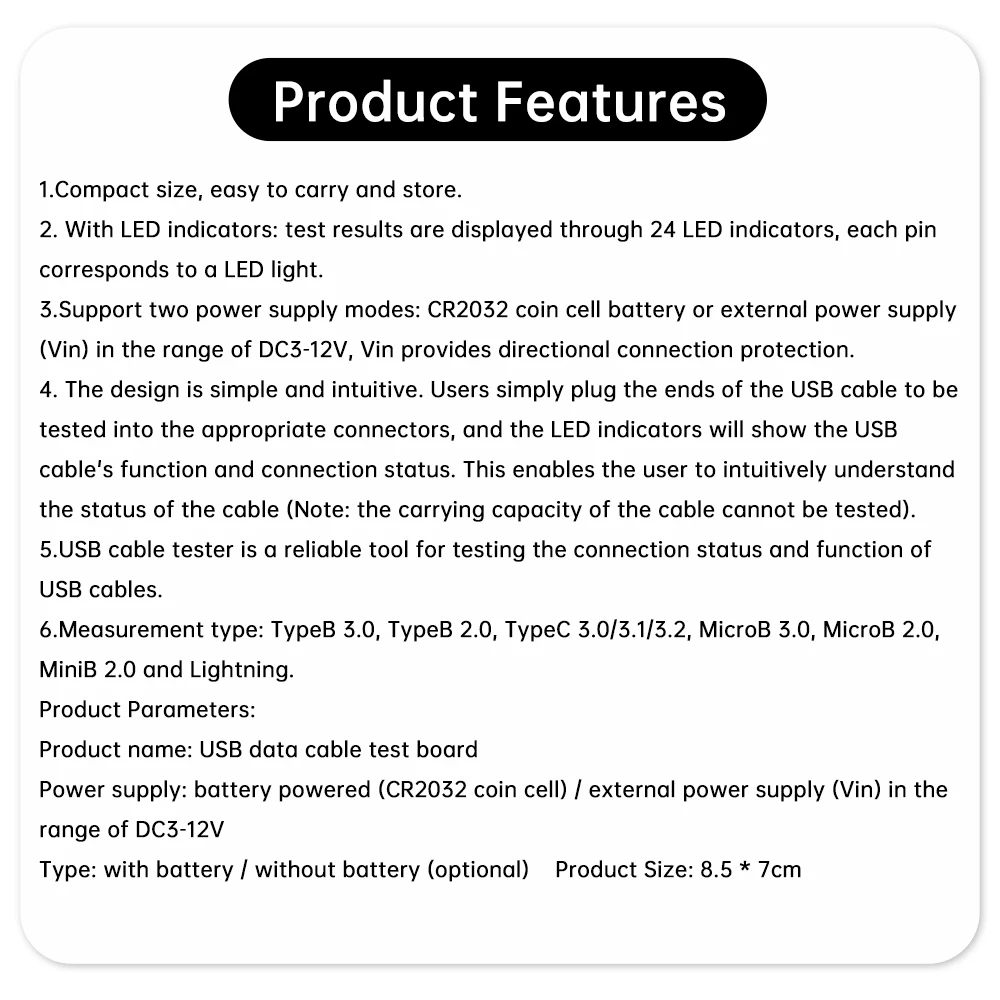

Product features:
1. Small size, easy to carry and store.

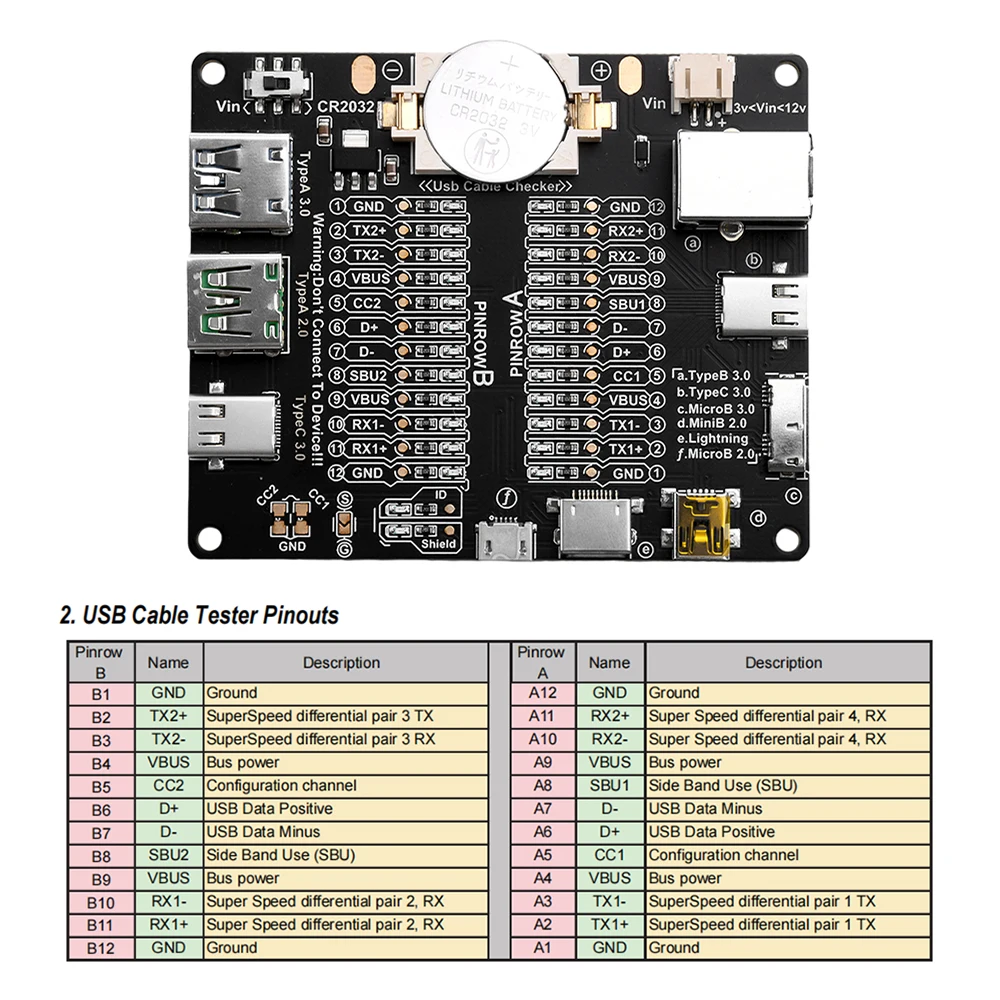

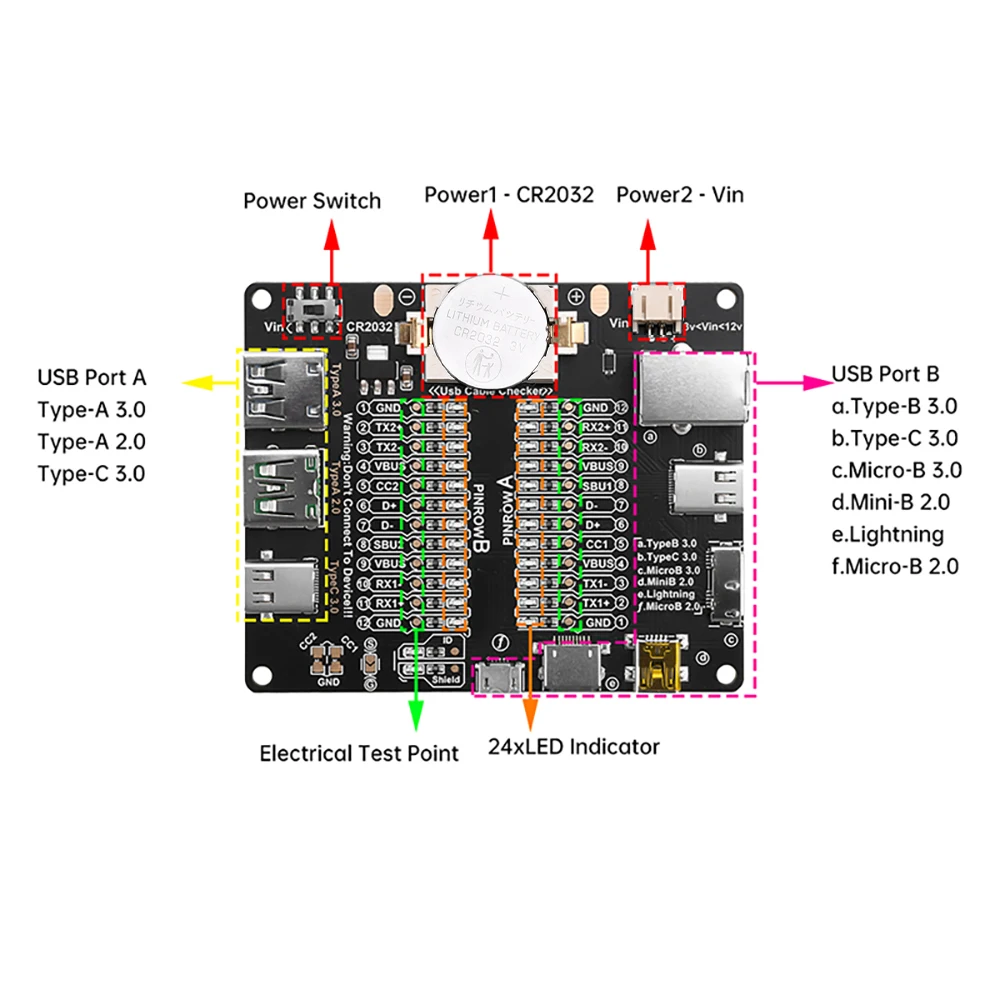

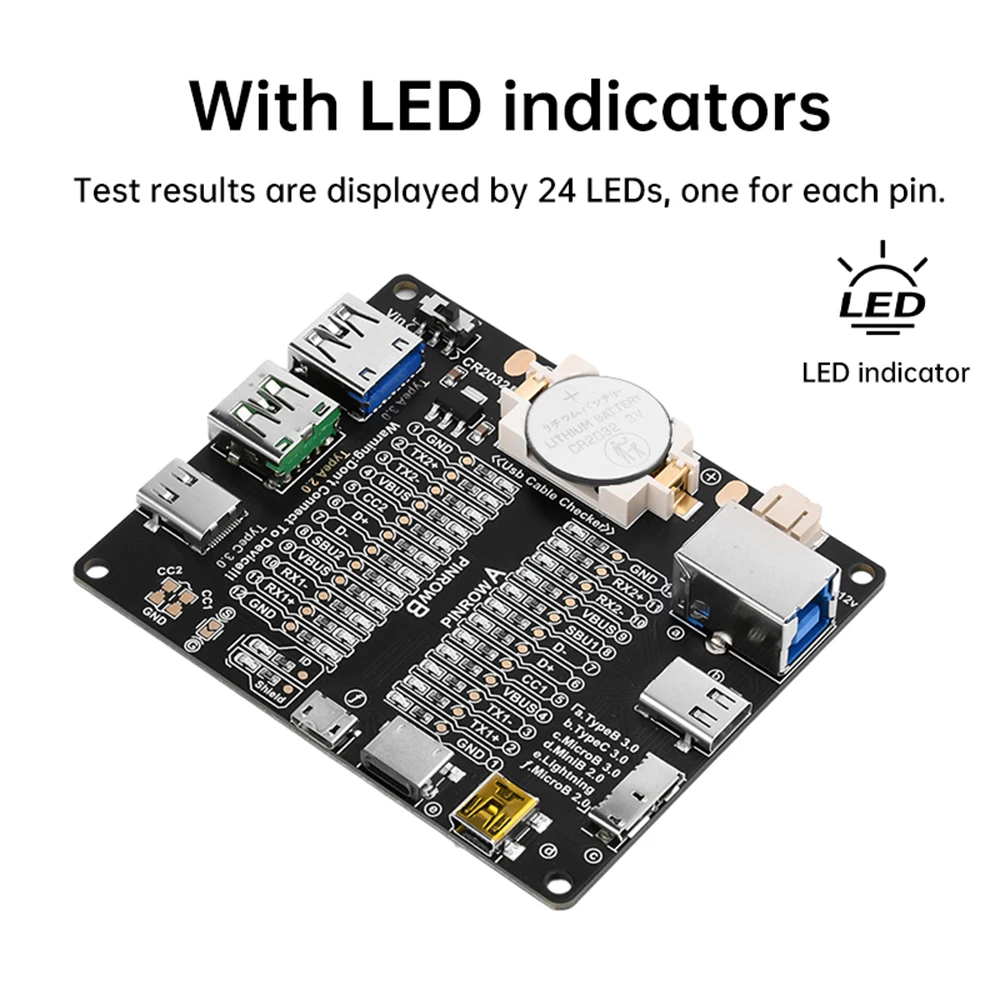

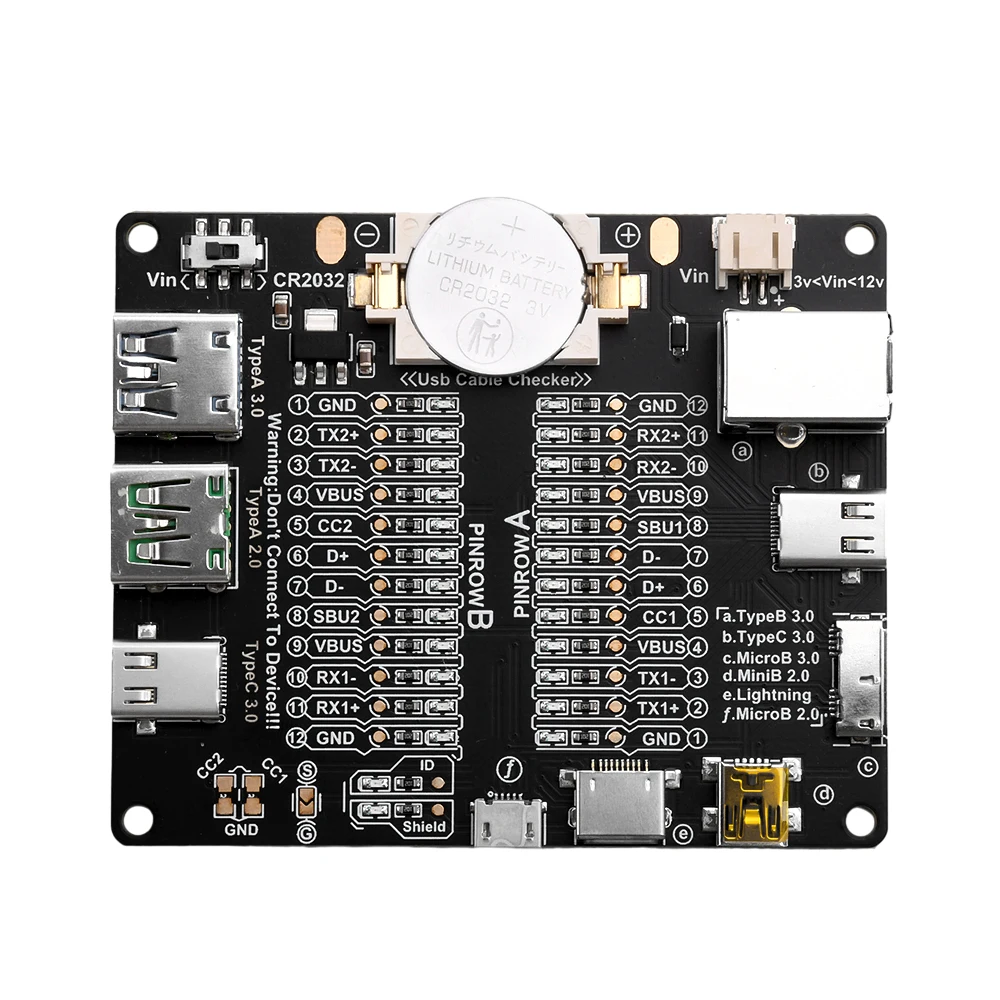

2. With LED indicator: The test results are displayed through 24 LED indicators, and each pin corresponds to a LED light.

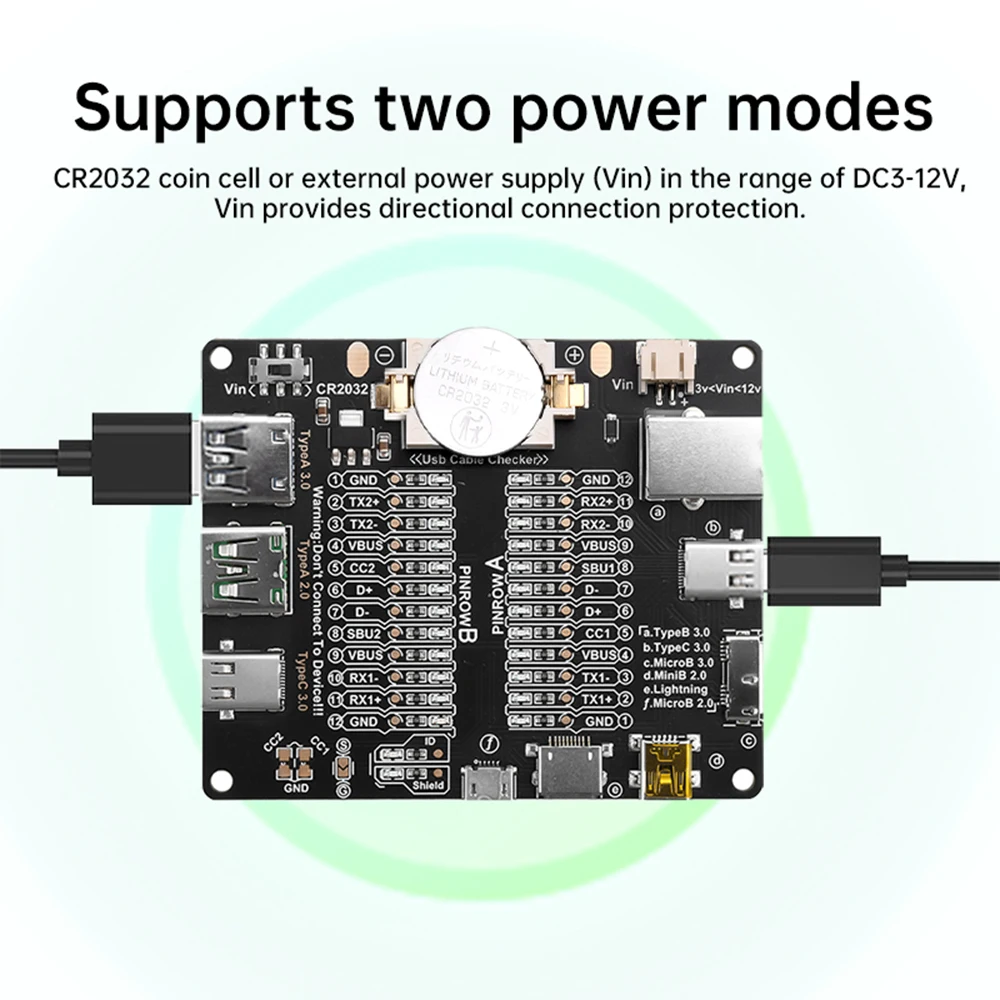

3. Support two power modes: CR2032 button battery or external power supply (Vin) In the DC3-12V range, Vin provides directional connection protection.

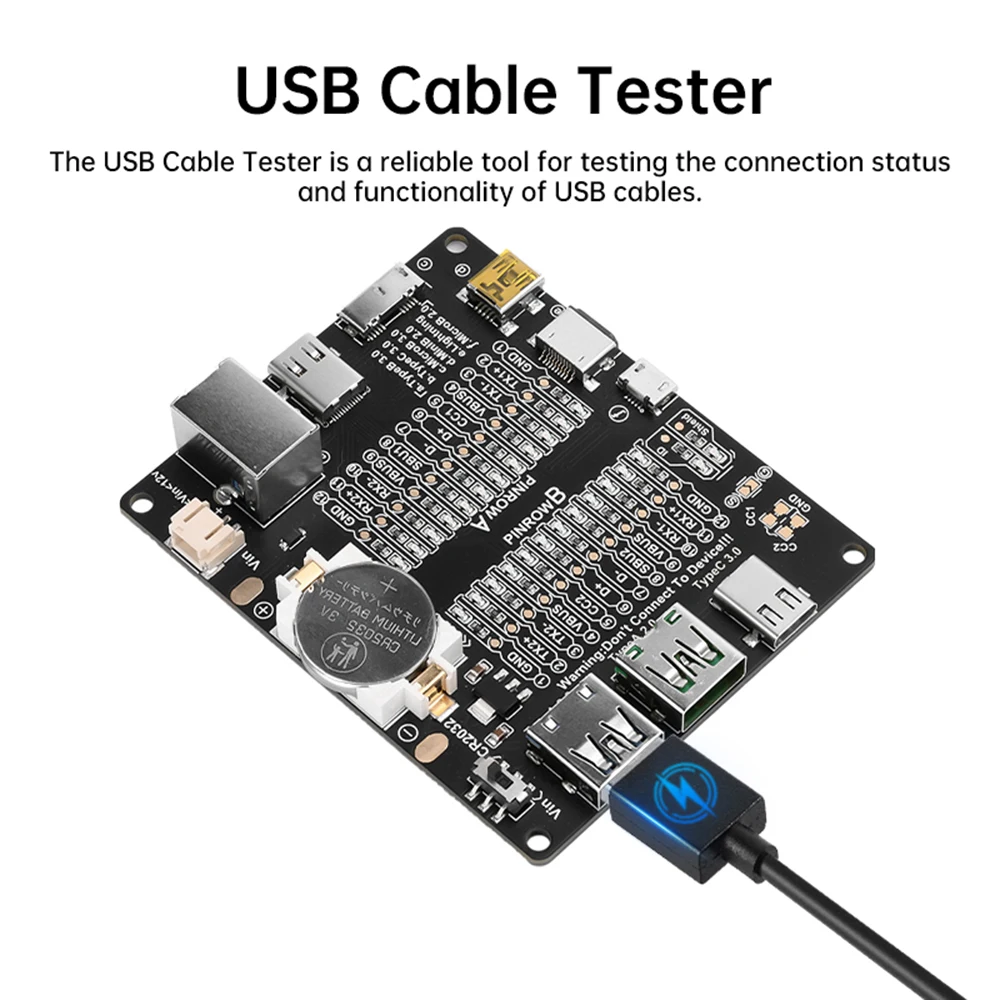

4. Simple and intuitive design. The user only needs to insert the corresponding connector at both ends of the USB cable to be tested, and the LED indicator will show the function and connection status of the USB cable. This allows the user to intuitively understand the status of the cable (note: the carrying capacity of the cable cannot be tested). 5.USB cable tester is a reliable tool for testing USB cable connection status and function.

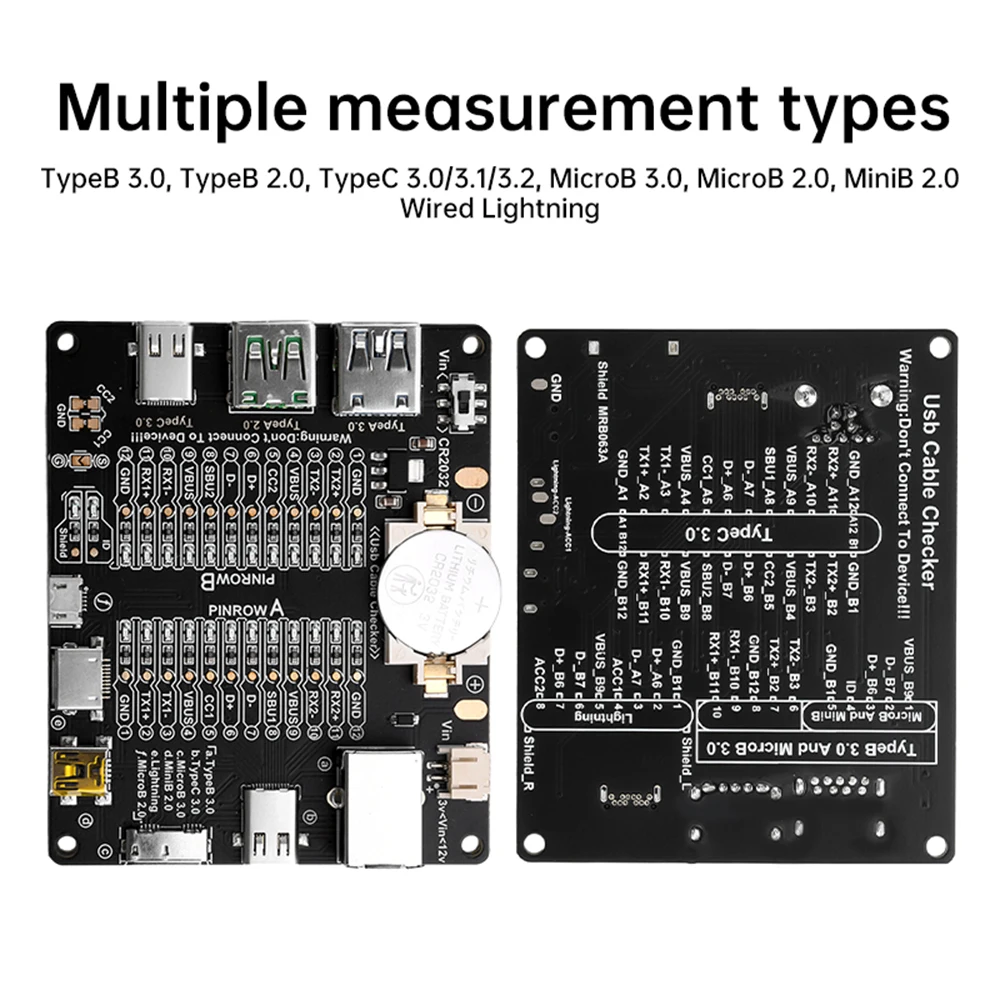

6. Measurement types: TypeB 3.0, TypeB 2.0, TypeC 3.0/3.1/3.2, MicroB 3.0, MicroB 2.0, MiniB 2.0 and Lightning.
Product parameters:

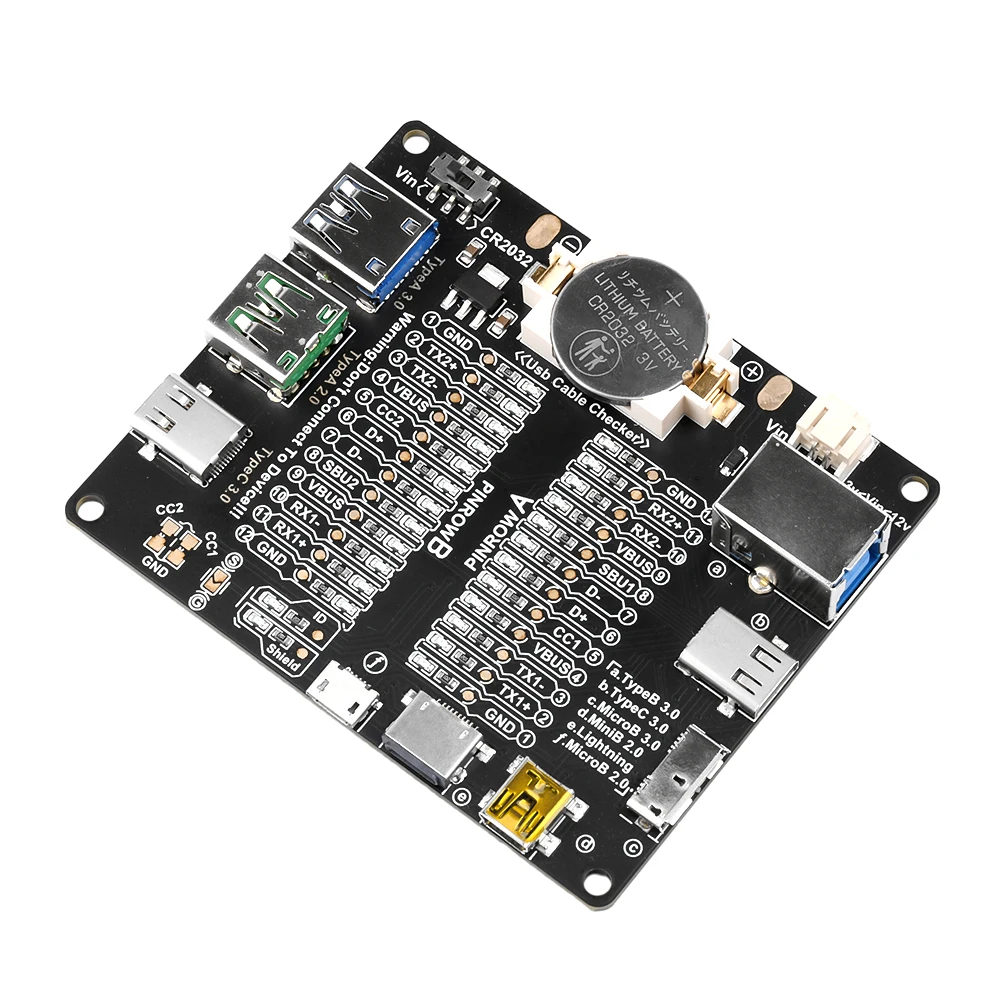

Product name: USB data line test board

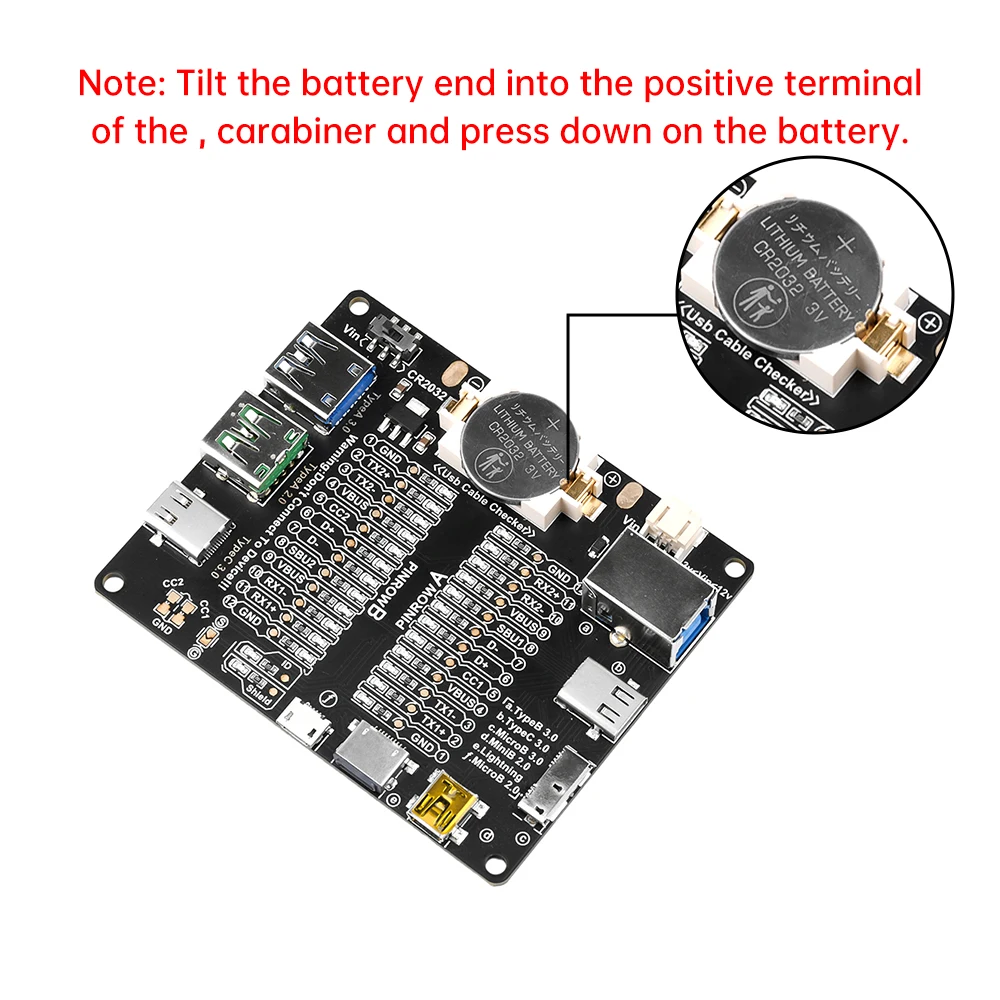

Power Supply: Battery powered (CR2032 button battery)/External power supply (Vin) in DC3-12V range

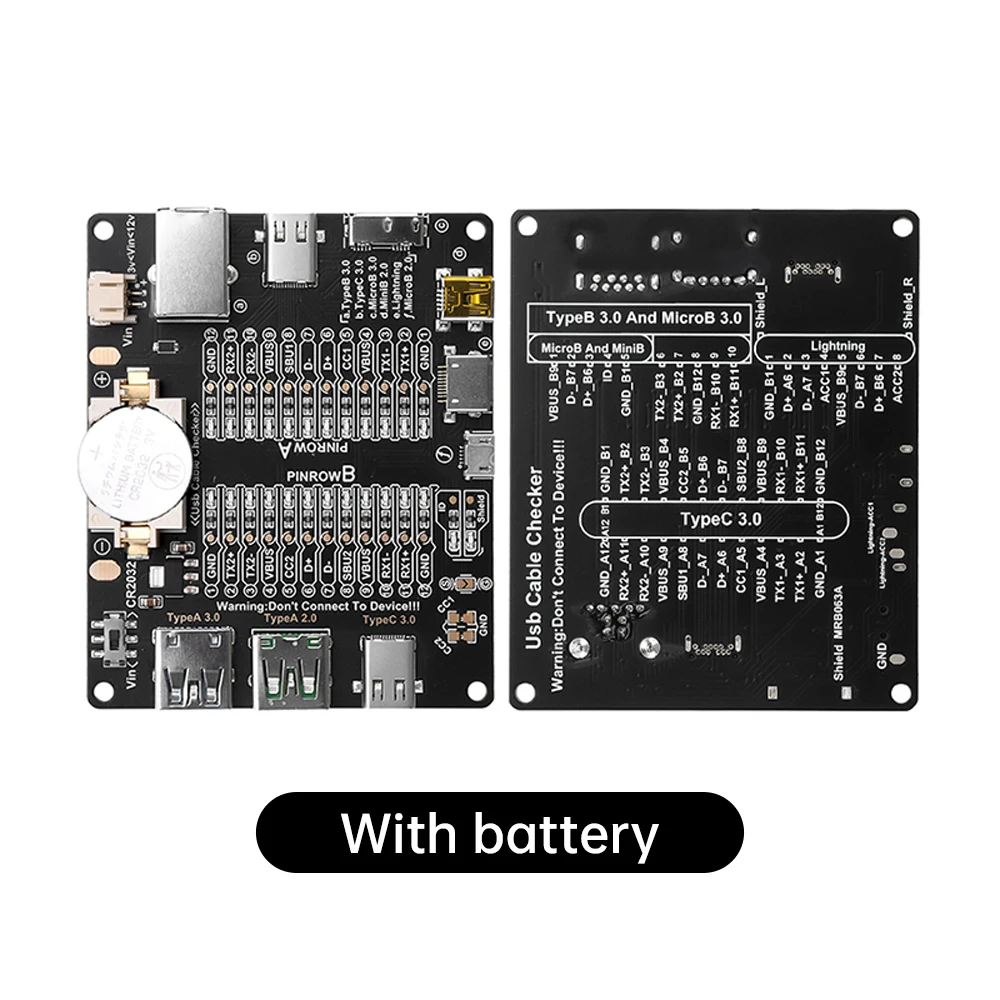

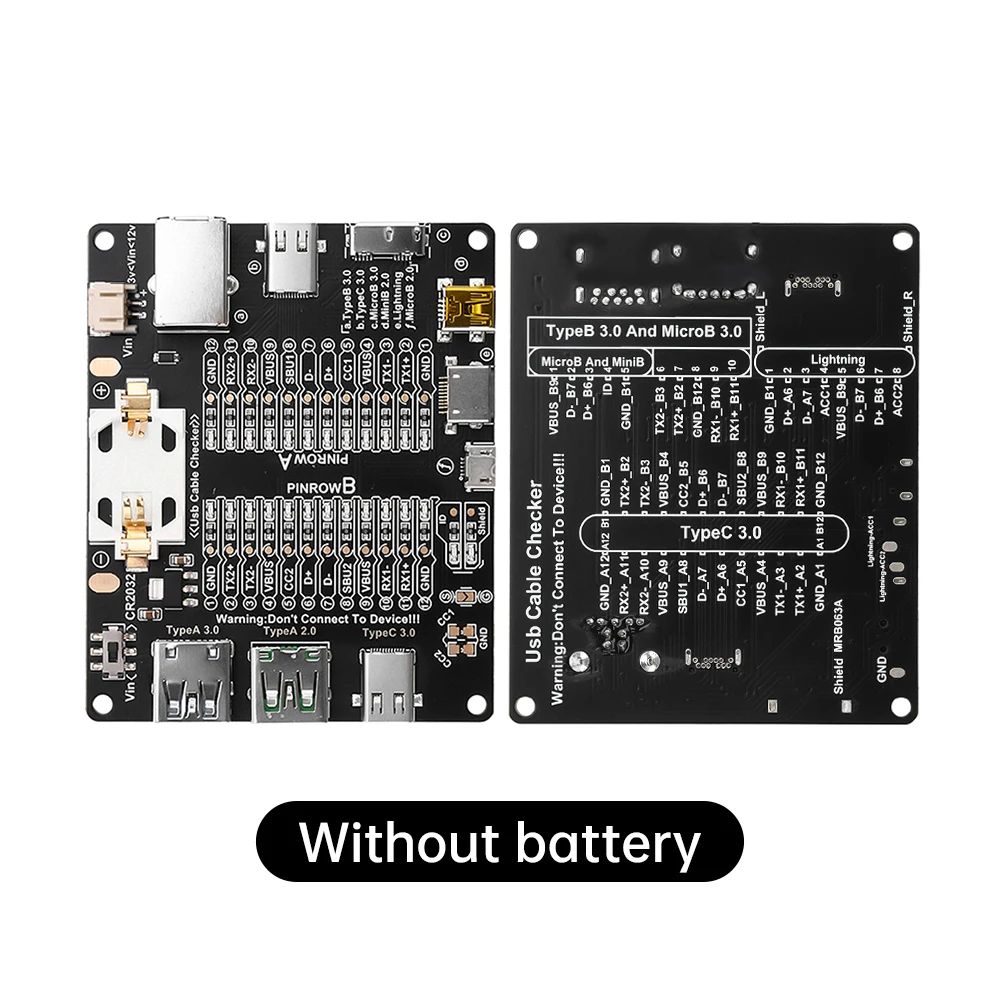

Type: With/Without battery/(optional)

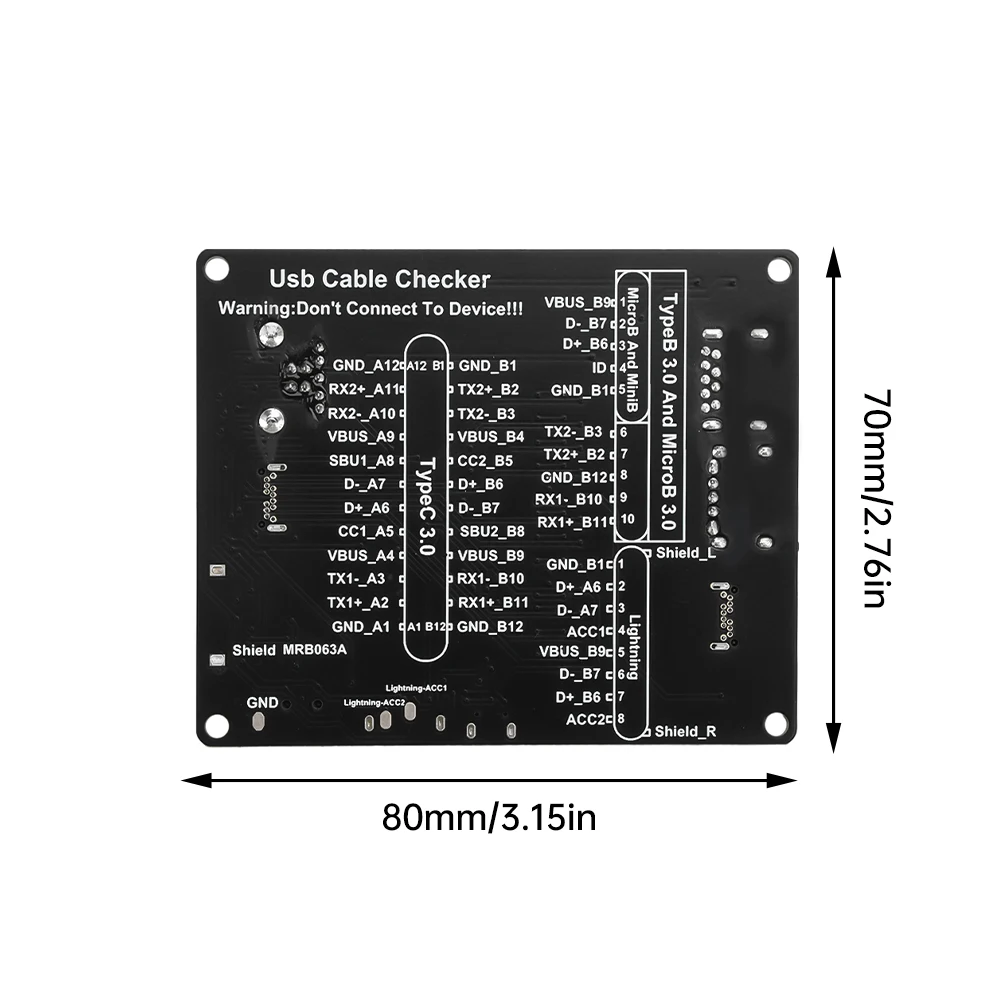

Product size: 8.5*7cm
Product list:
USB data cable test board *1
