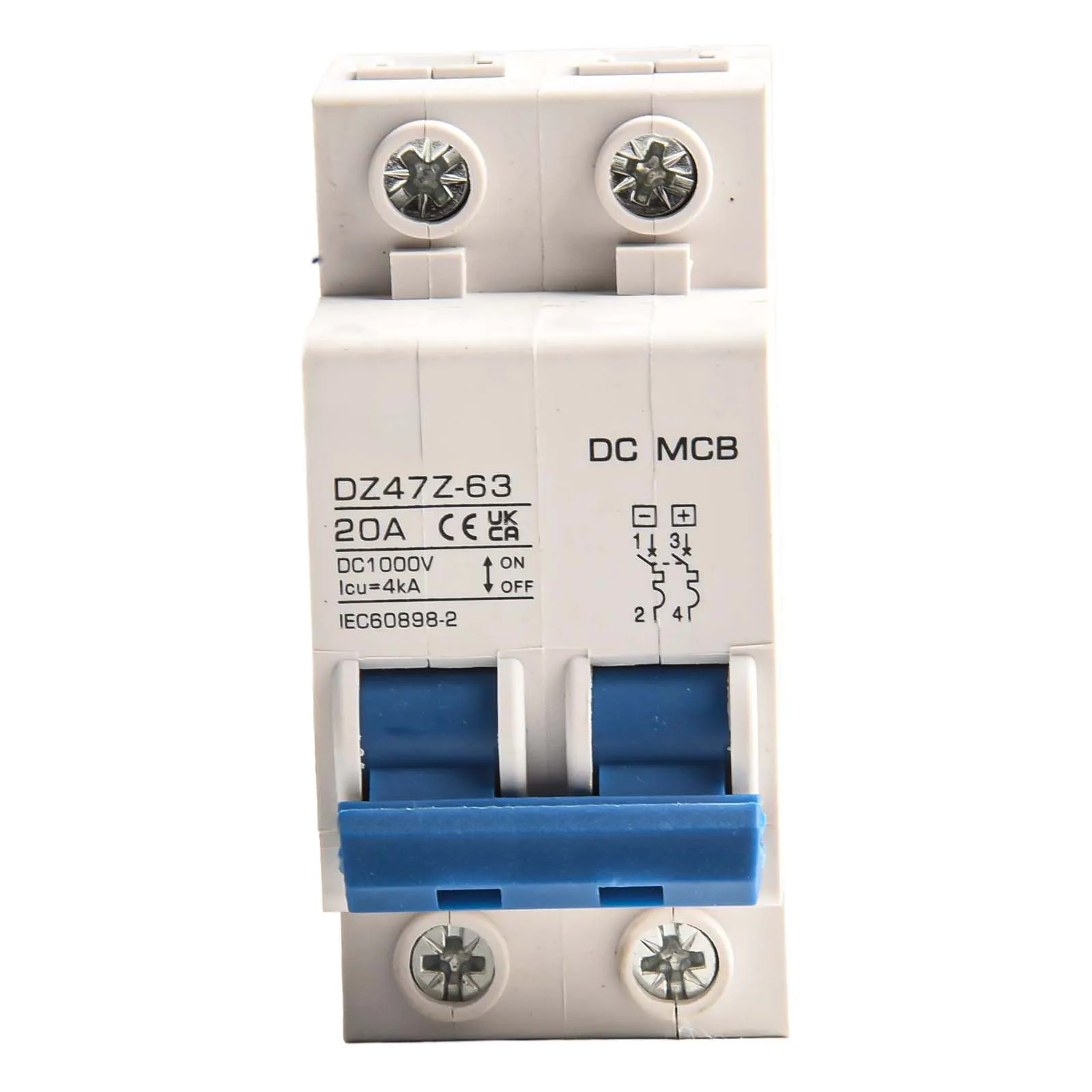

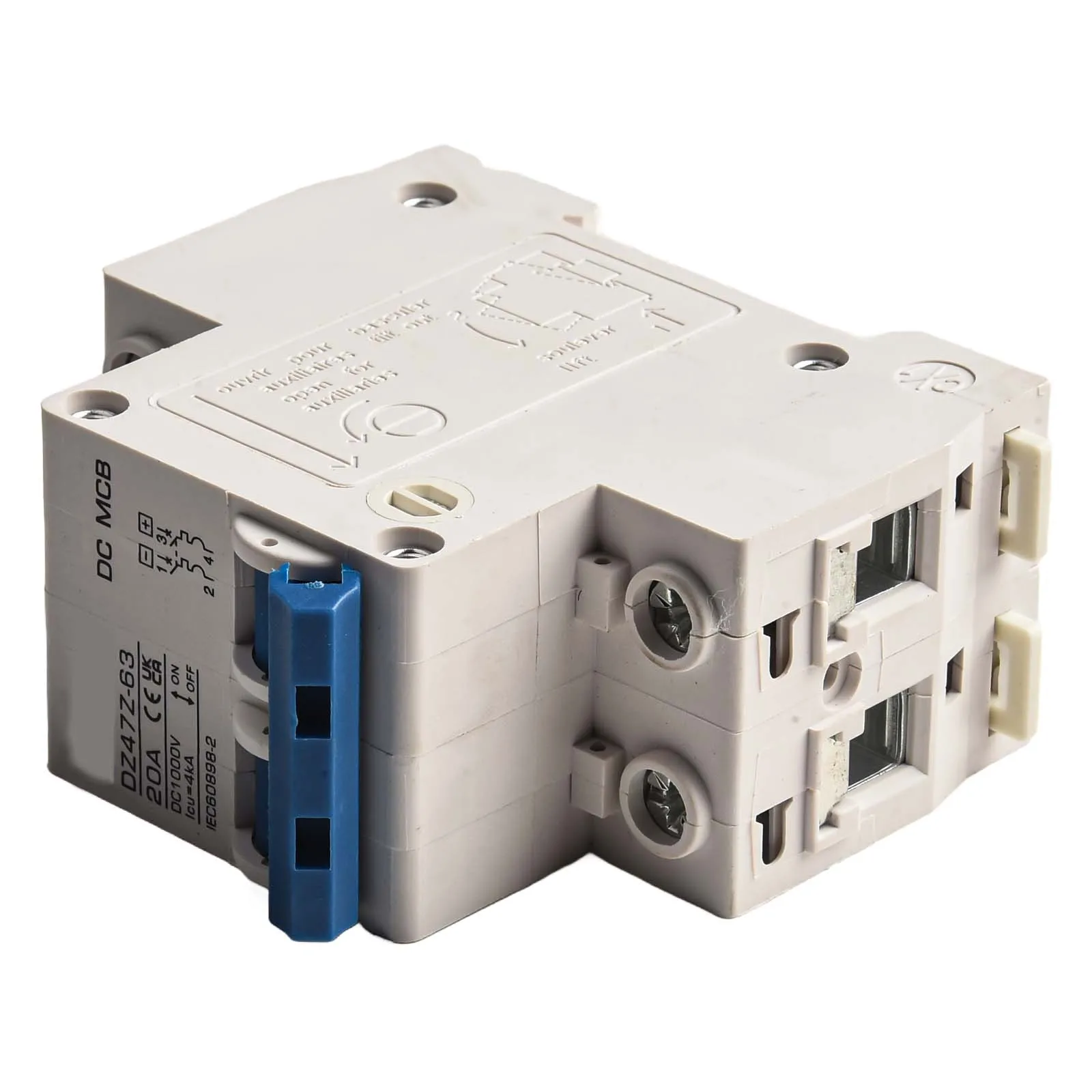

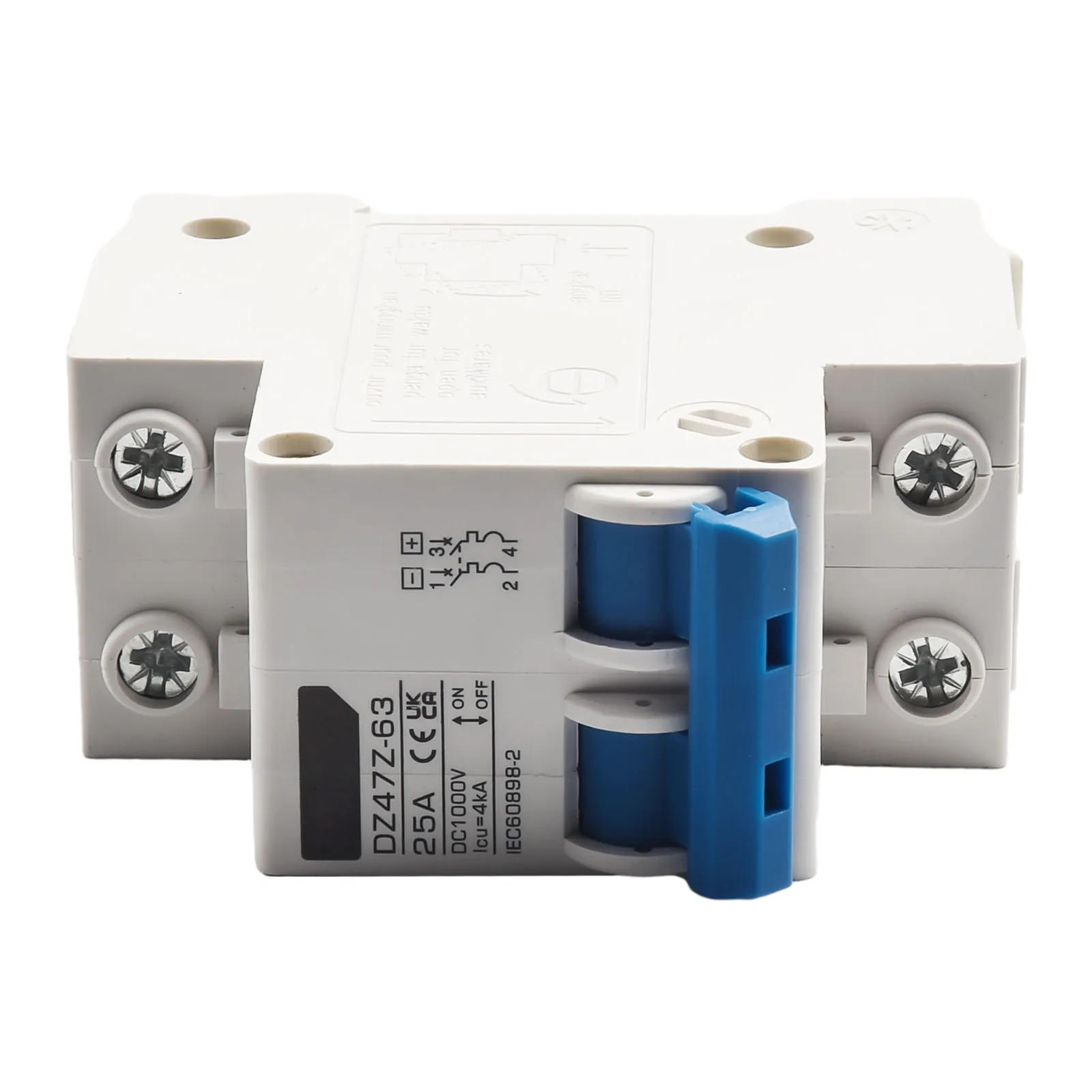

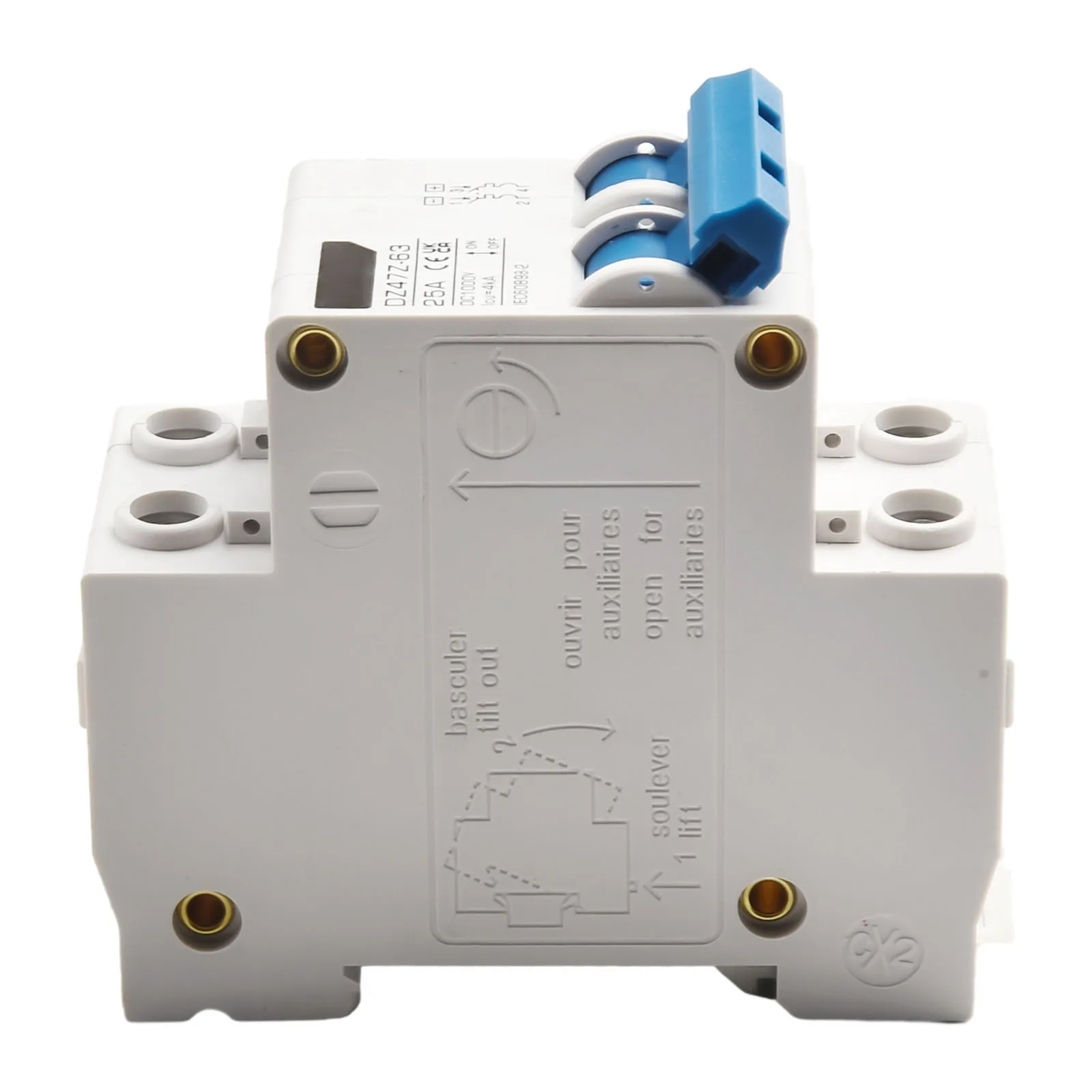

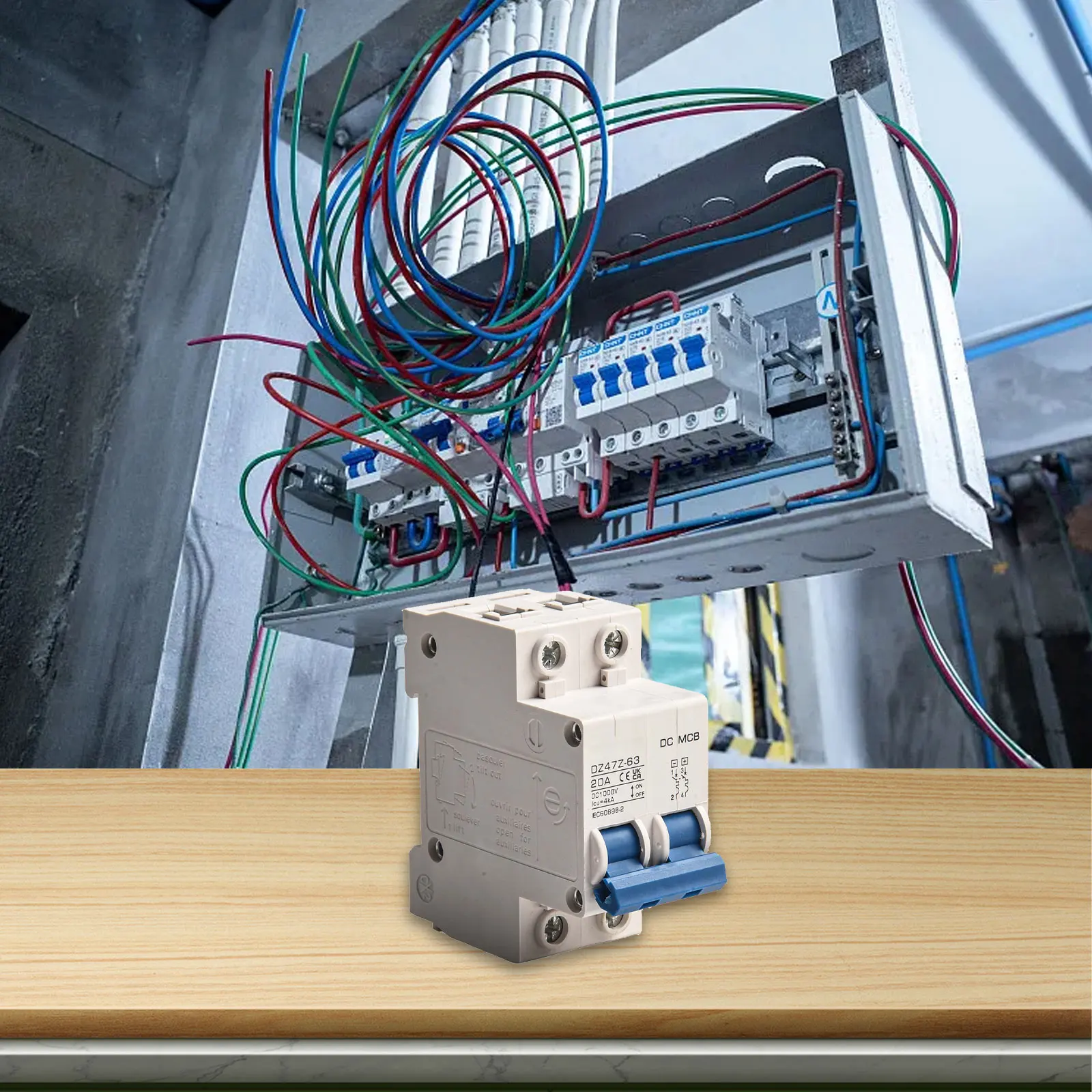

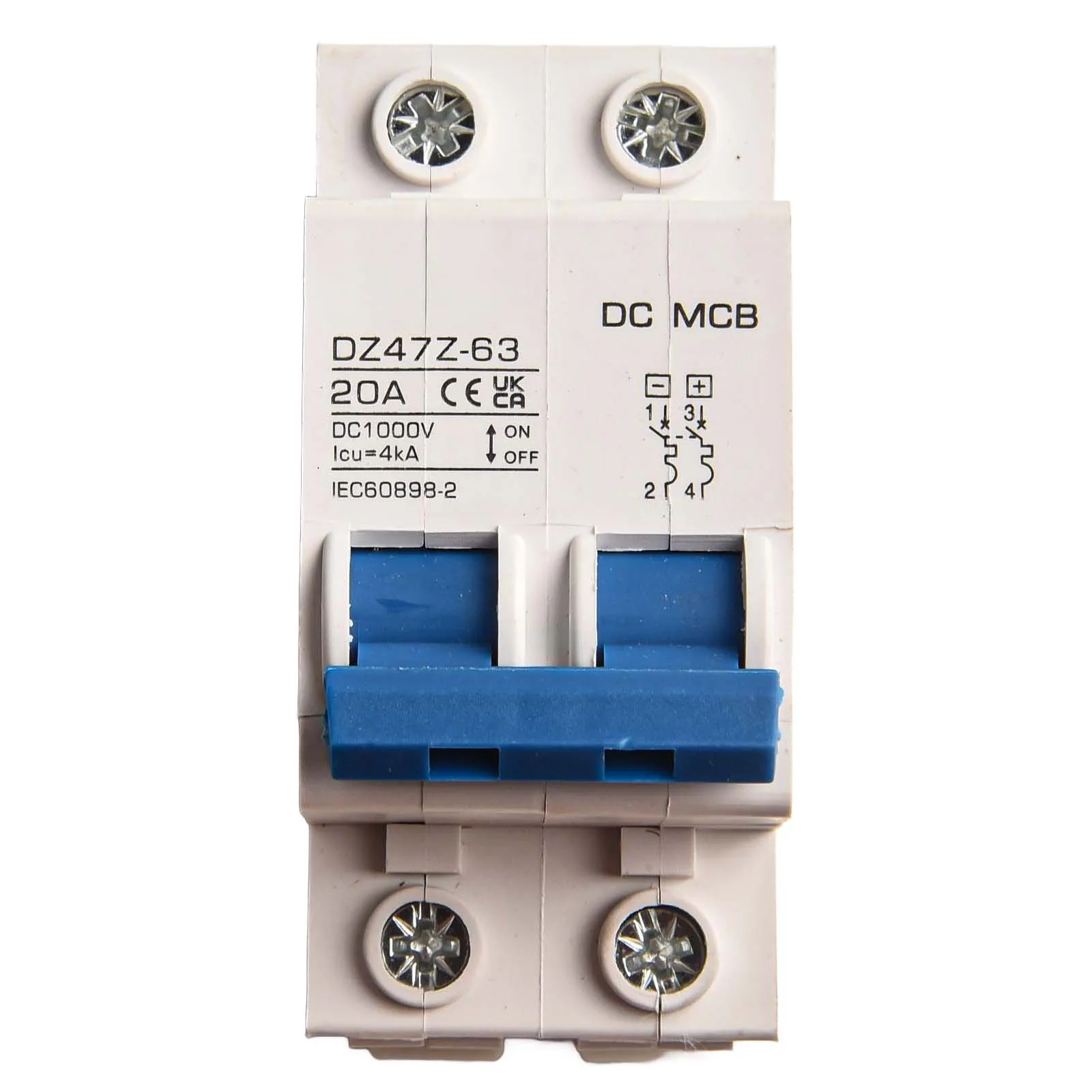

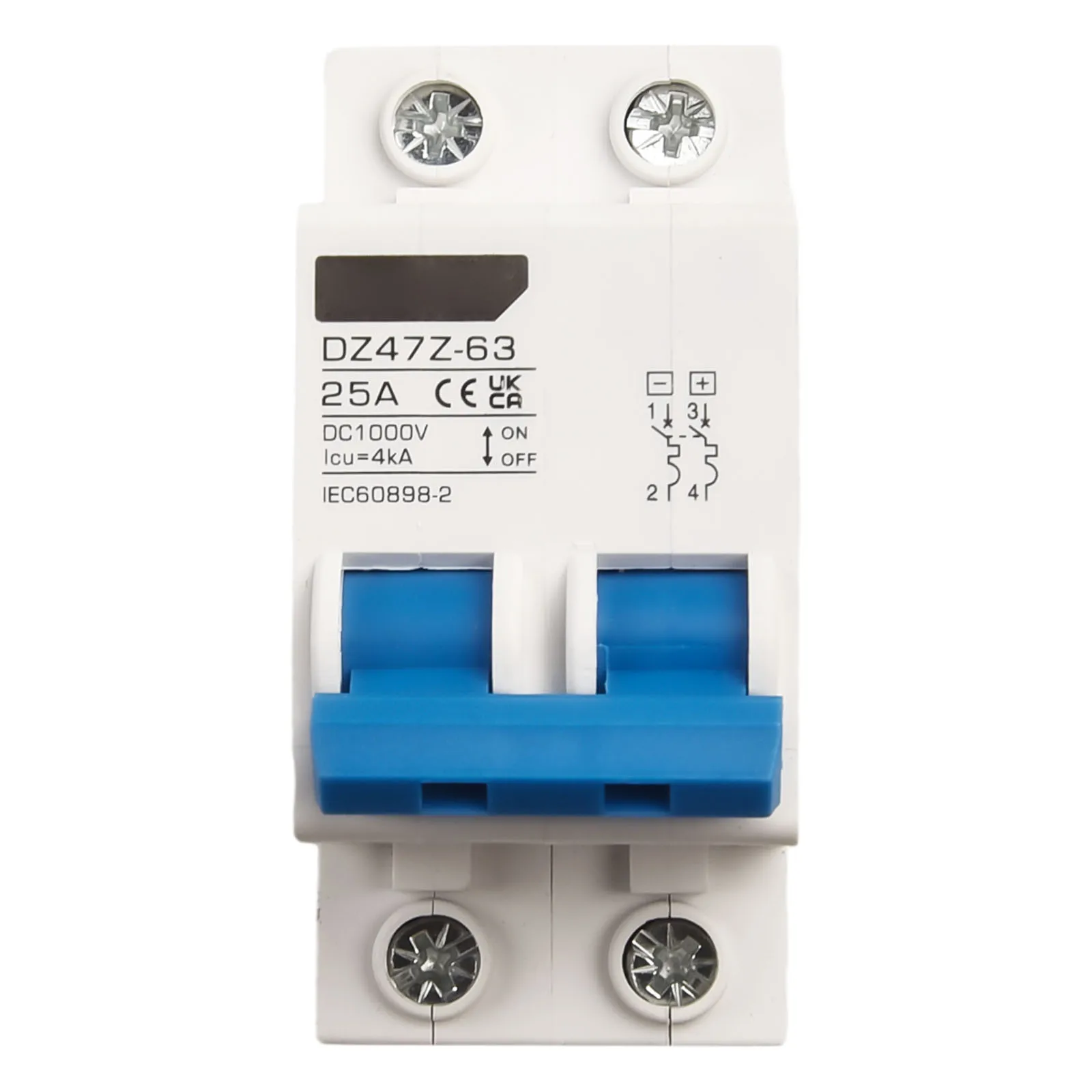

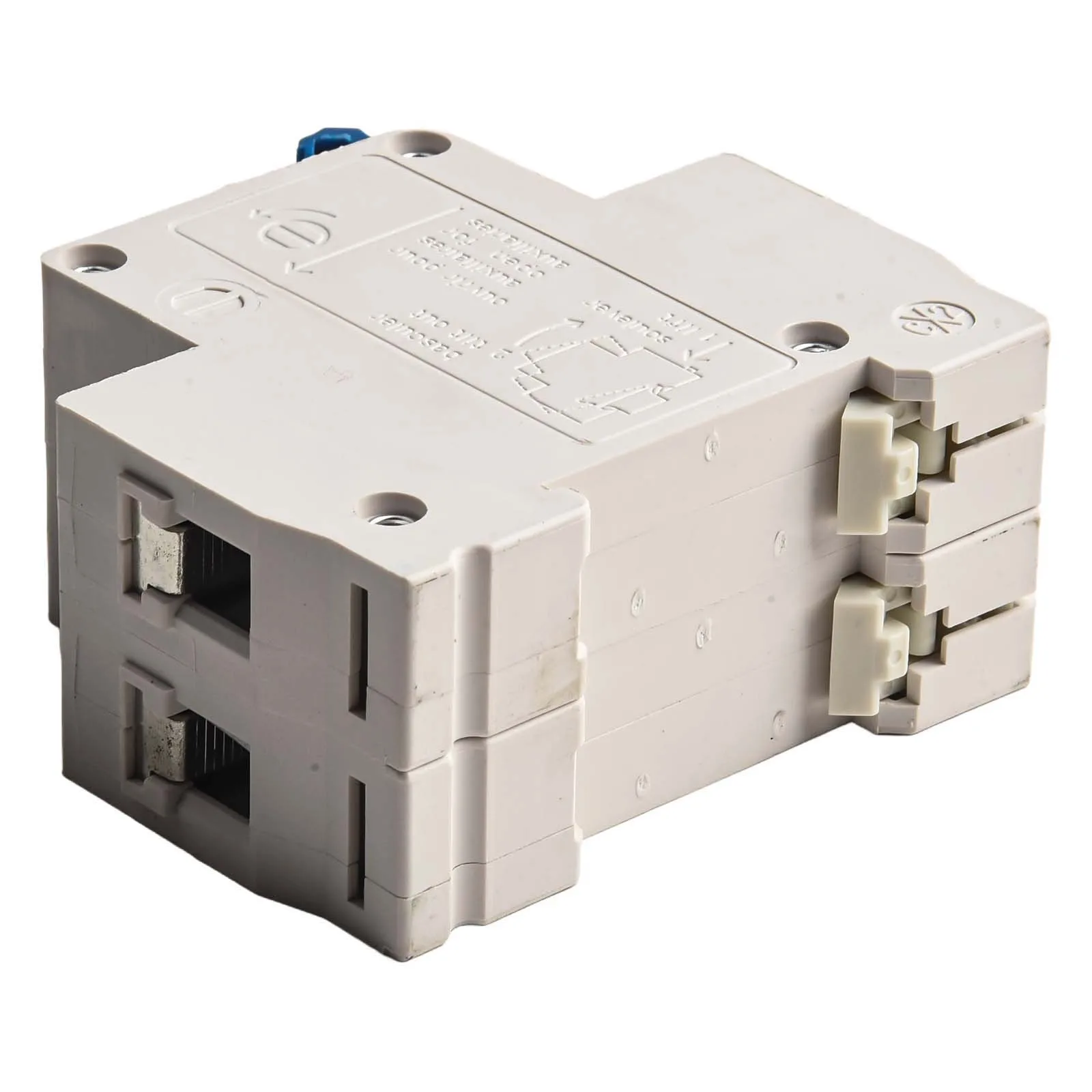

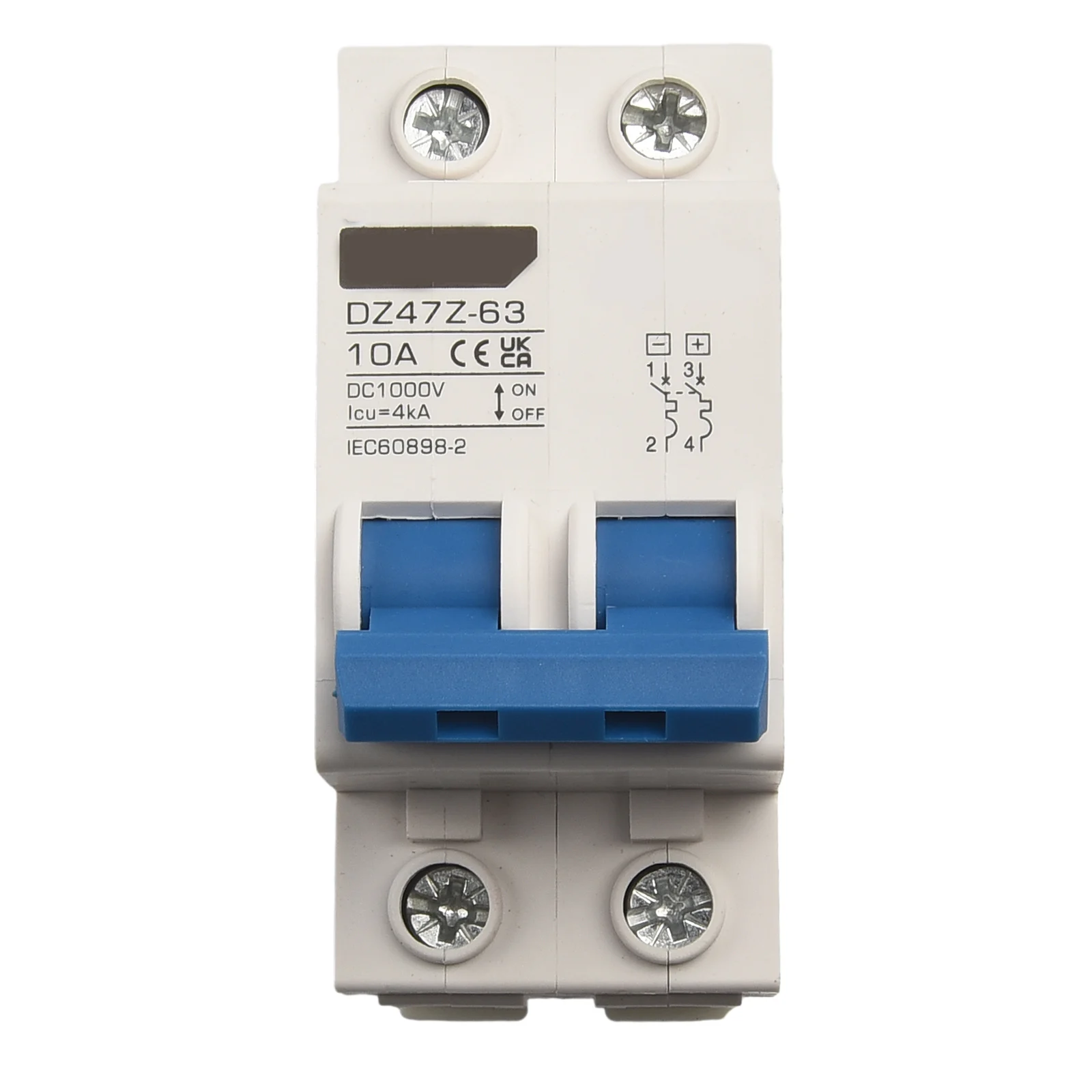

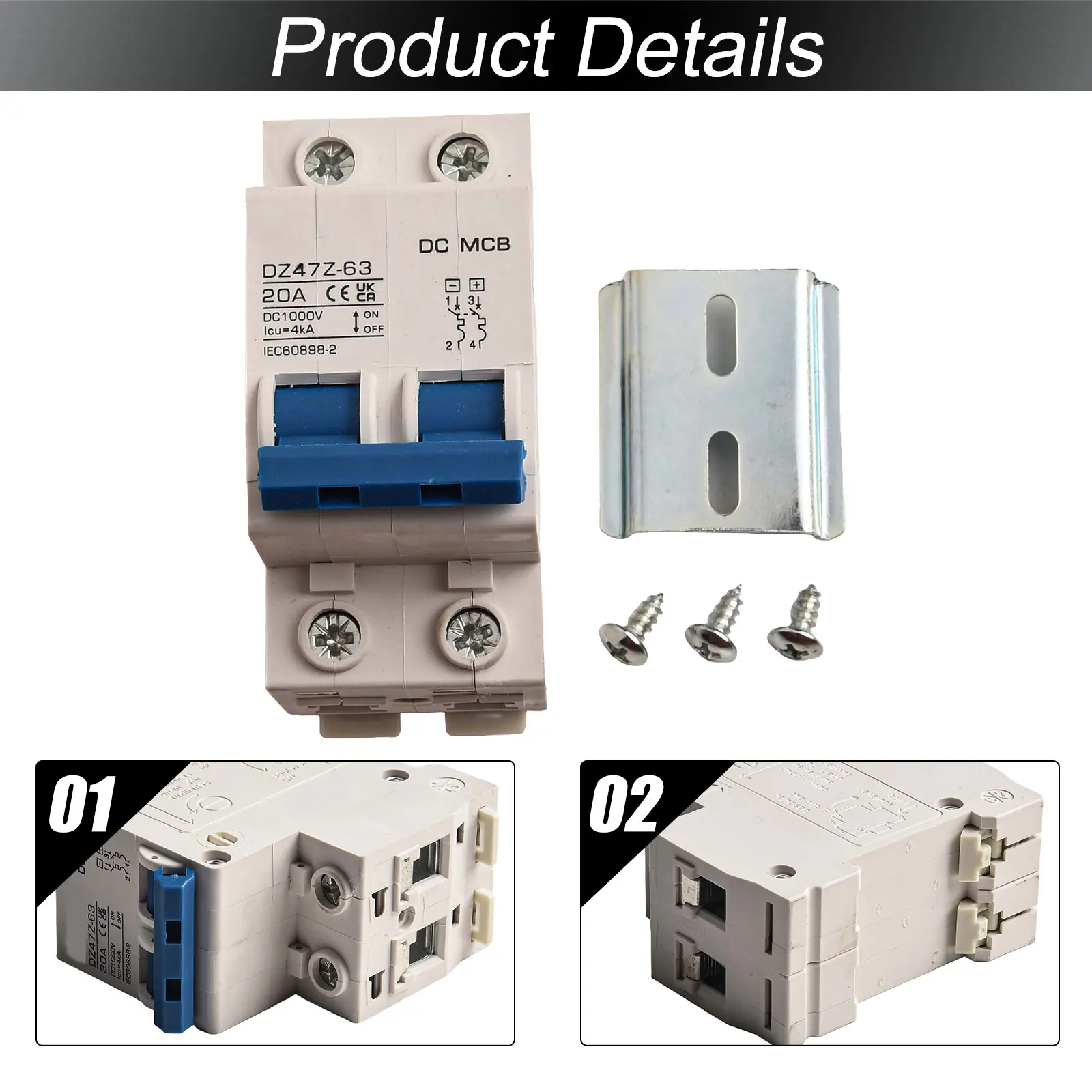

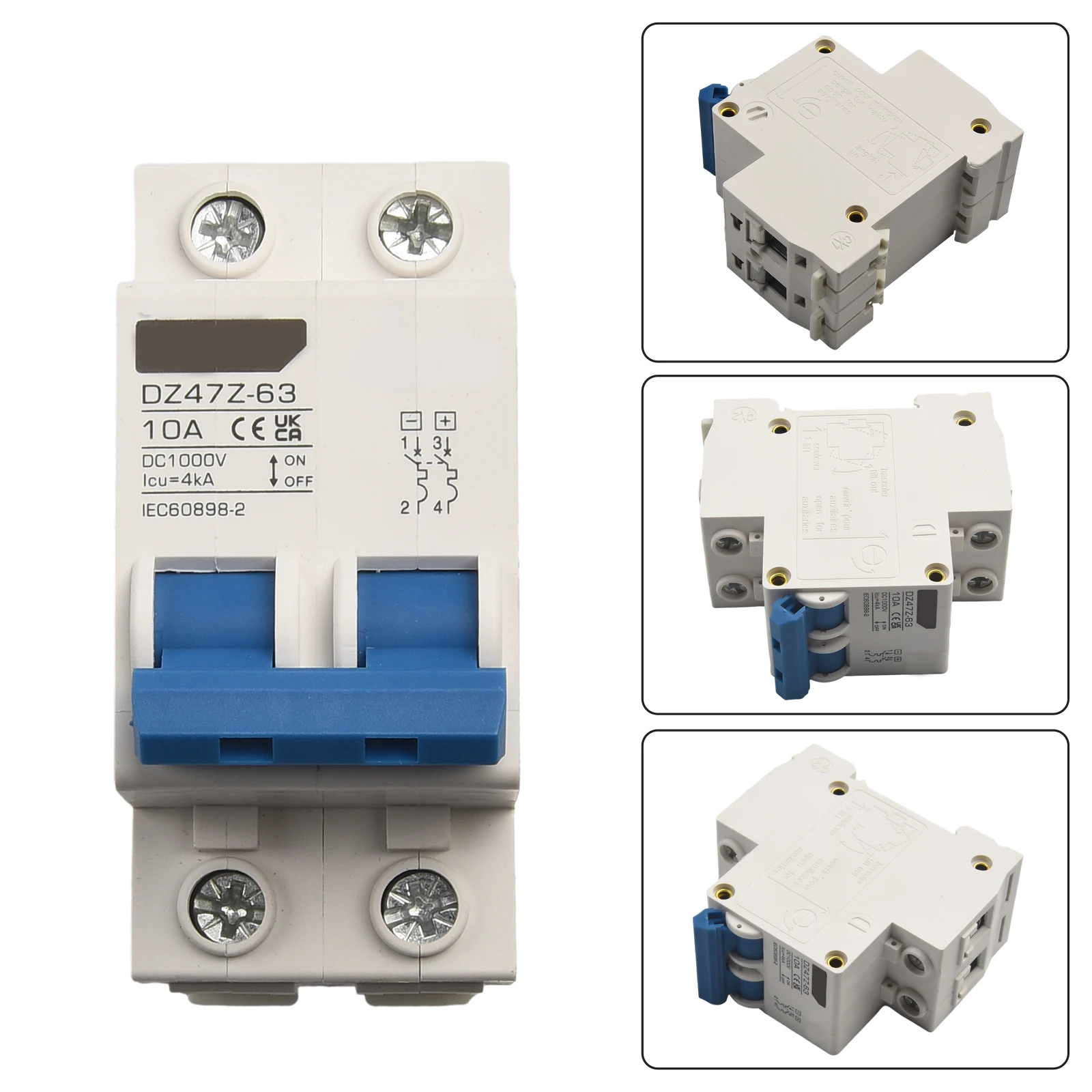

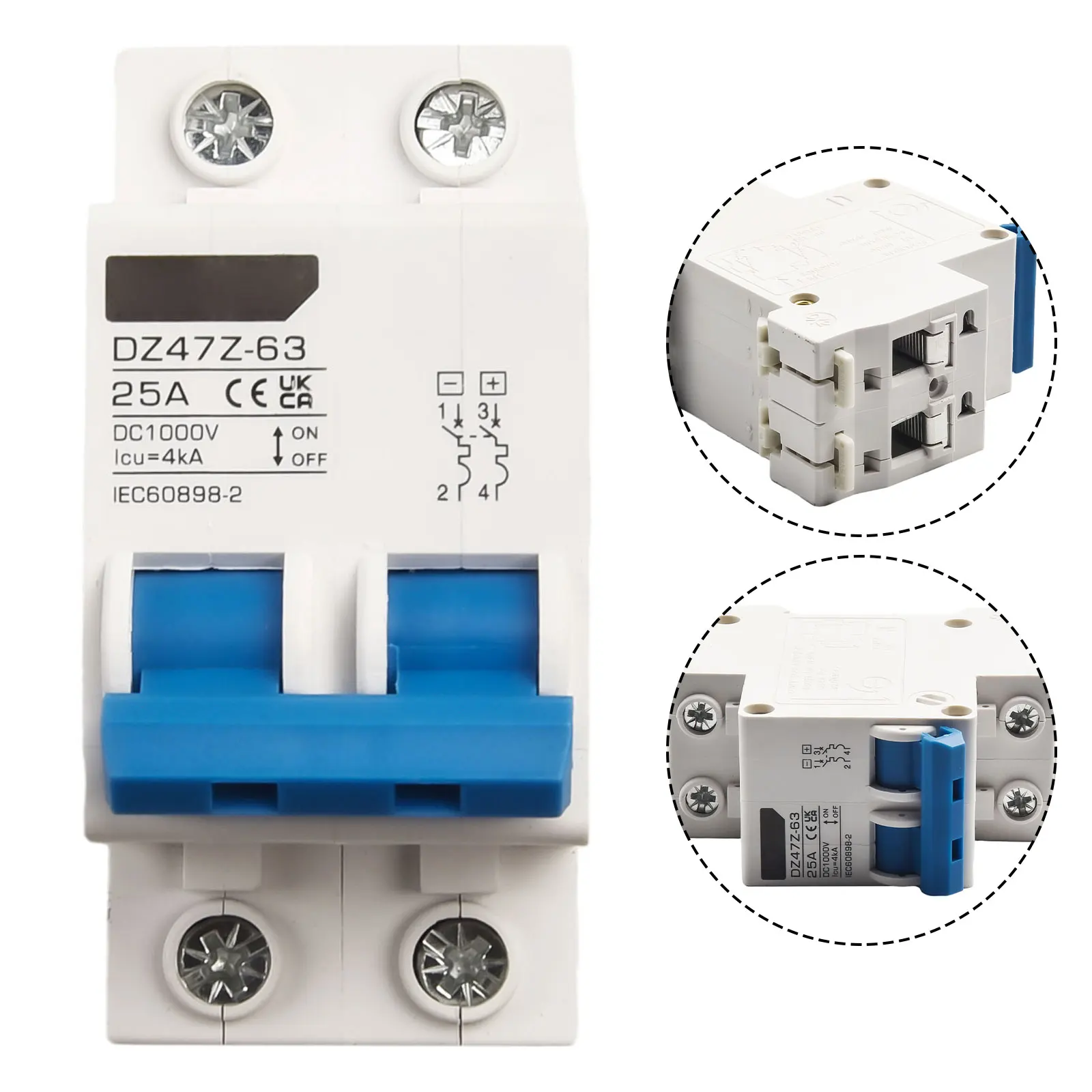

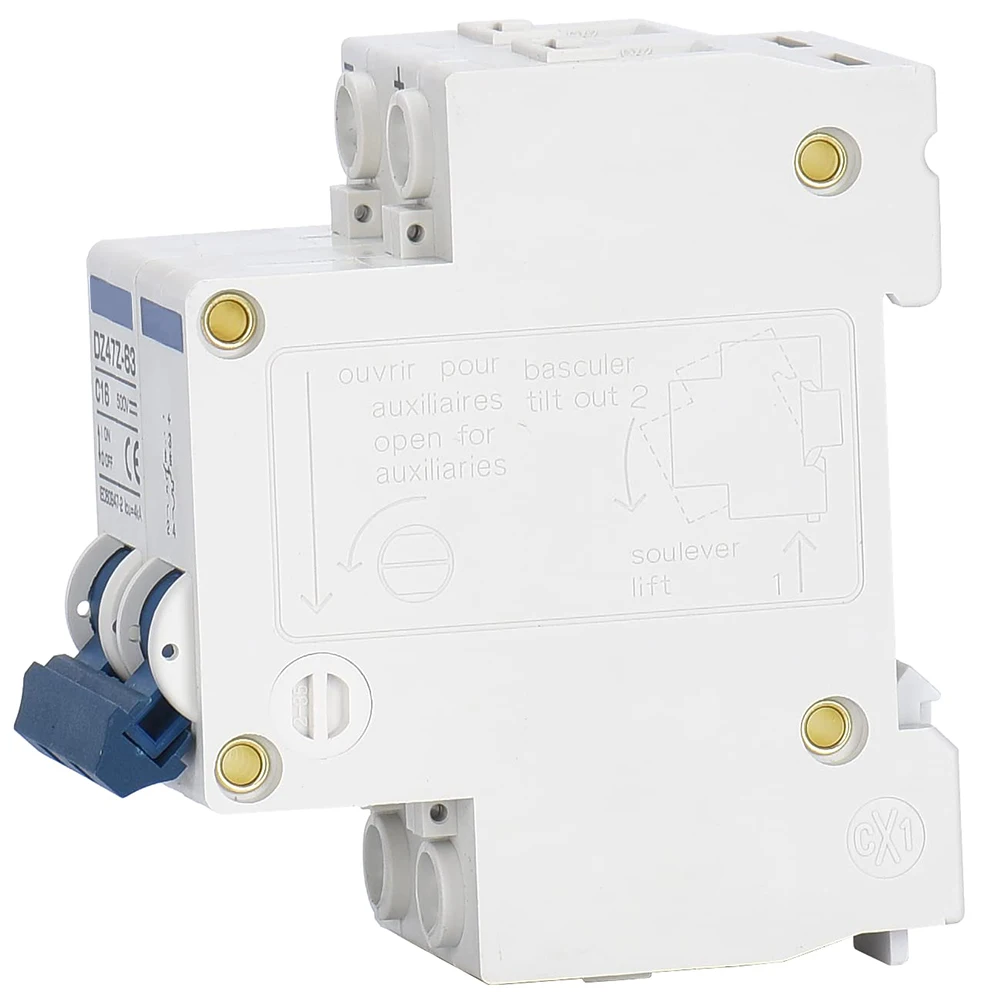

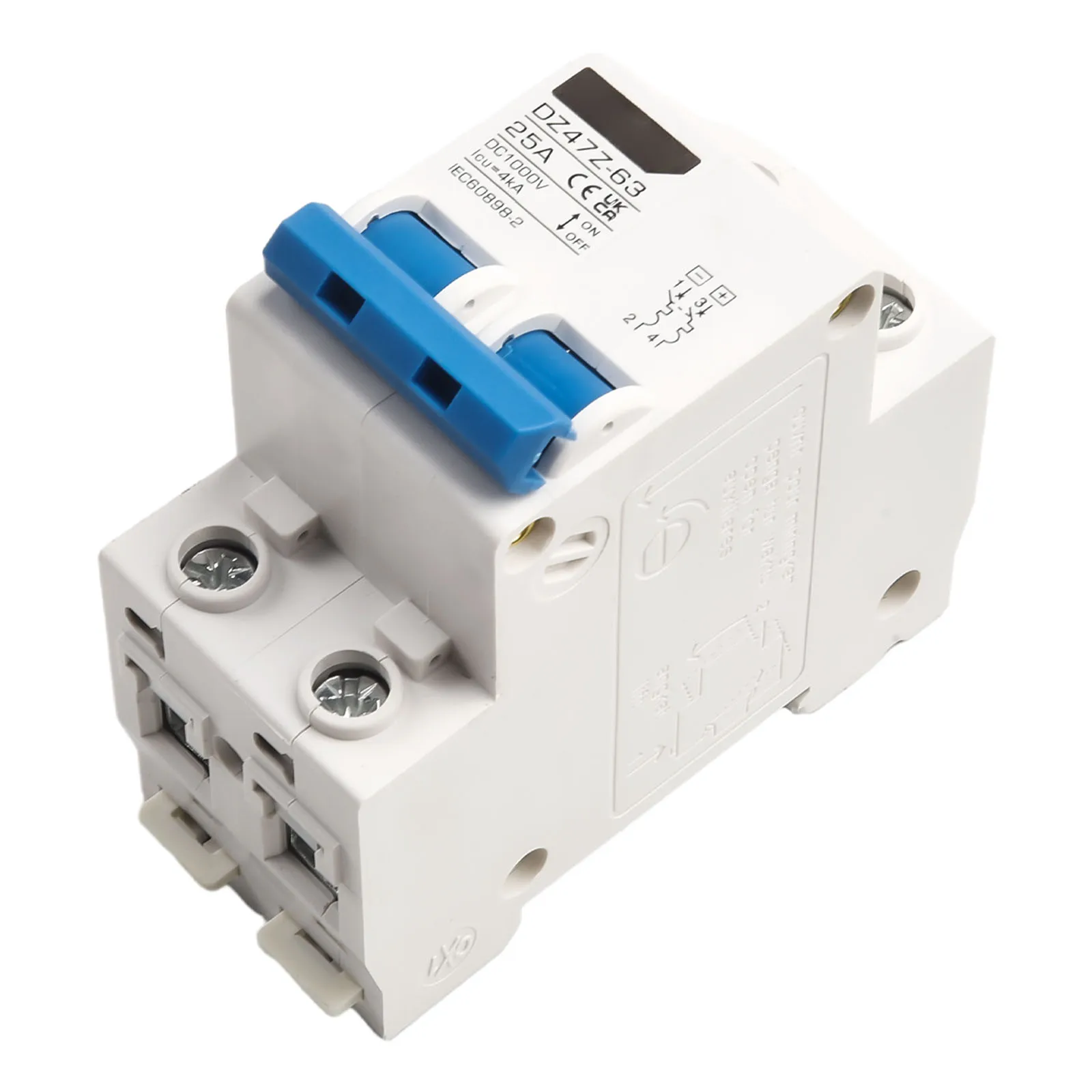

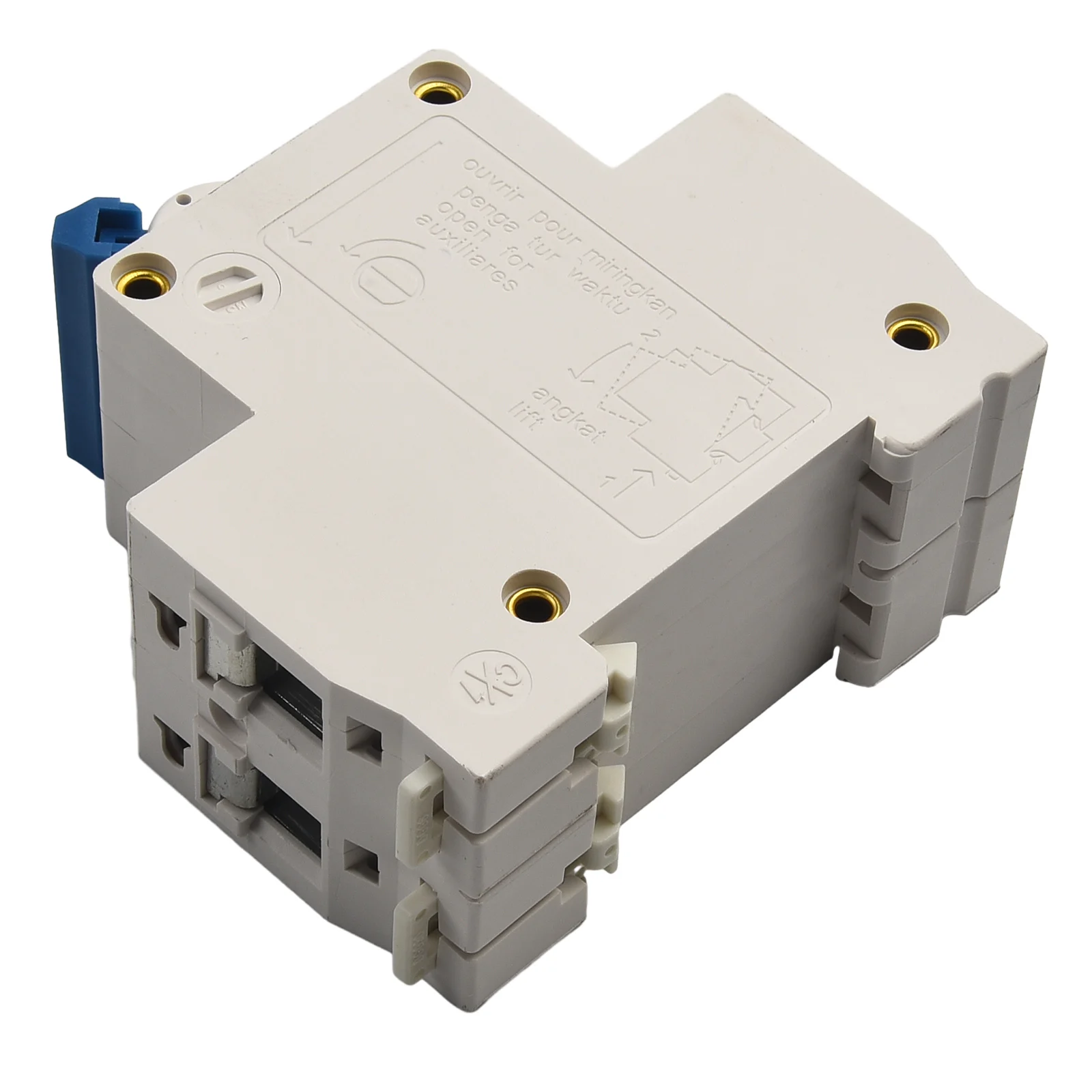

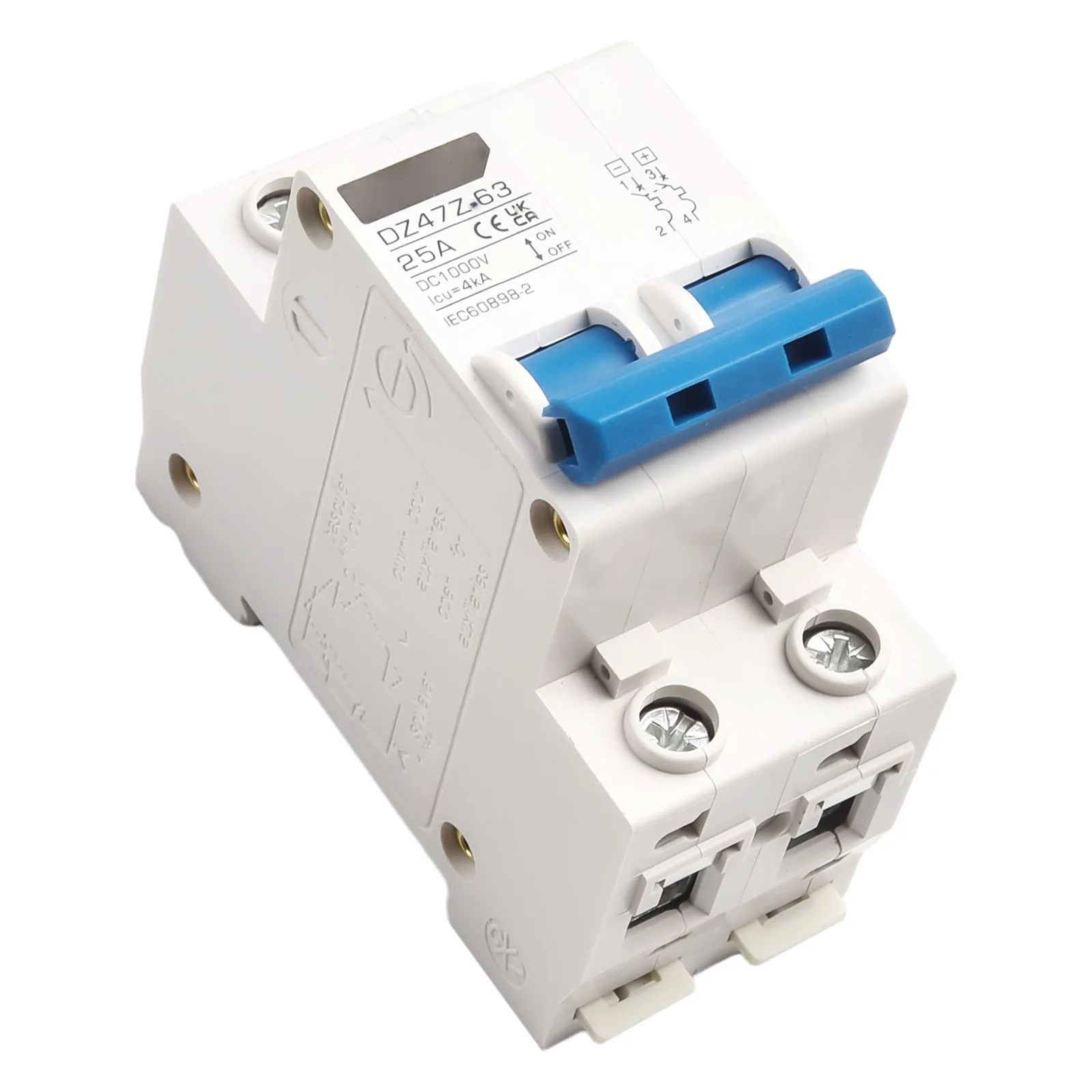

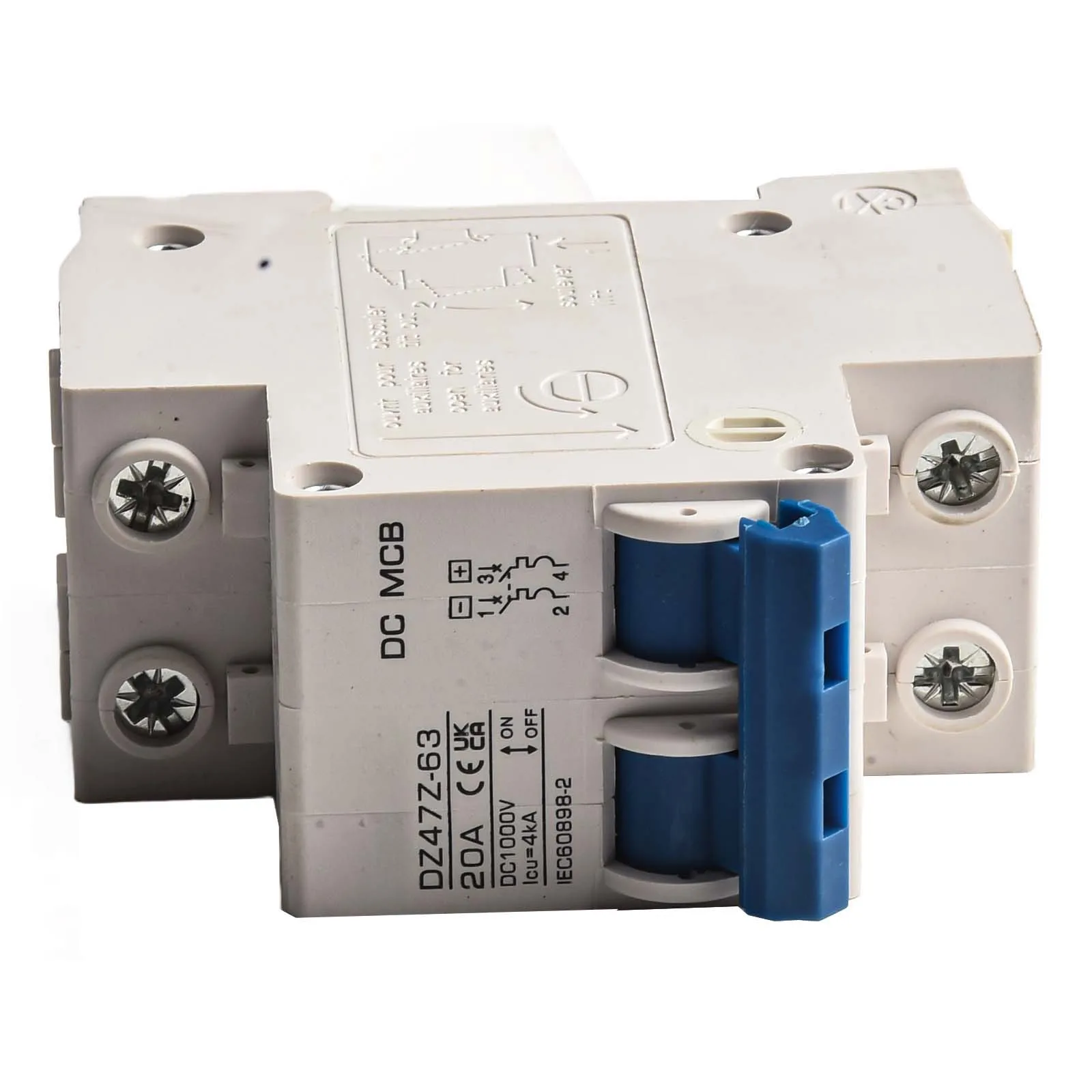

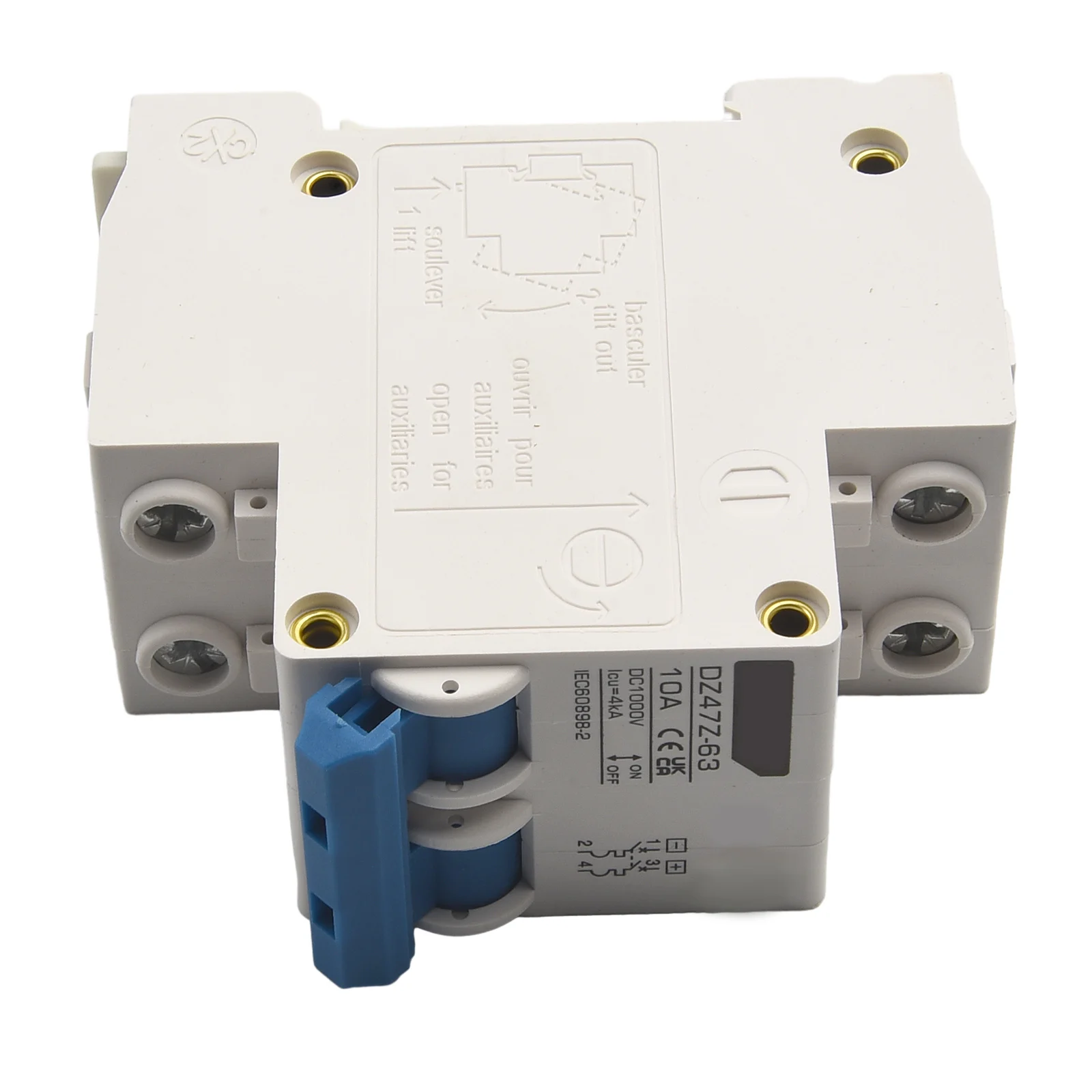

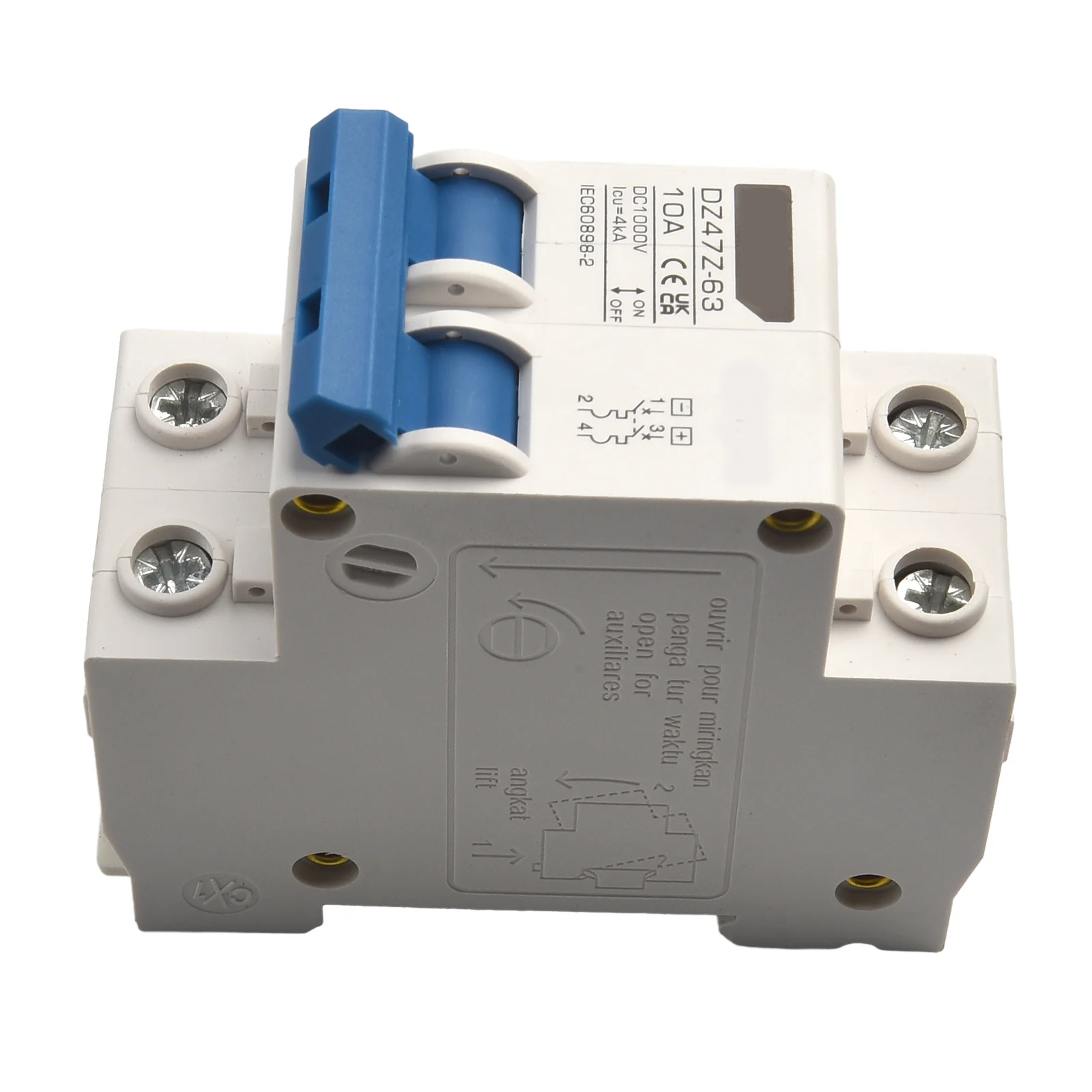

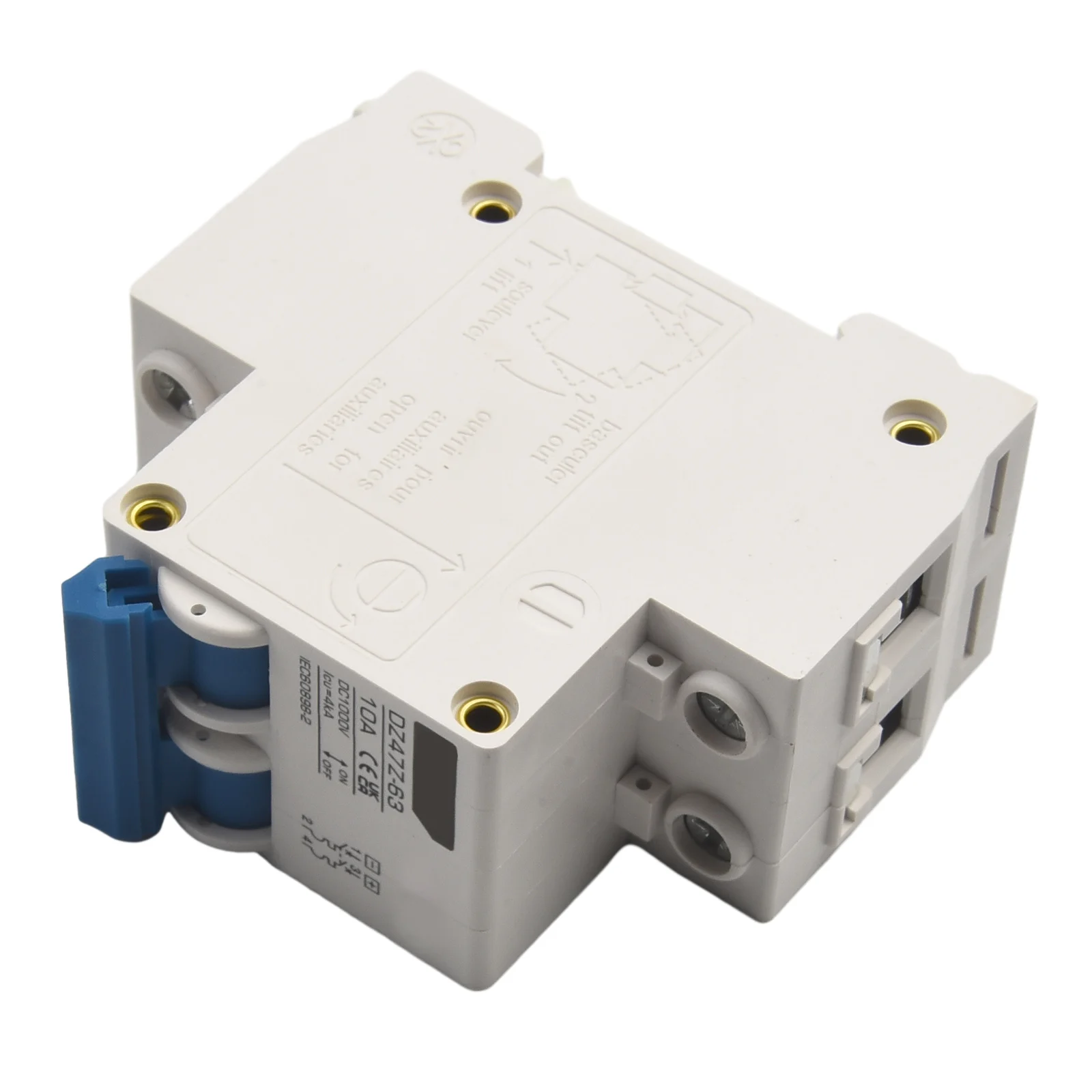

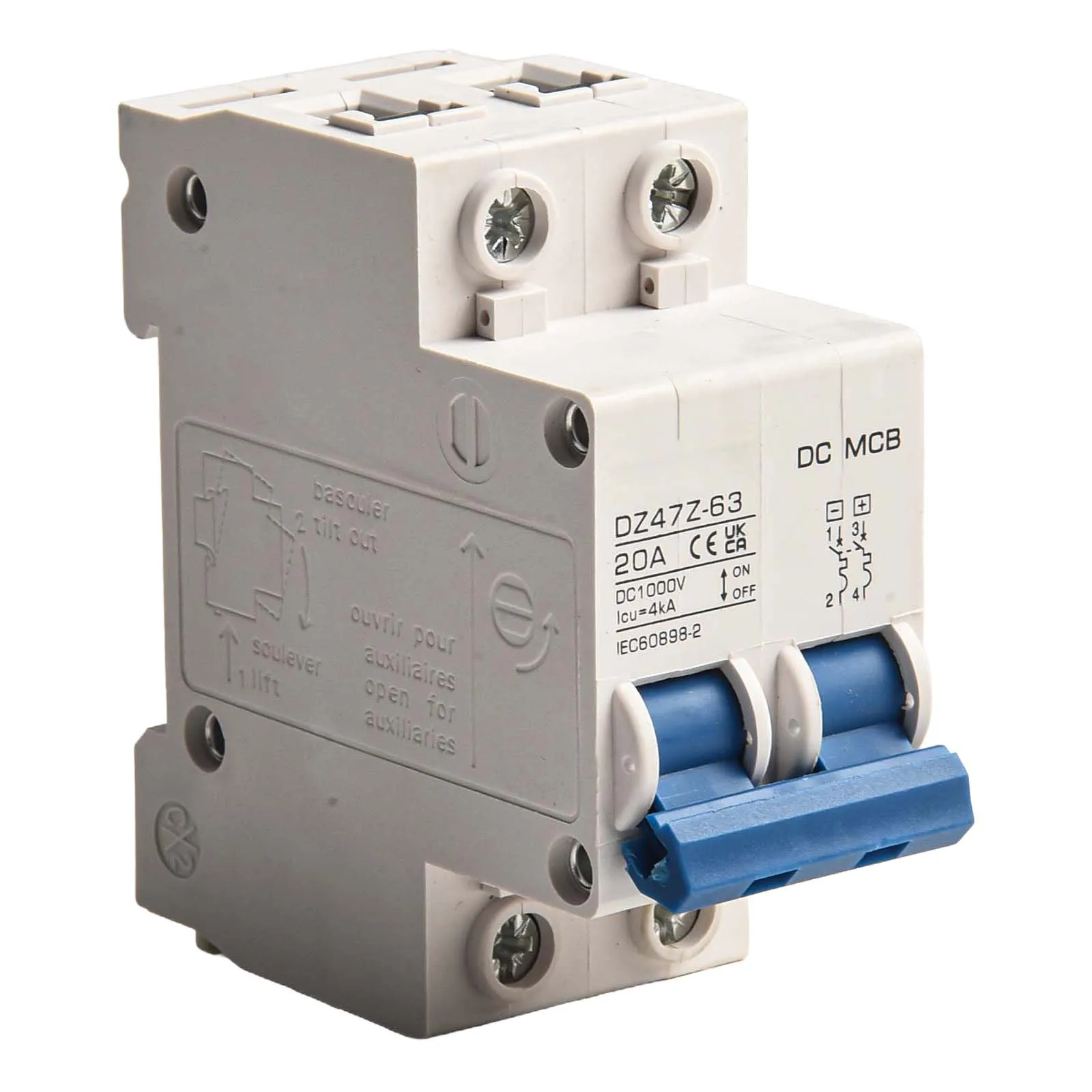

DC Miniature Circuit Breaker 2 Pole 1000V 32 Amp Isolator DC Disnnect Switch Home Improvement Solar Replacement Accessories

Features:
* New and high quality
* Made of high-quality materials,

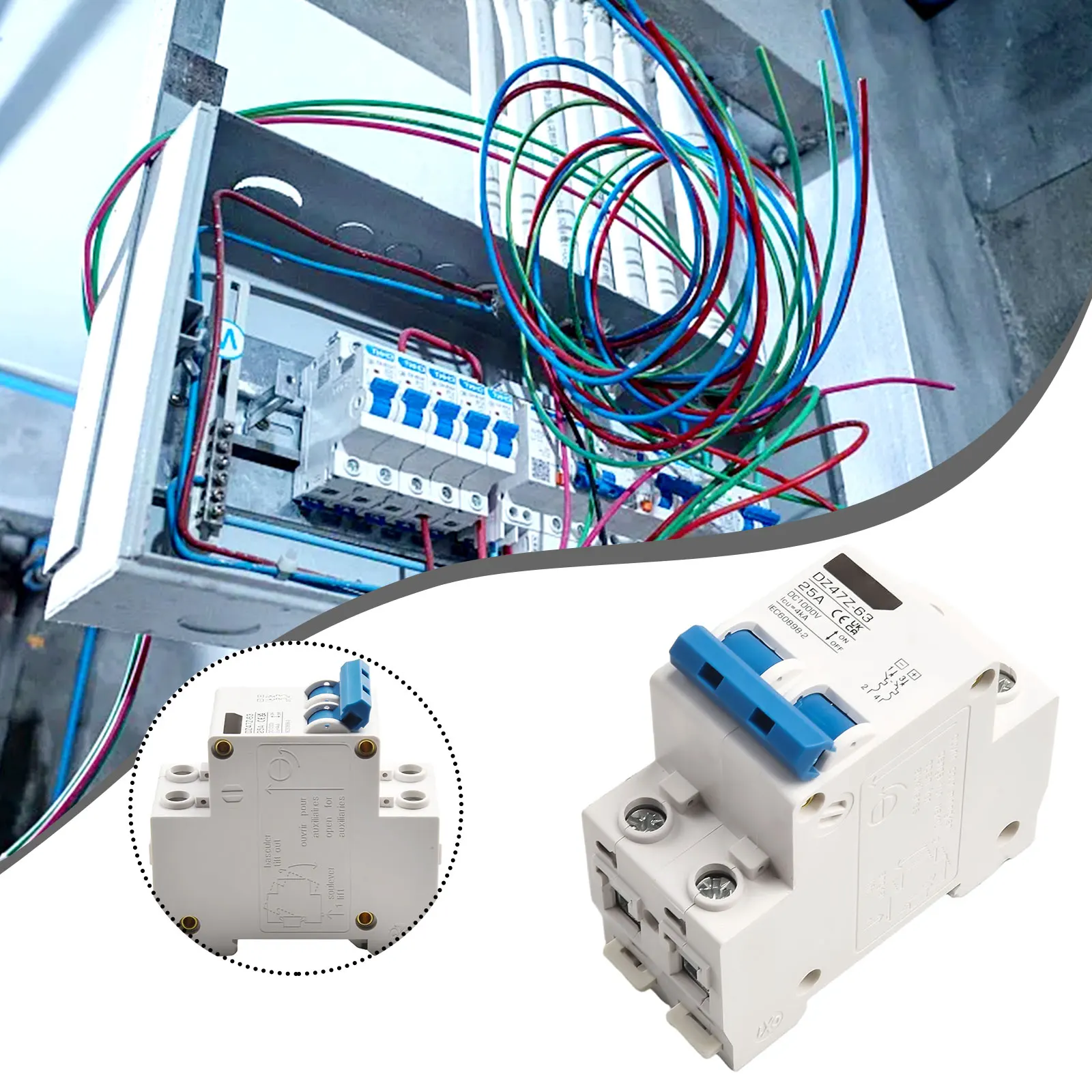

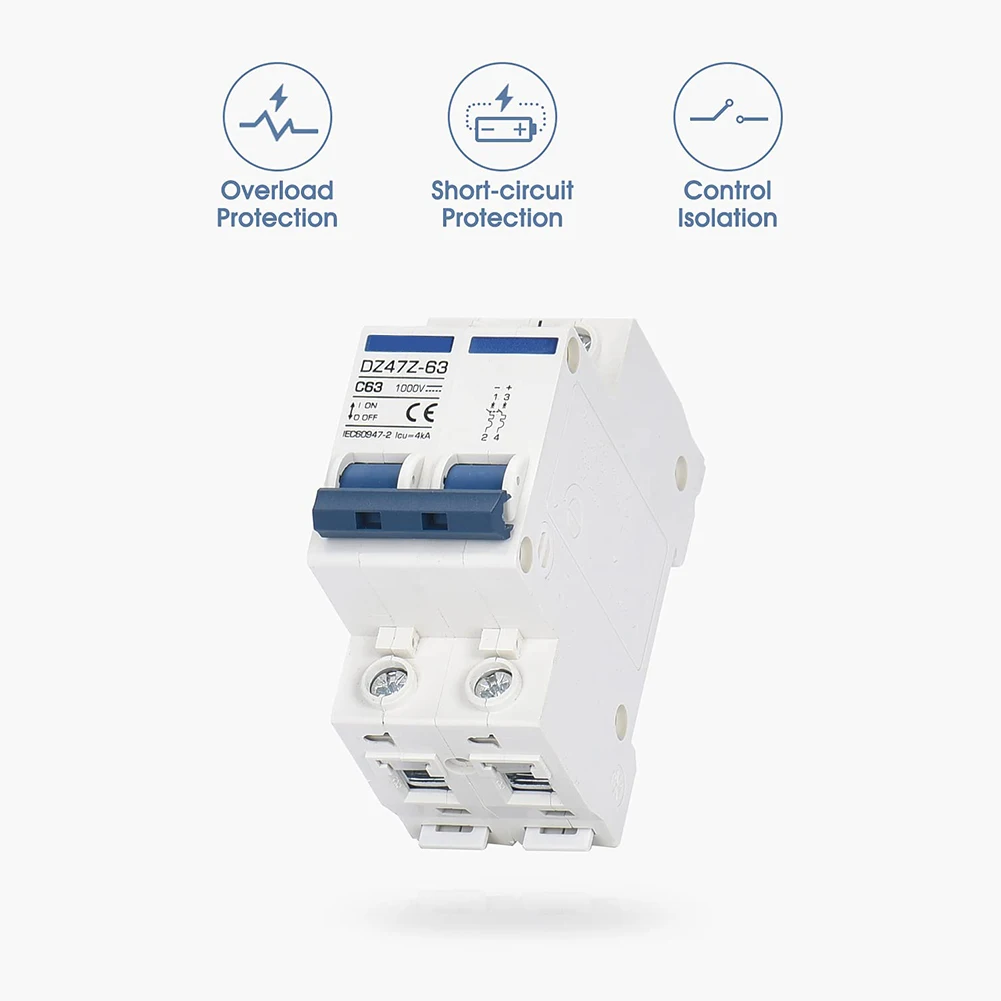

* It is used to protect power distribution facilities from overload and short circuit damage, and can also be used for ntrol and isolation.
* Fast trip. When the circuit is short-circuited, the electromagnetic trip  can immediately trip to protect the safety of the circuit.

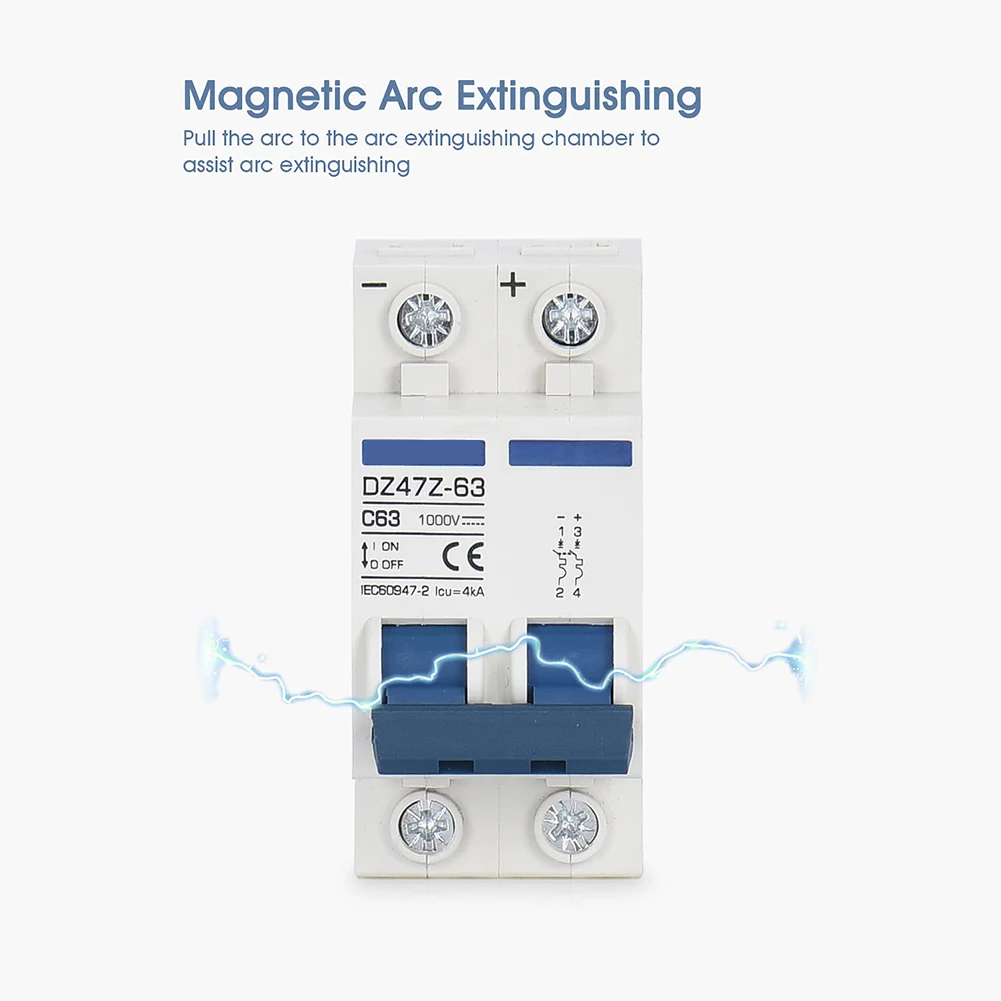

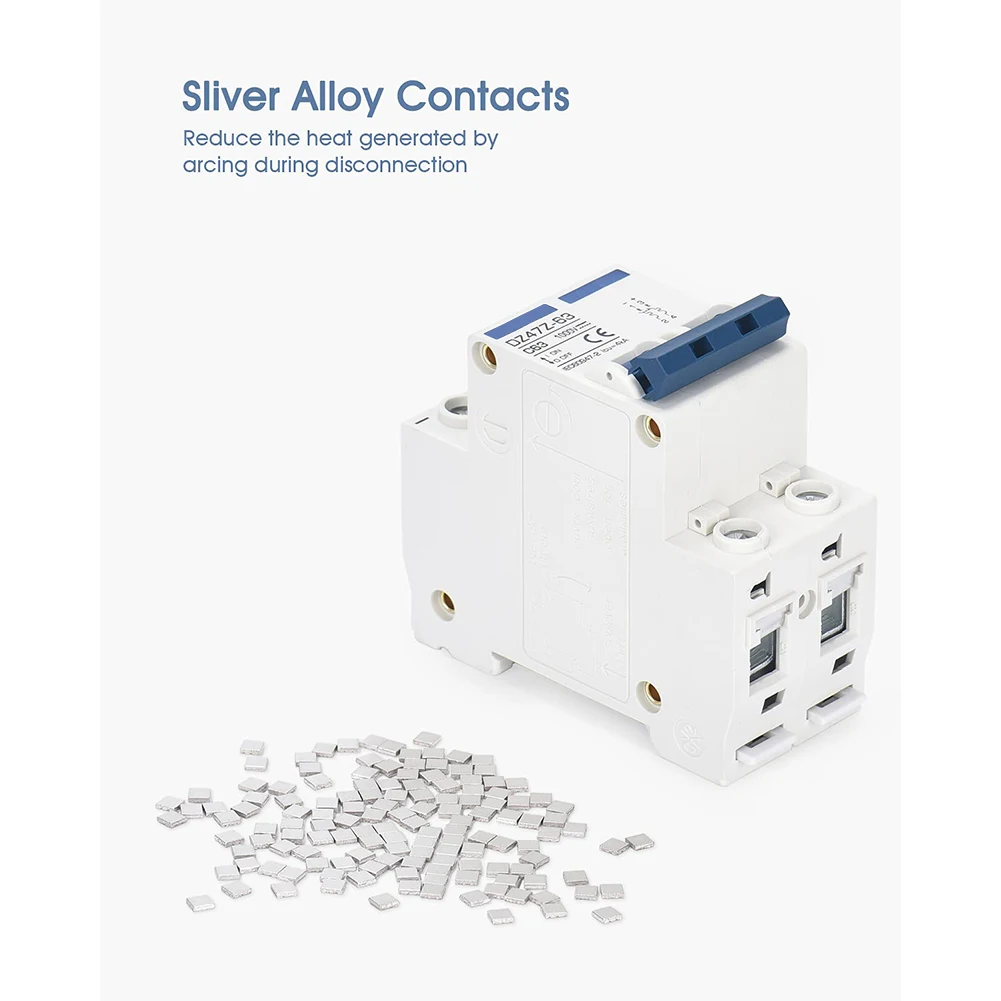

* Extinguishing the arc, DC extinguishing arc is more difficult than mmunicating. The DC miniature circuit breaker has a magnetic  used to assist arc extinguishing.

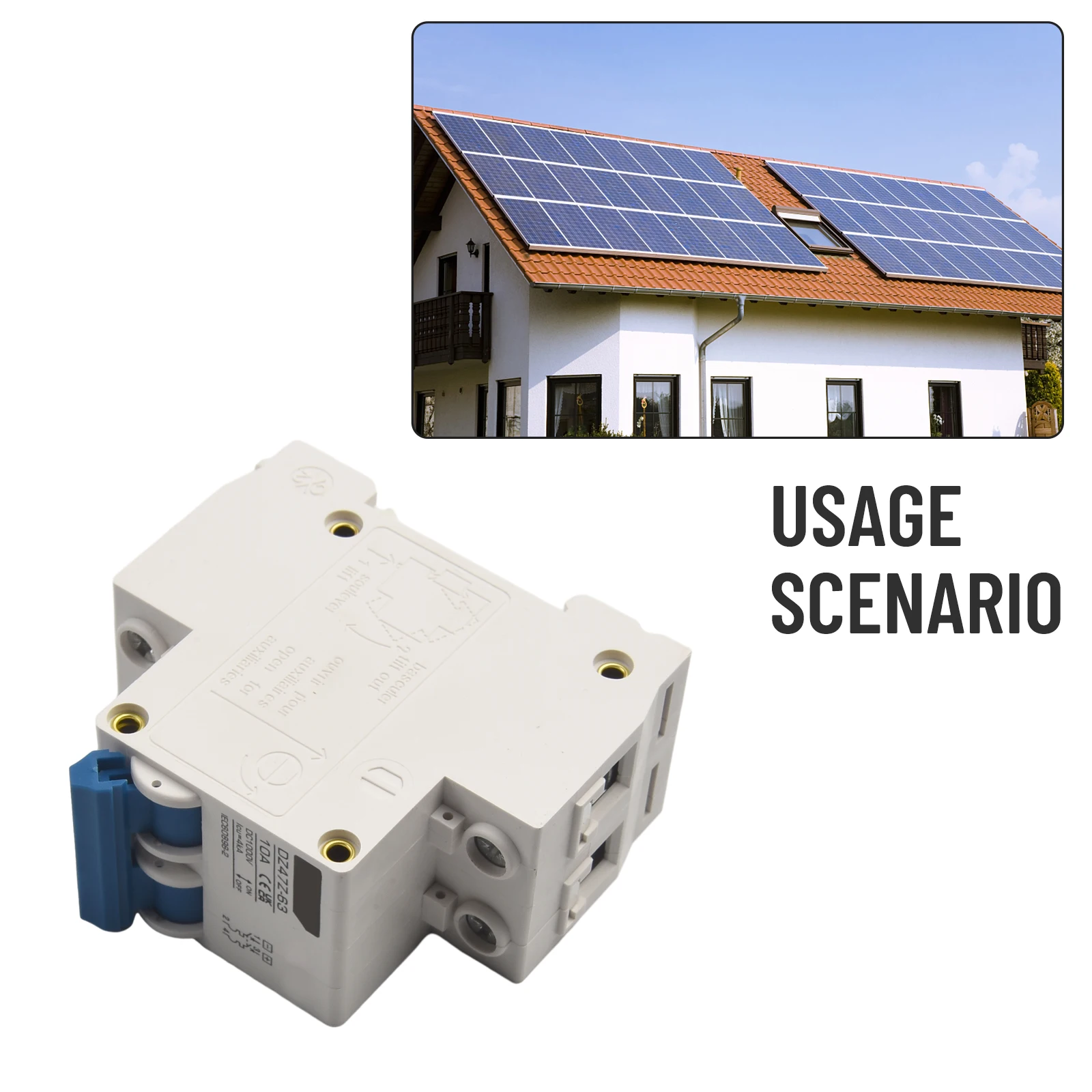

* Suitable for DC power s, offshore power s, solar photovoltaic s or other DC s.
* Installation, screw clamp wire, 35mm DIN rail installation.

Specifications:
Model: DC MCB
Rated operating voltage: 1000V DC

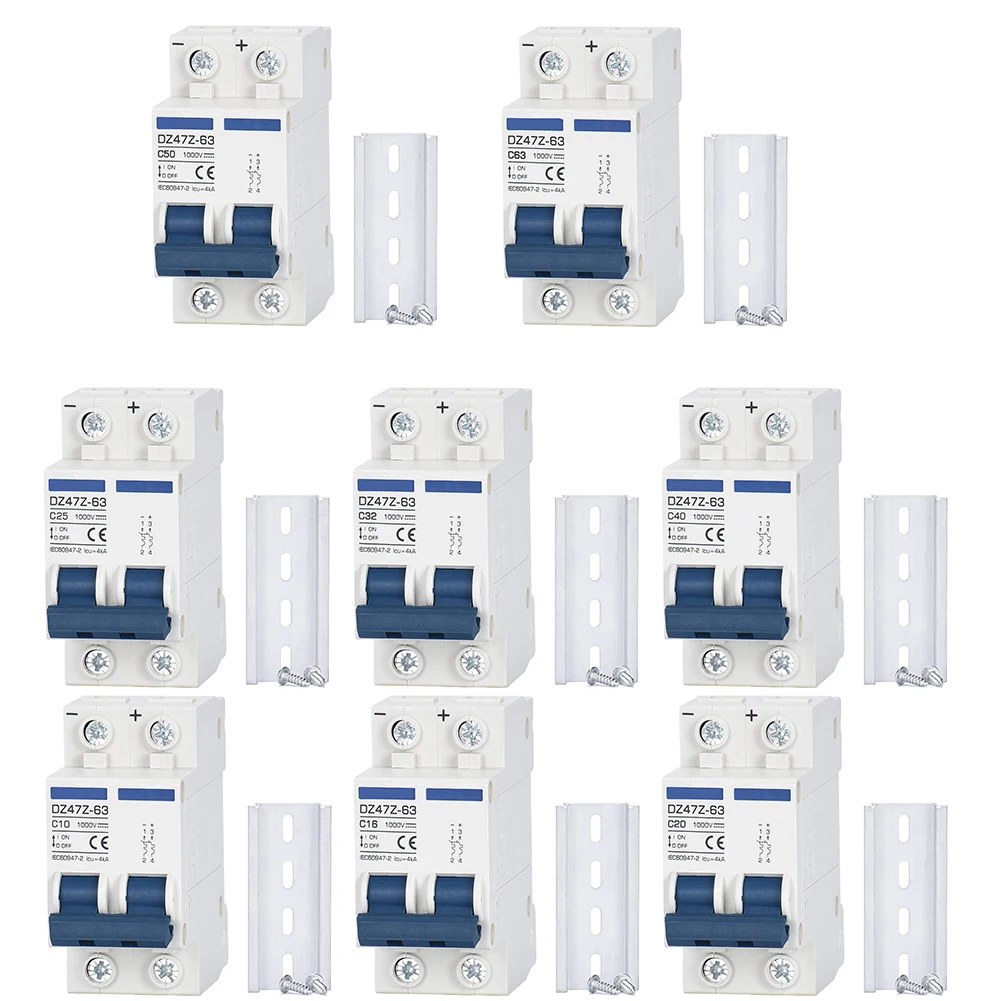

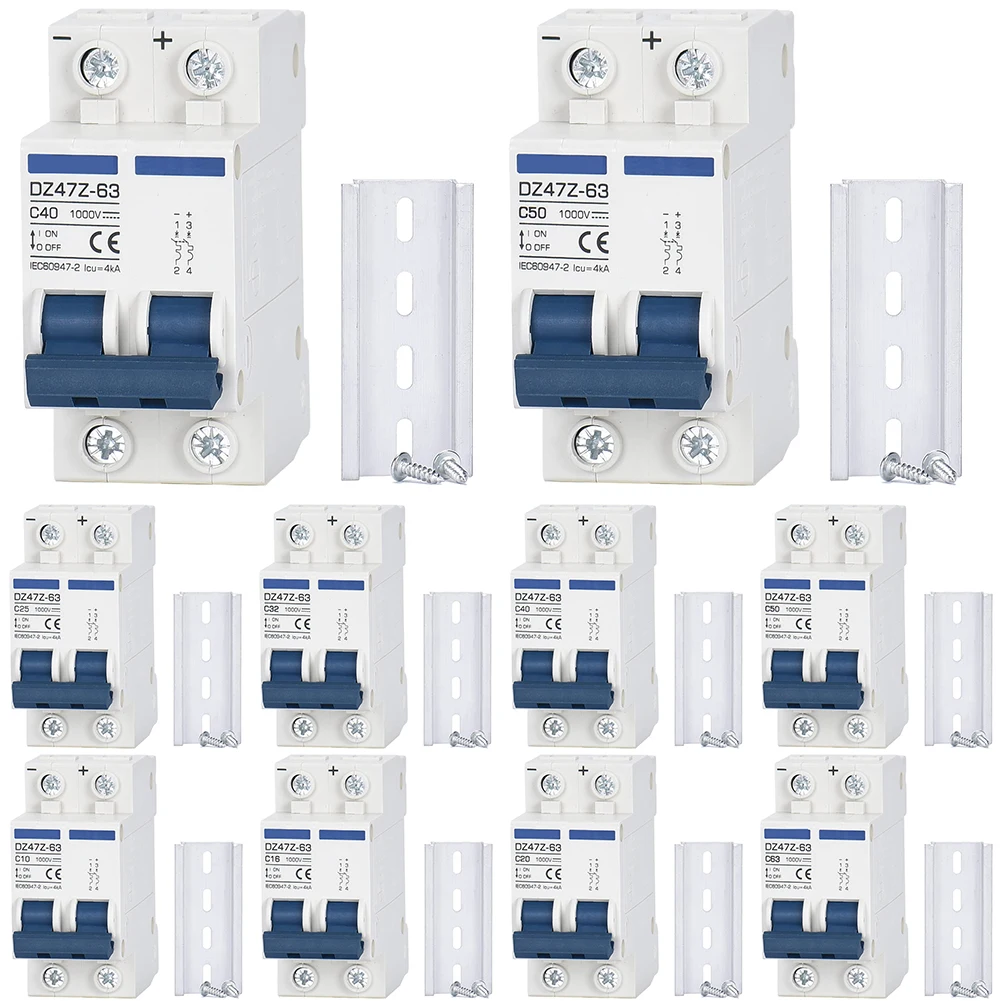

Rated current: 10 A / 16 A / 20 A / 25 A / 32 A / 40 A / 50 A / 63 A (optional)
Two levels: 2 P
Release technology: thermomagnetism
Curve  de: C
Breaking capacity: 4 kA Ics=Icu
Uimp: 4kV
Mechanical durability: 10,000 cycles
Electricity life: 2,000 cycles
Opera
Ting temperature: -13°F (-25°C) ~ 140°F (60°C)
Mounting bracket: 35mm DIN rail
Tightening torque: 2.5 N.m
Standard IEC60898-2

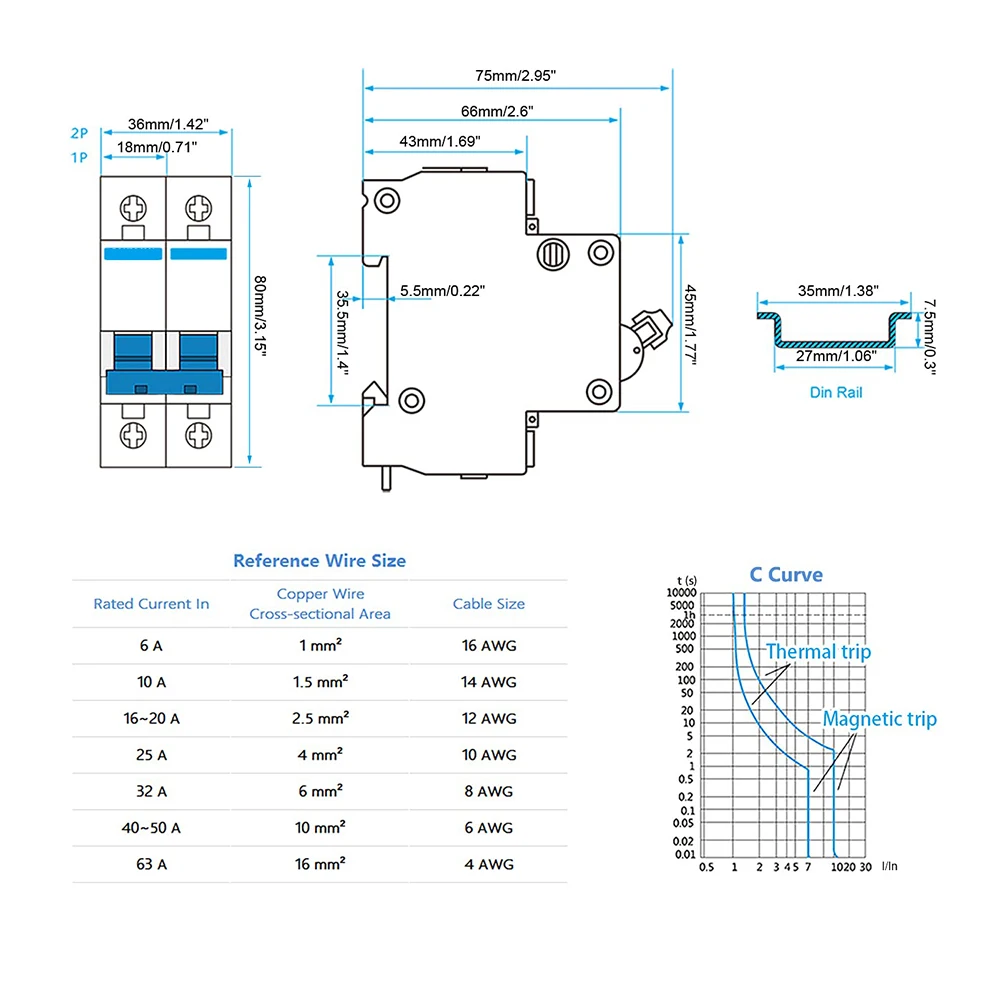

Dimensions LxWxH: 1.42 x 2.95 x 3.15 inches

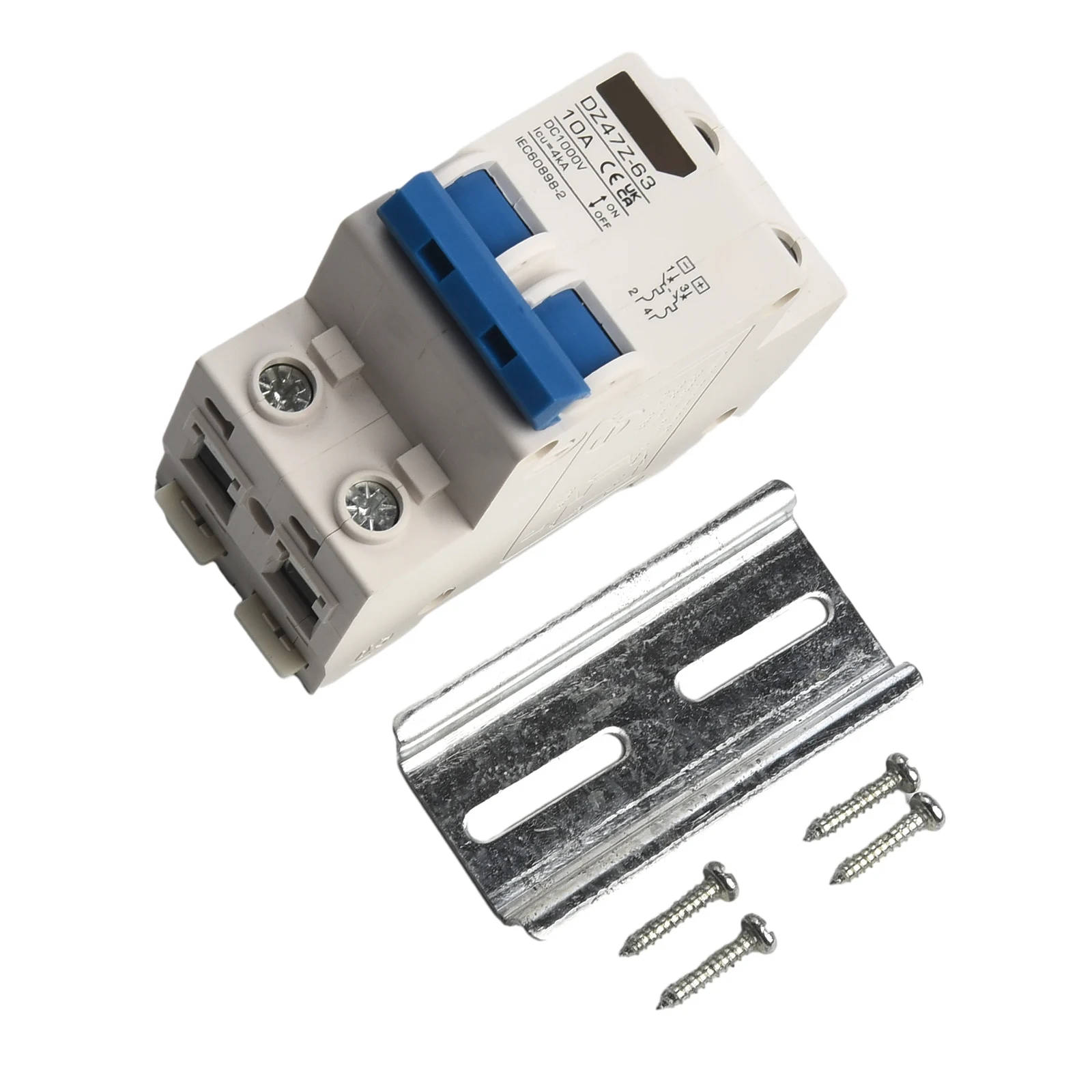

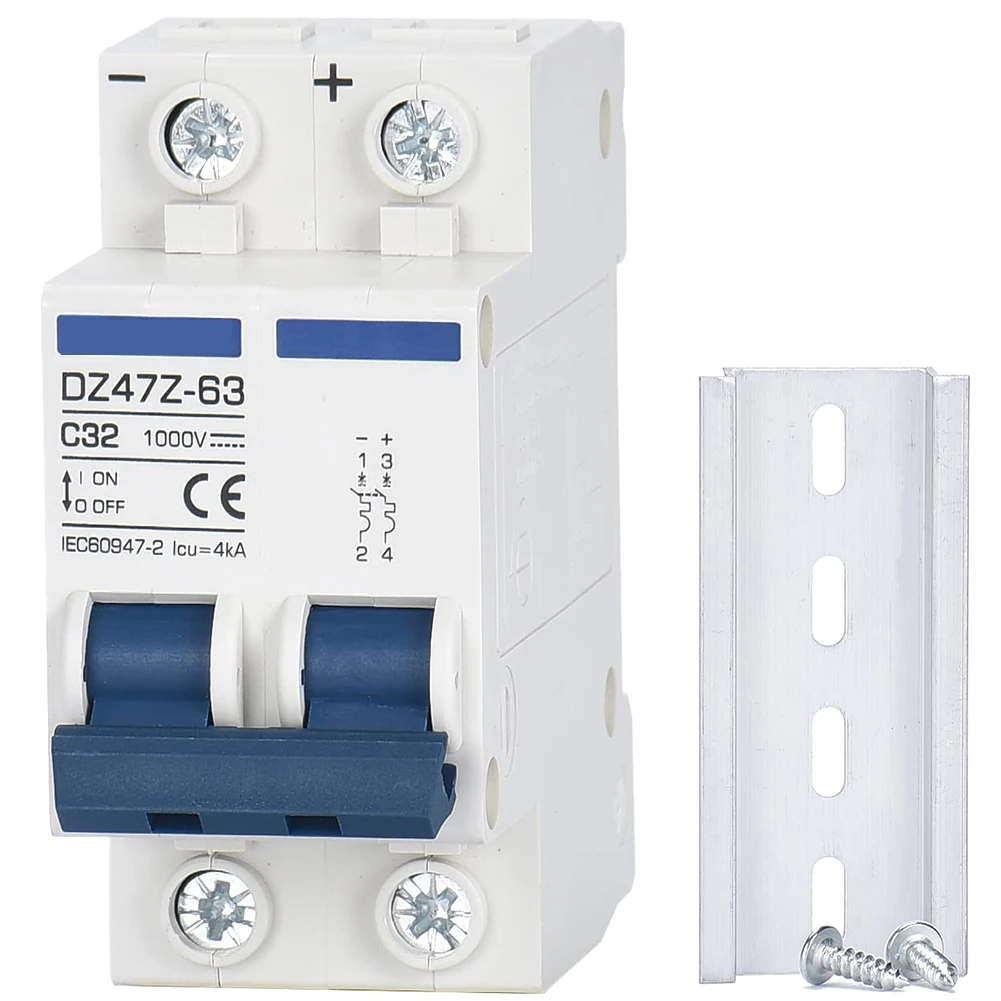

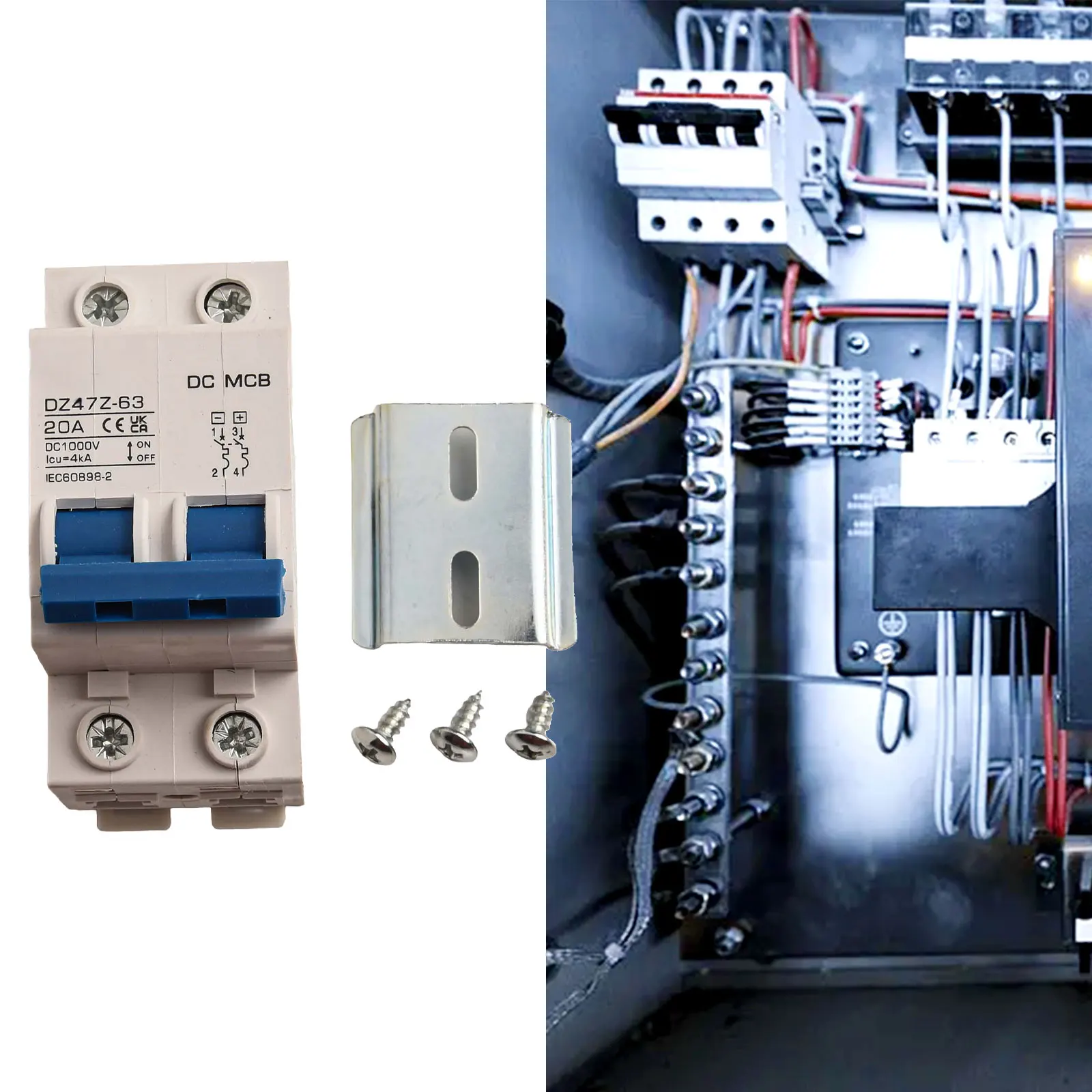

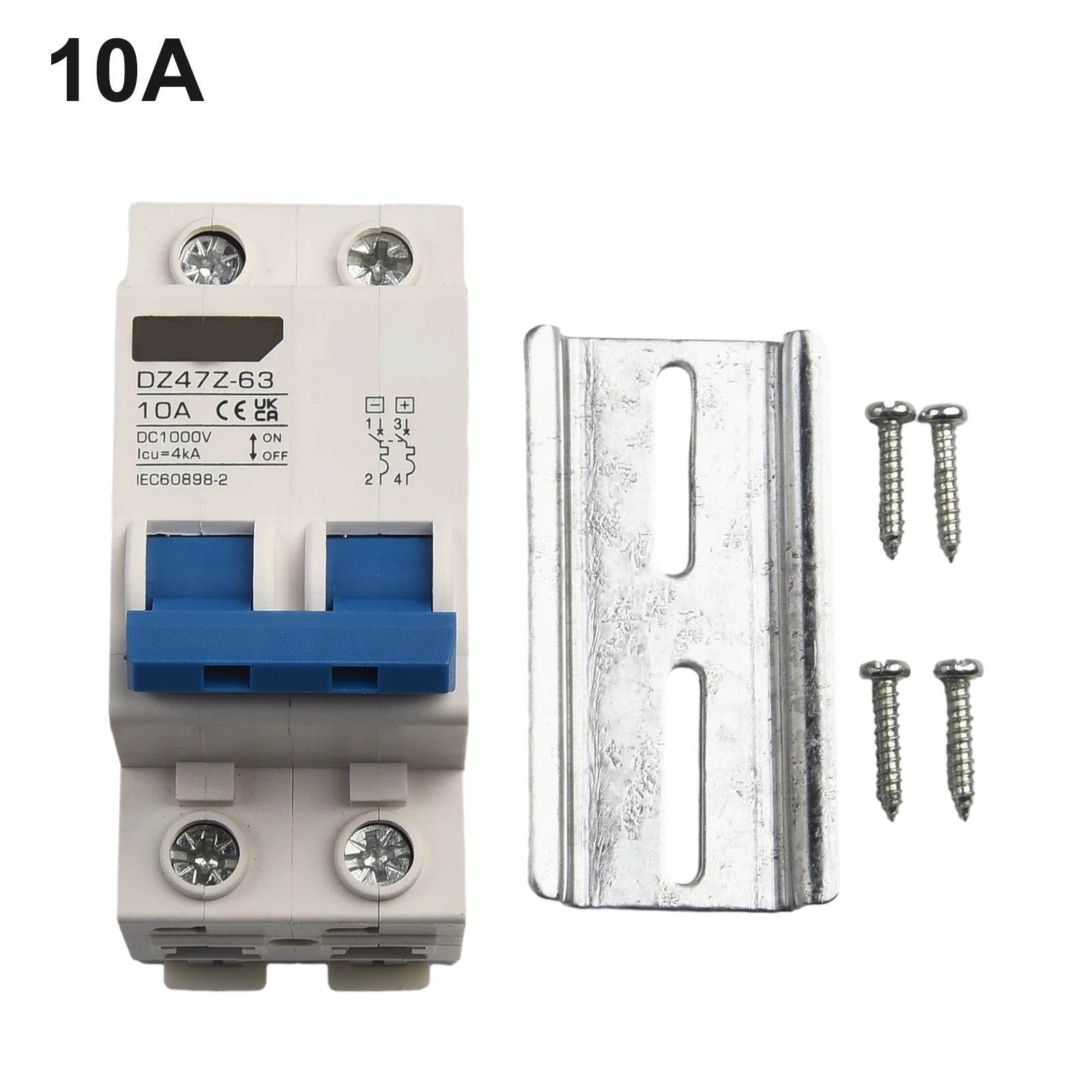

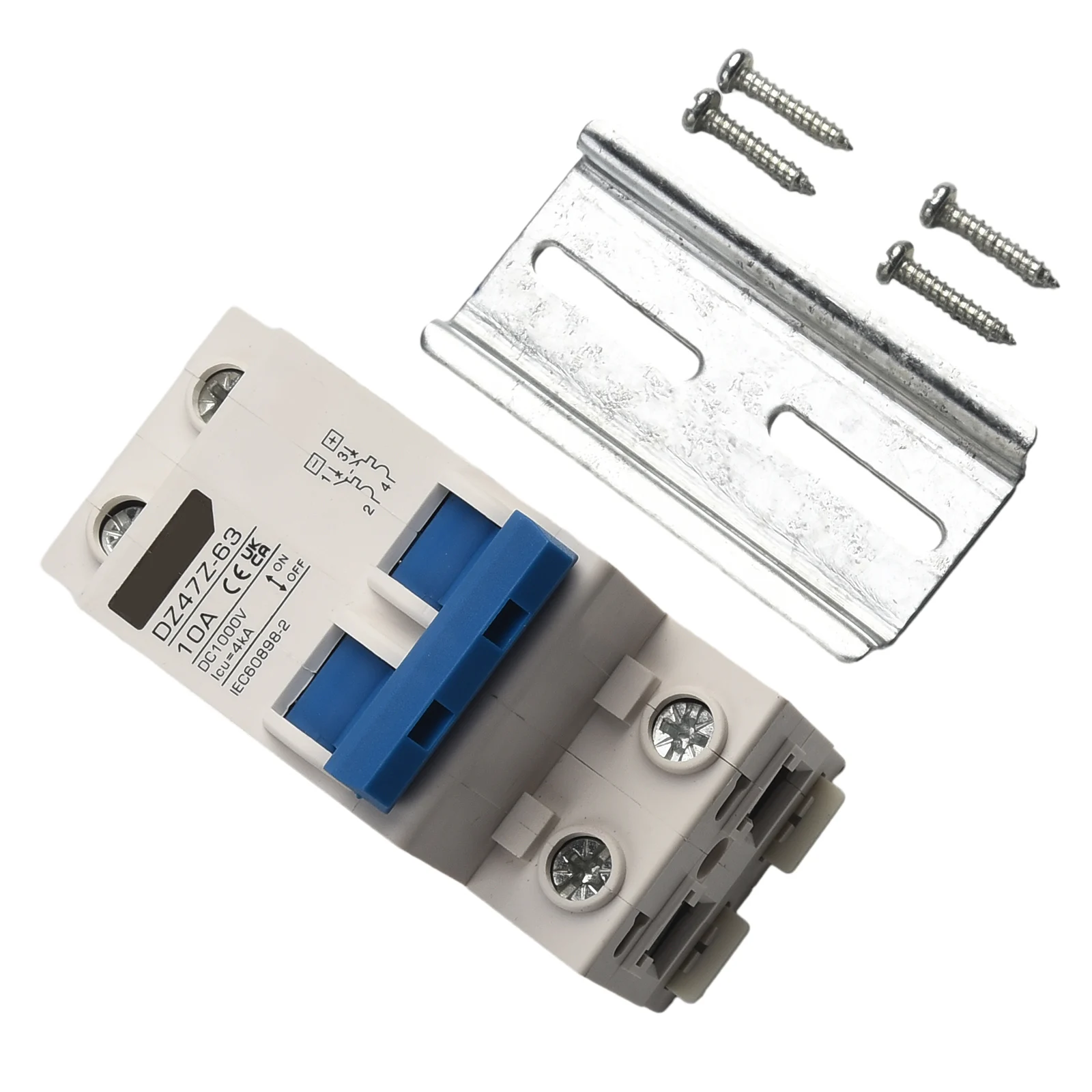

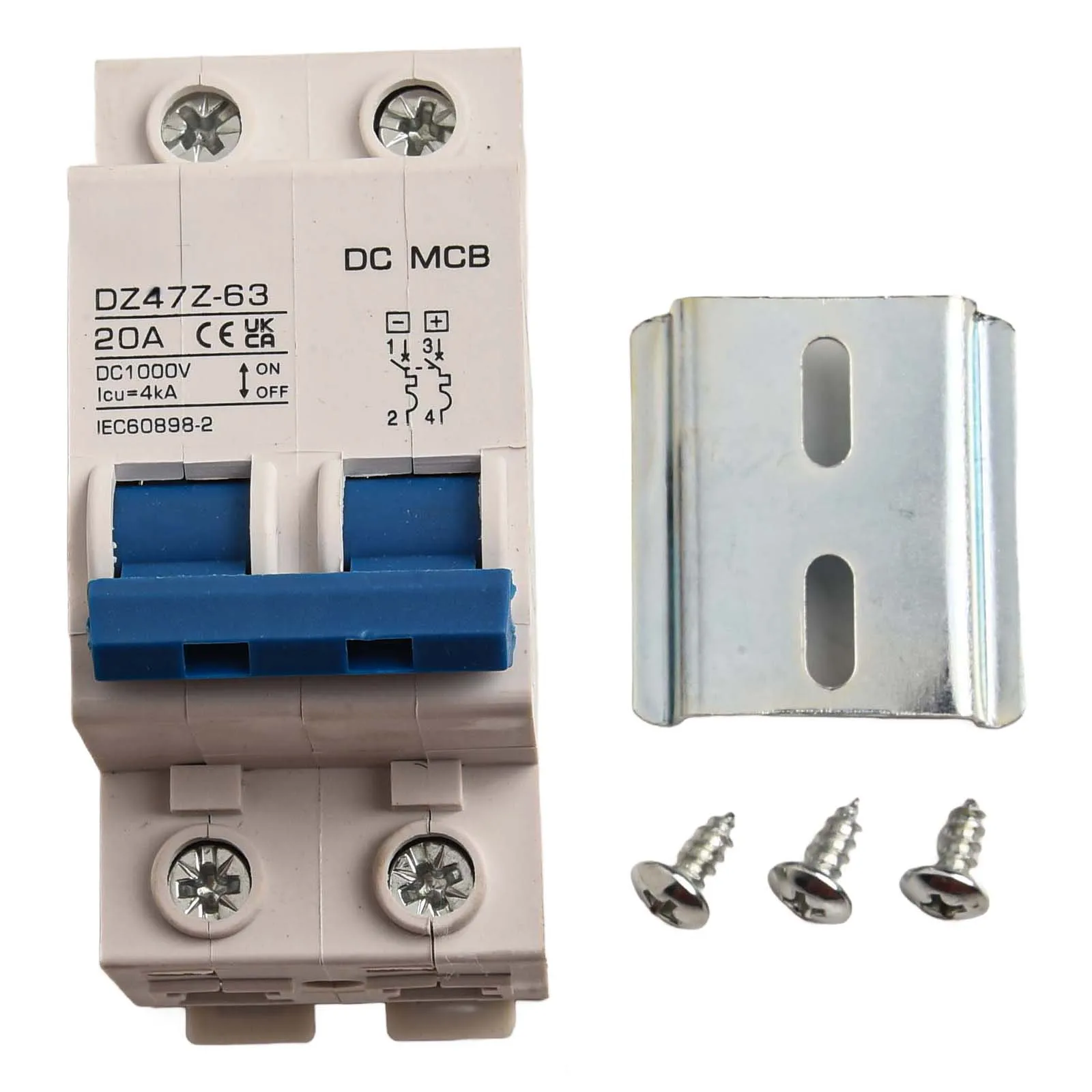

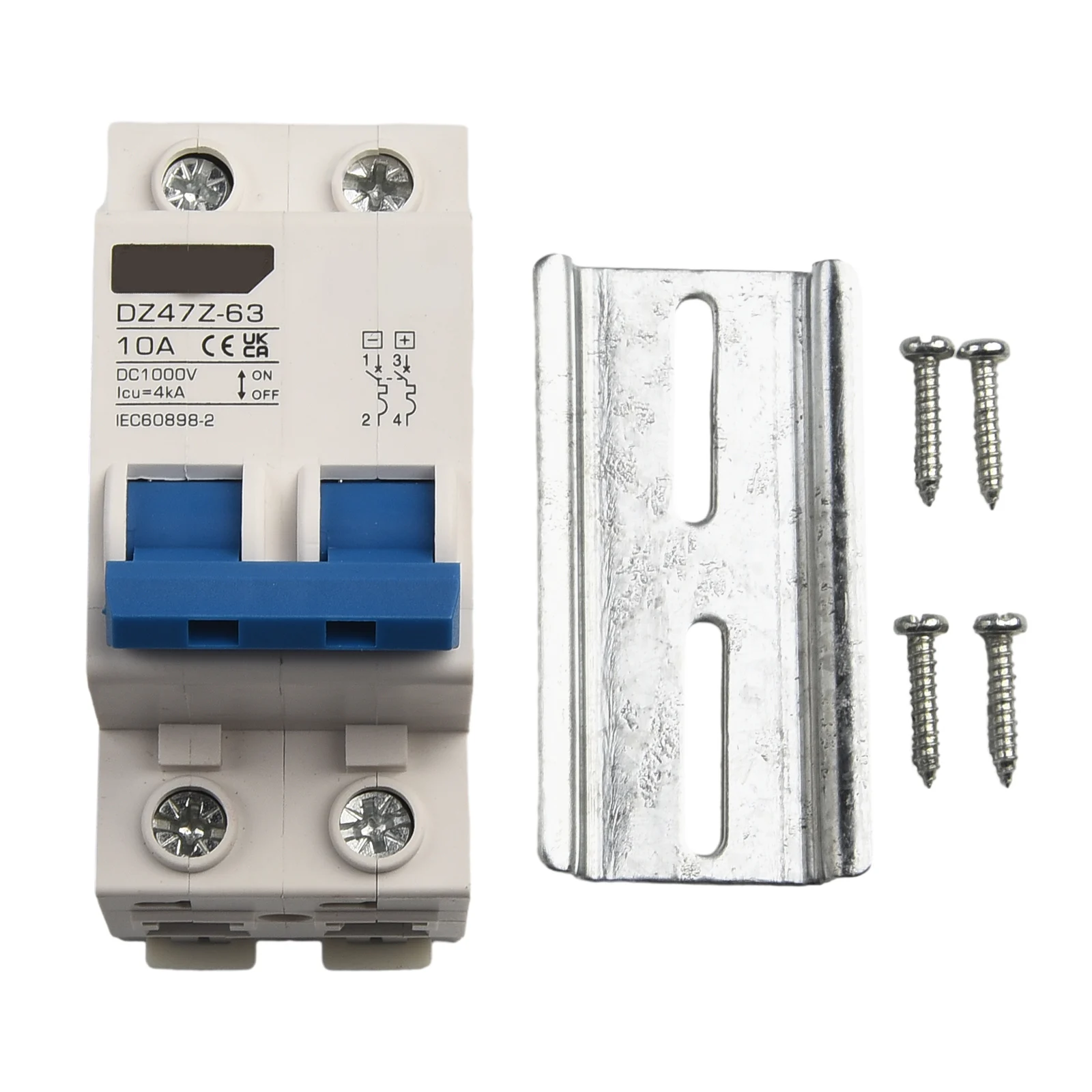

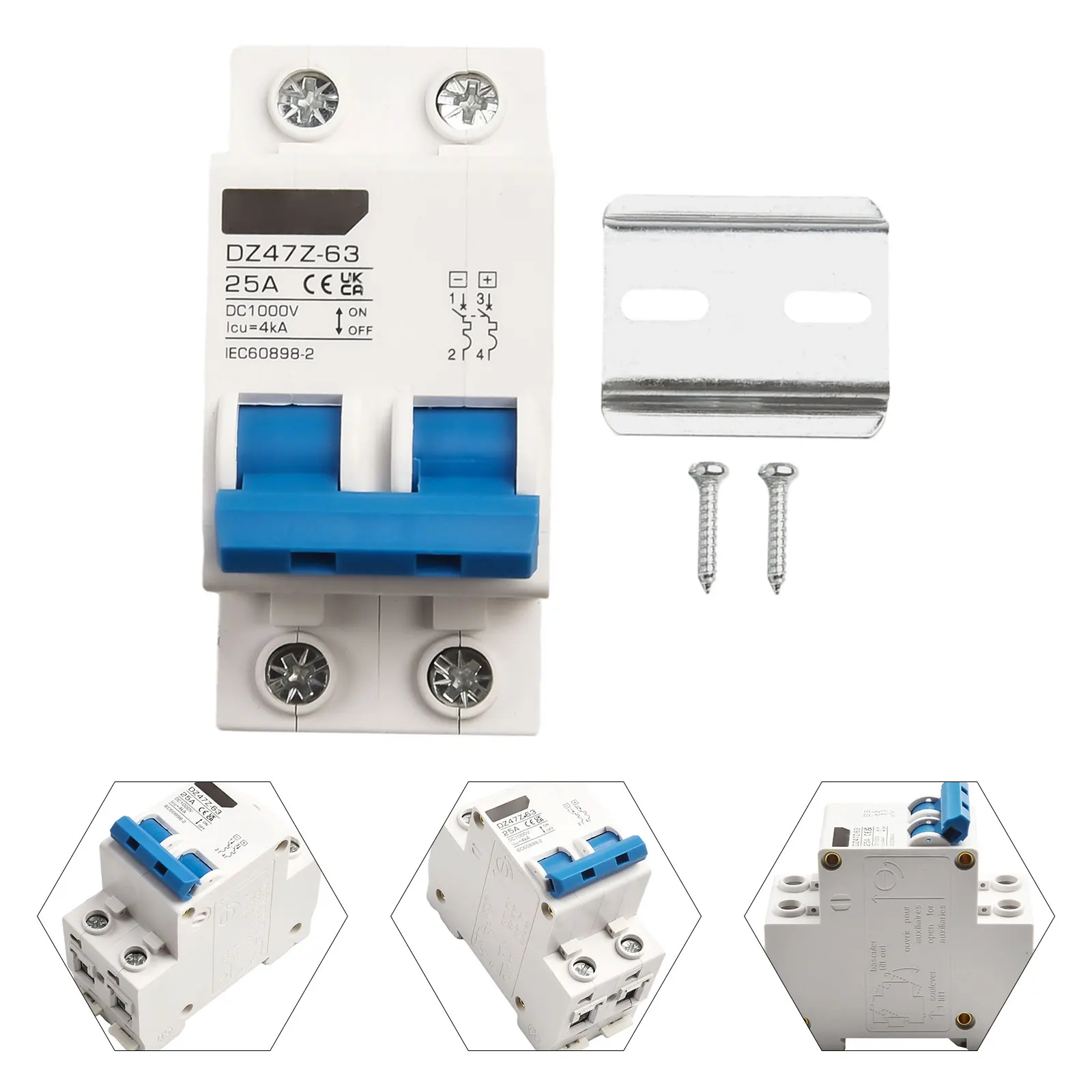

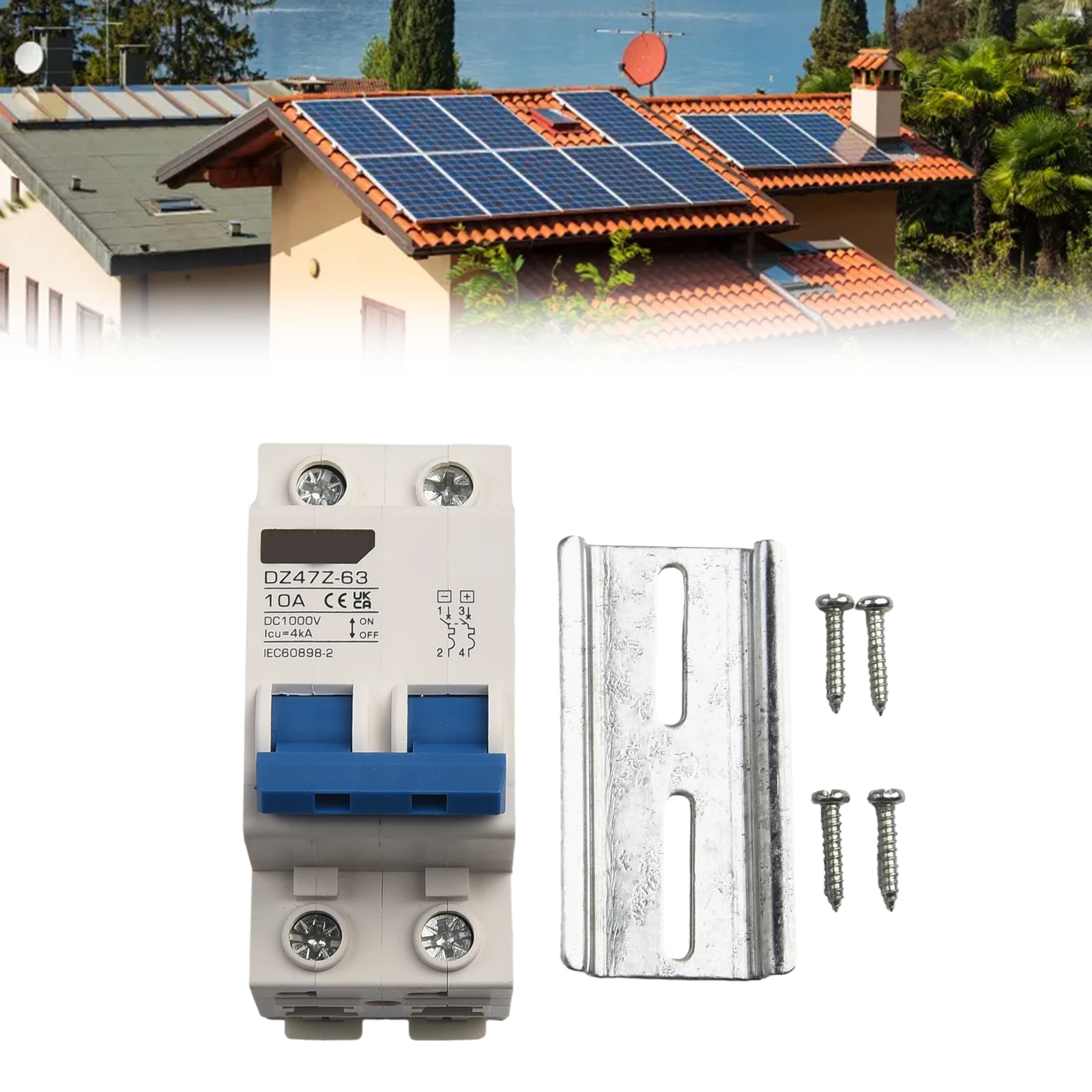

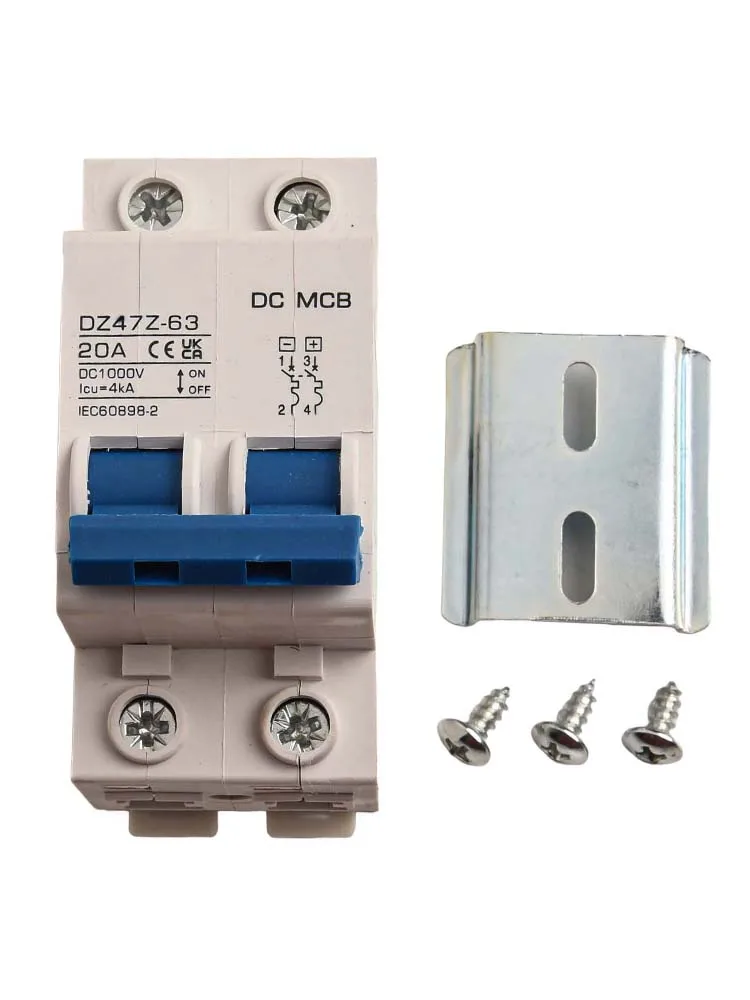

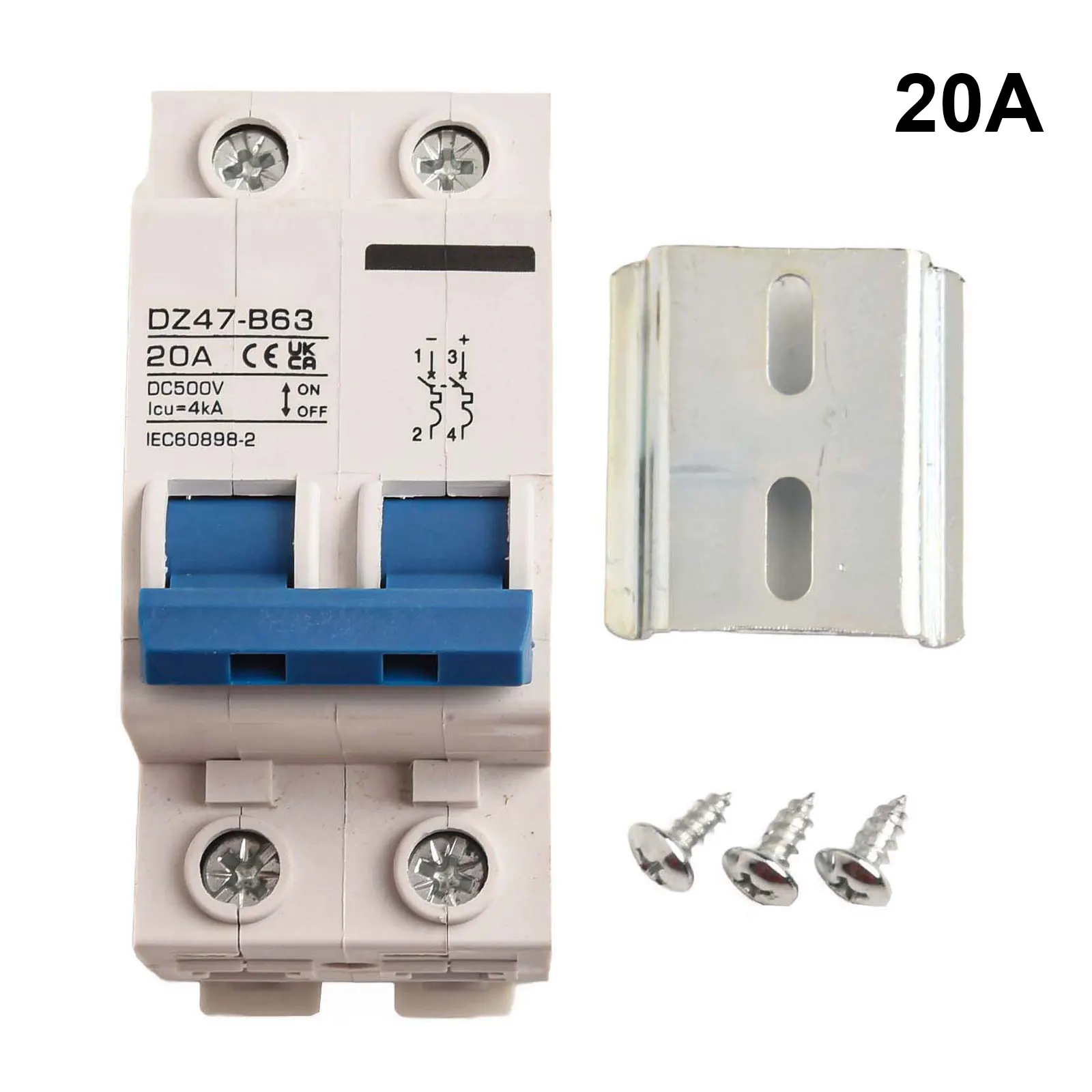

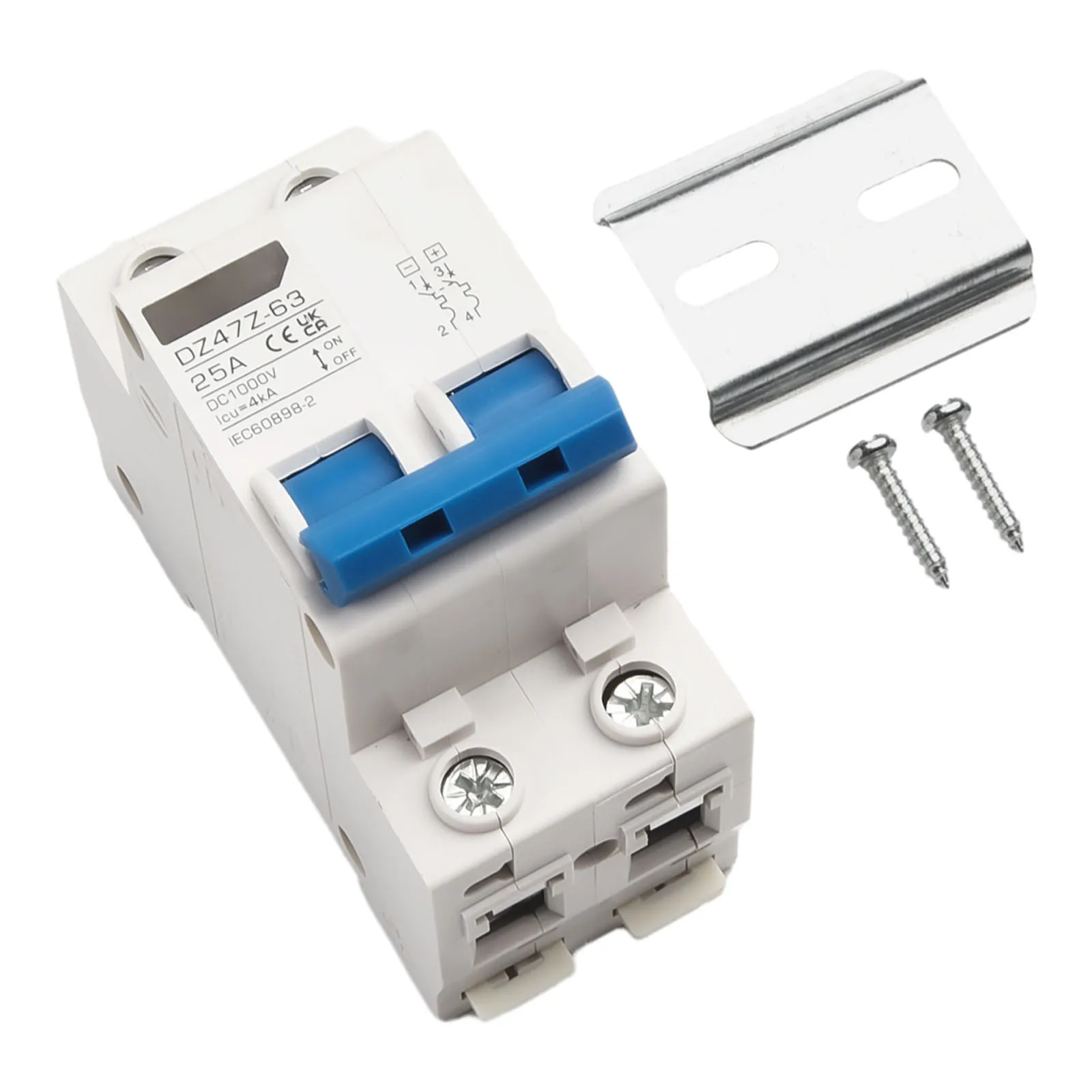

Package Included：

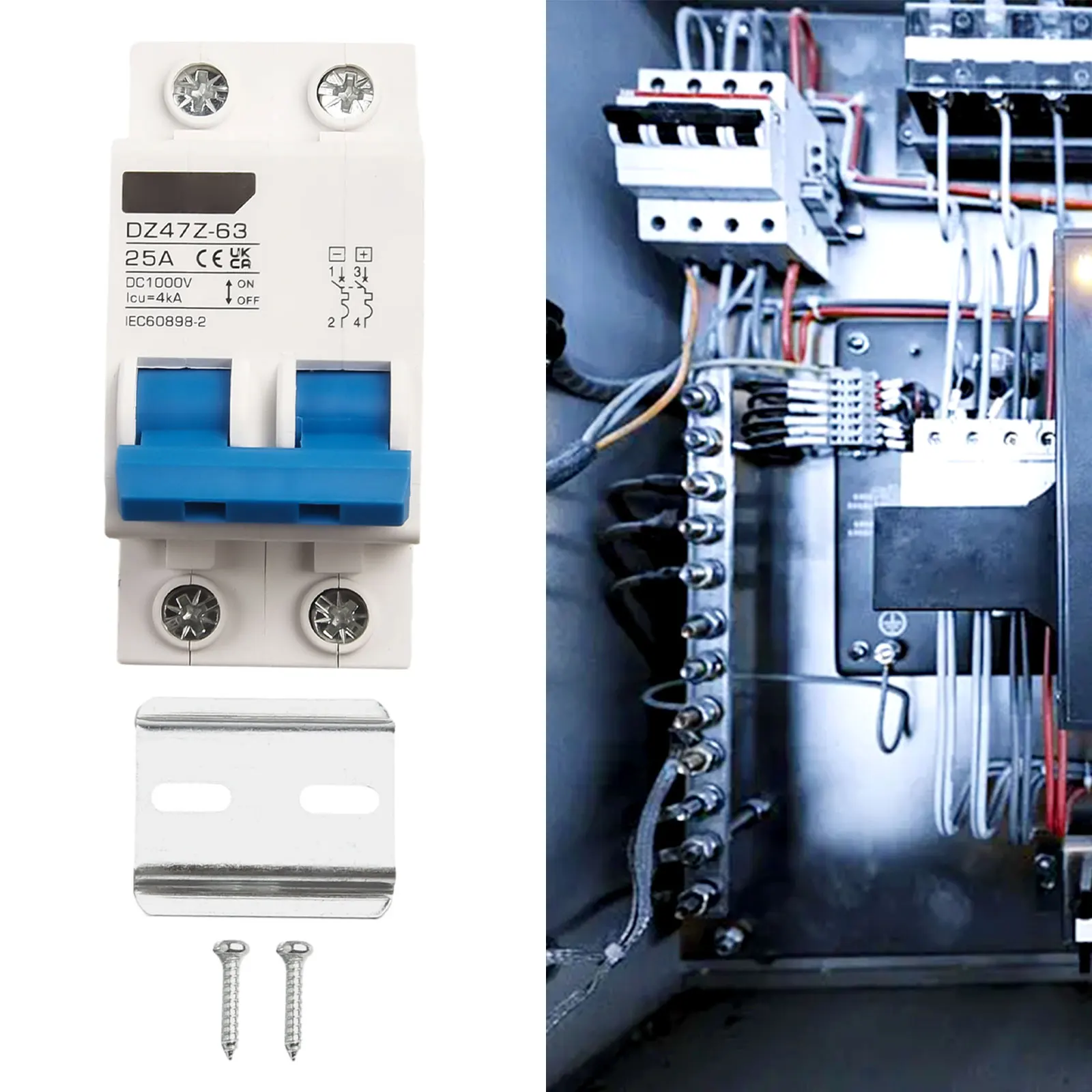

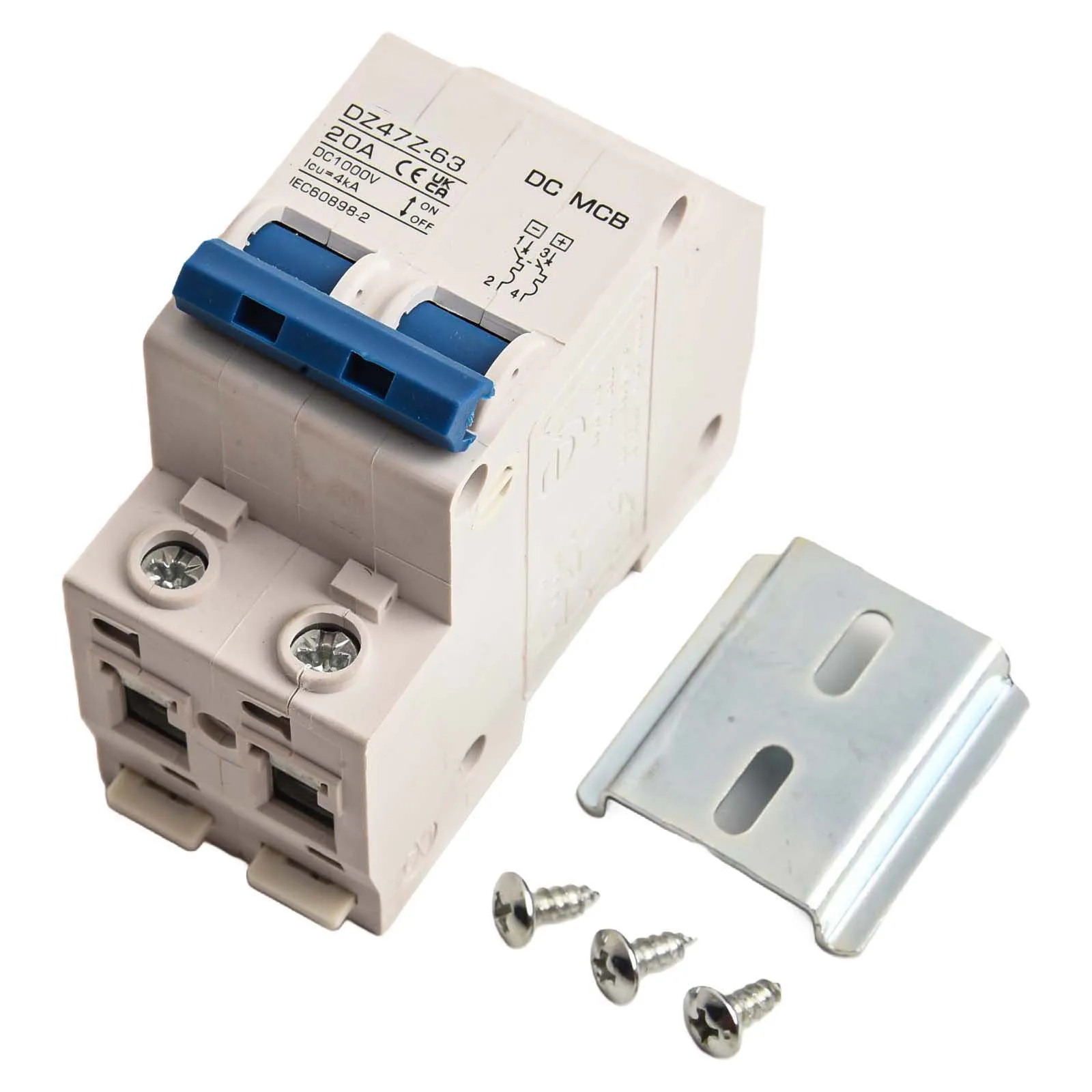

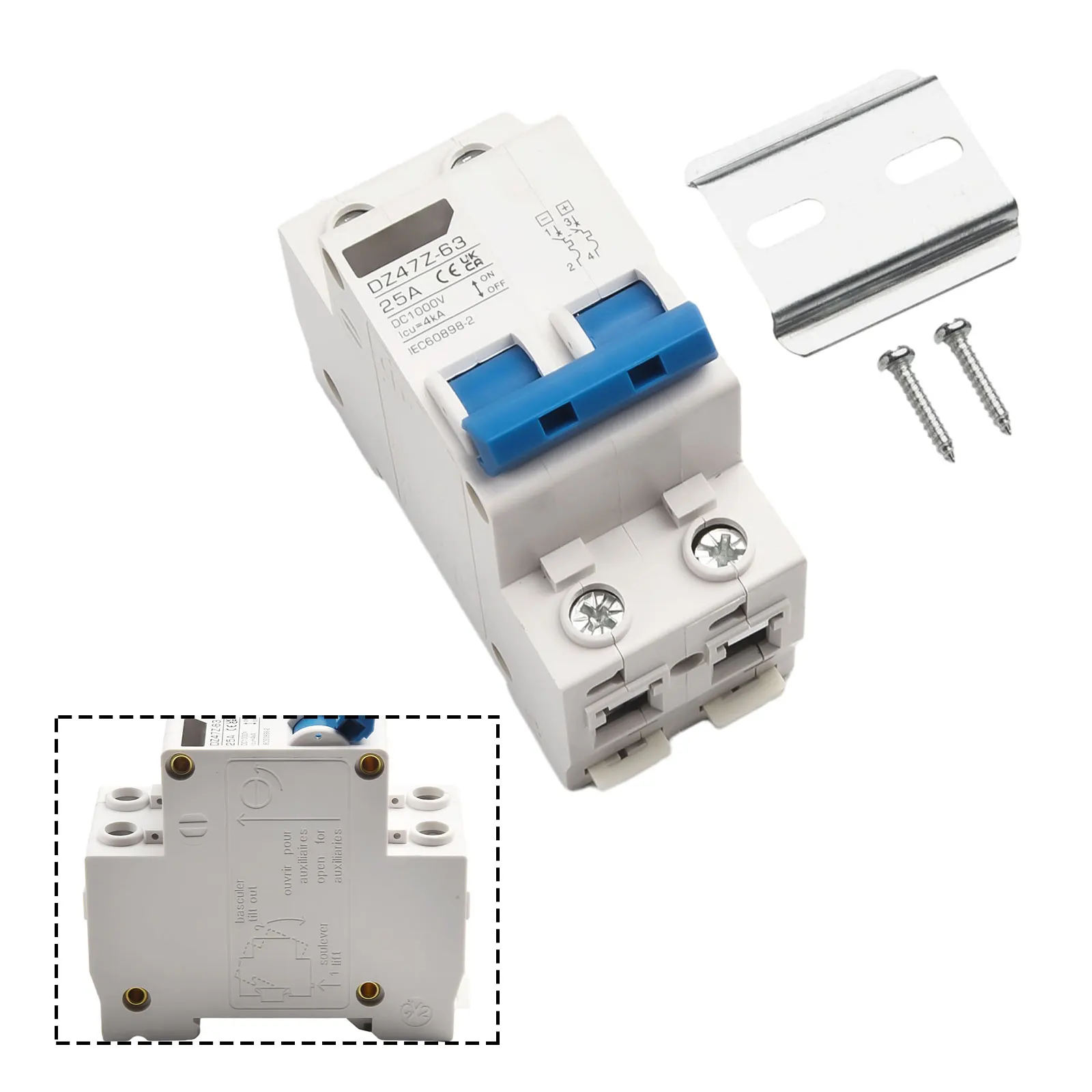

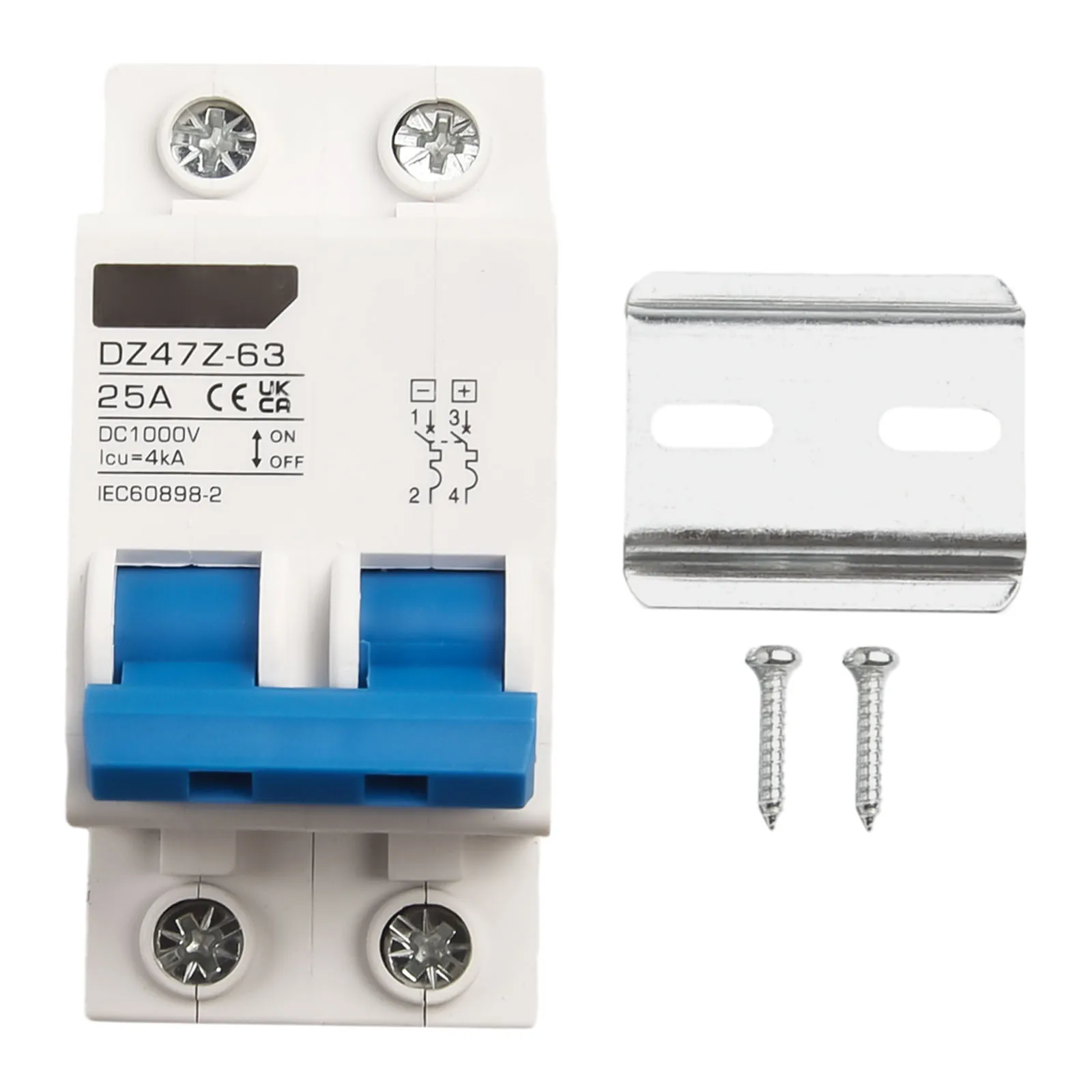

1 x DC MCB

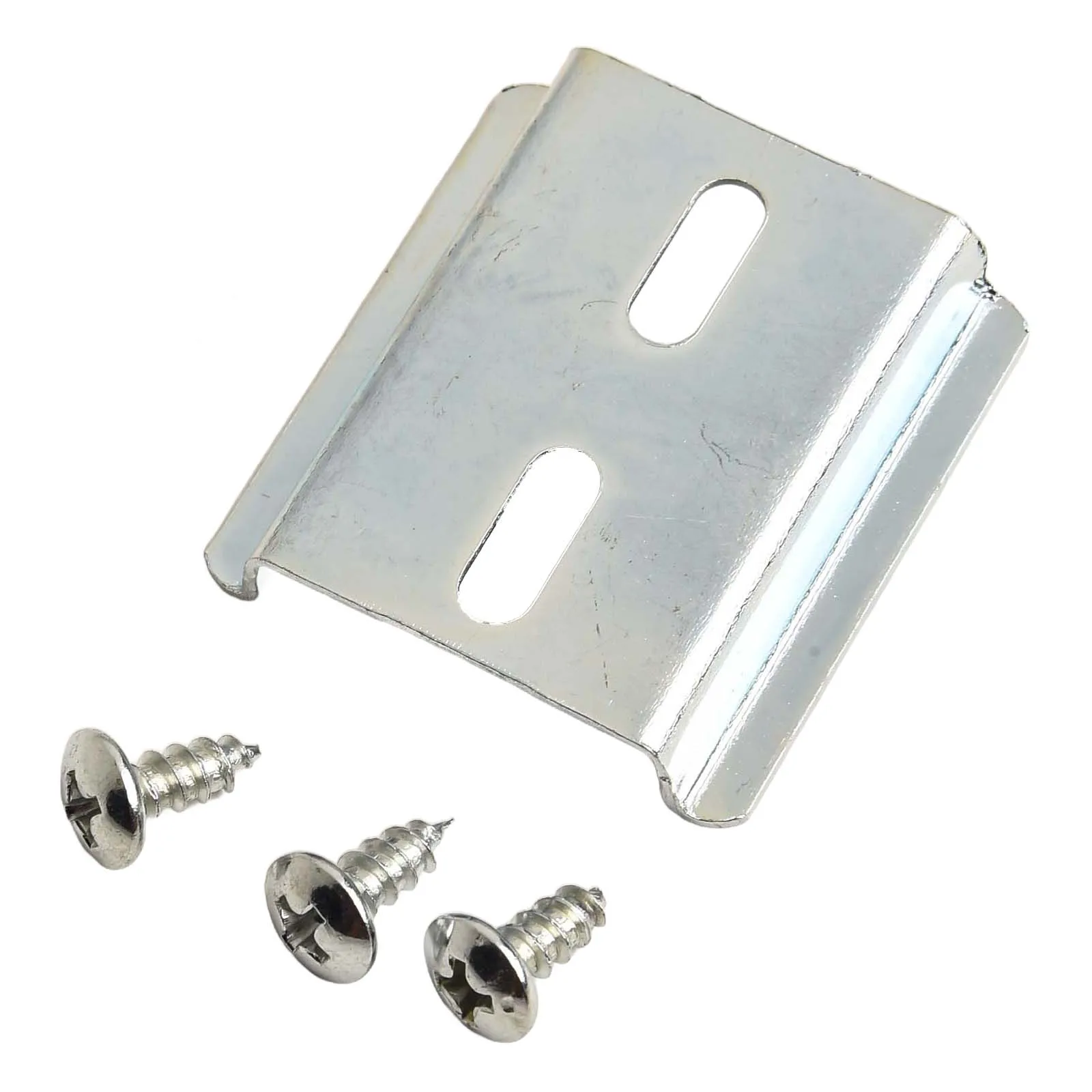

1 x DIN rail
2 x screws

Note:
1.The real lor of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
