Description
- Hign-concerned Chemical: None
- DIY Supplies: ELECTRICAL
- Model Number: Ring glass cutter
- Certification: CE
- Origin: Mainland China
- Length: 37cm
- Use: Glass Cutting
Ring Gass Cutter Hand Operated Tools Scientific Cutting System for Industrial Supplies
Feature:
1. The round cutting head at the end of the t-bar is equipped with three high-quality carbide wheels that can cut thicknesses of 2-8mm.
2. And this belt is used to cut strips from 3 cm to 30 cm wide, saving cumbersome cutting time.
3. Most importantly, all your works will be exactly the same size, which is with high practicality
4. Round cutter has a 3 point base that keeps its place, even in rough textured art glass.
5. Furthermore, such a cutting system can be circled between 8 cm and 60 cm in diameter.
2. And this belt is used to cut strips from 3 cm to 30 cm wide, saving cumbersome cutting time.
3. Most importantly, all your works will be exactly the same size, which is with high practicality
4. Round cutter has a 3 point base that keeps its place, even in rough textured art glass.
5. Furthermore, such a cutting system can be circled between 8 cm and 60 cm in diameter.
Specification:
Item Type: Glass cutter
How to Cut Strips:
1. Simply nail a standard board to your workbench.
2. Place the edge of the glass against the board.
3. Slide the strip base onto the t-bar and use the scale starting at 1-2-3-4 to set the size of the strip you want to cut. Tighten the screws so that the base does not move.
4. When you apply continuous pressure while sliding the cutting wheel on the glass, the strip base moves over the edge of the board.

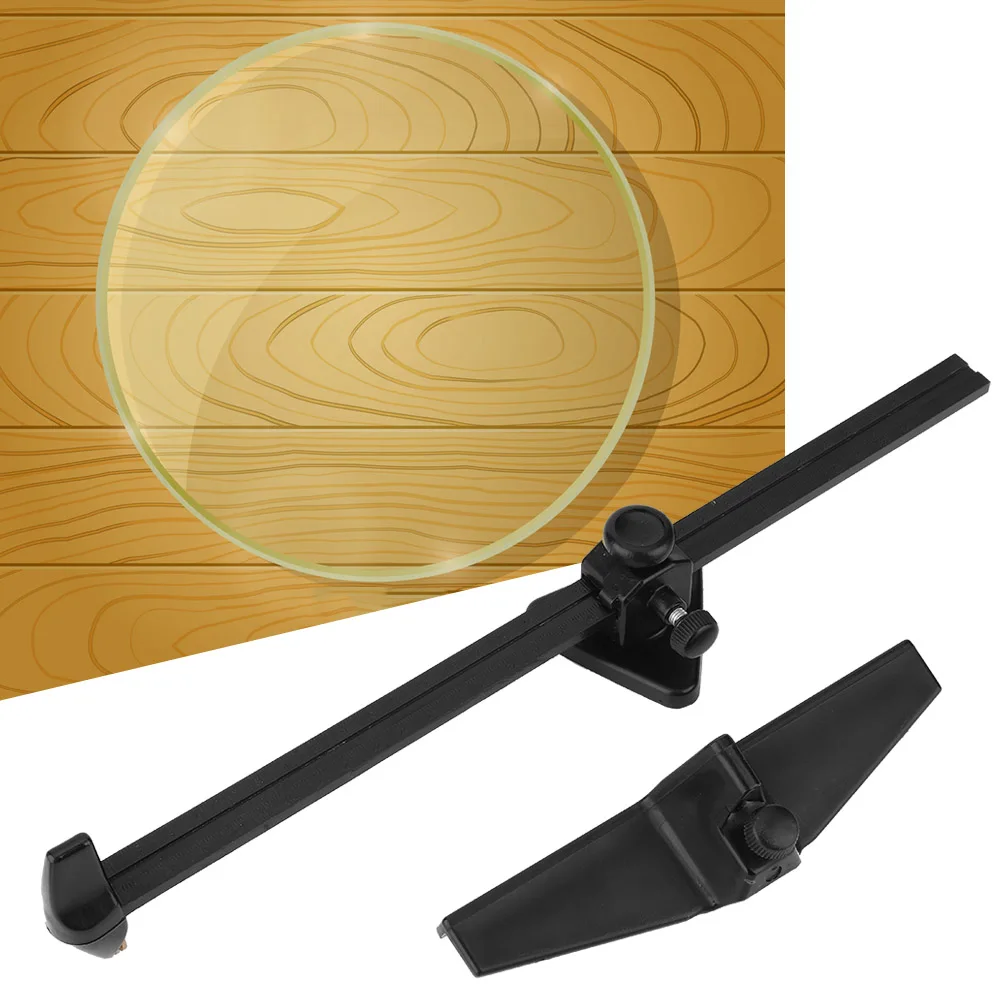

How to Cut the Circle:
1. Place the glass to be cut on the workbench.
2. Slide the round cutter seat on the t-bar. Use the scale starting with 6-8-10-12. Set the size circle you want to cut. Tighten the screws so that the base does not move.
3. Place the round cutter base on the glass to be cut.
4. Hold the pressure button in the center of the circular holder with your thumb to secure the holder in place. At the same time, a continuous pressure is applied while rotating the t-cut wheel on the glass.
Details to Such Cutting System:

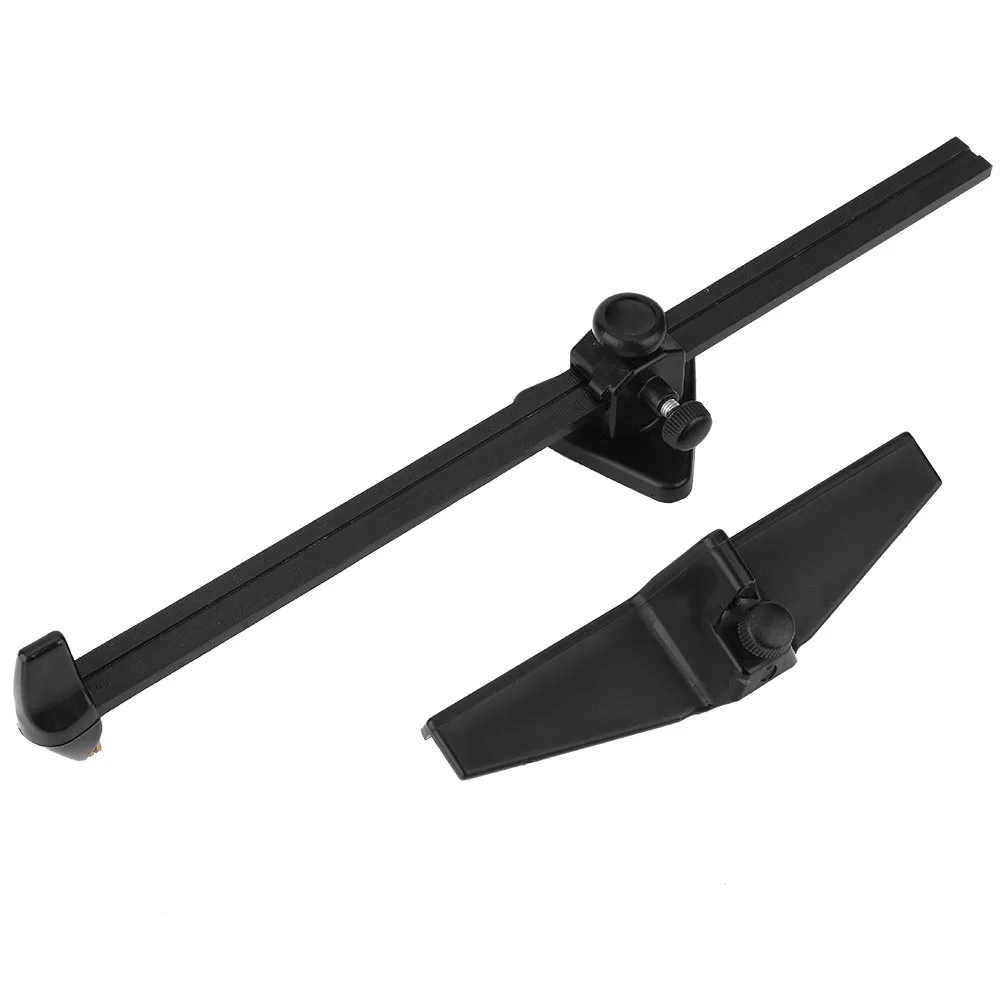

30CM T-Bar: There are two scales on the T-bar. One reads the width of the strip to be scored with the strip base. And this scale begins with 1-2-3-4.While the other scale reads the diameter of the circle to be scored with the circle cutter base. And this scale begins with 6-8-10-12. also, this round cutting head on the end of the T-bar holds three High Quality Carbide Wheels that can cut 2-8mm thickness
Strip Cutter Base: The strip is used to cut strips from 3cm to 30cm in width, saving your hours of tedious cutting. Most importantly, all of your works will be exactly the same size.
Circle Cutter Base: The circle cutter has a 3 point base so that it holds its position, even on rough textured art glass. And it can score circles from 8cm to 60cm in diameter.
How to Cut Strips:
1. Simply nail a standard board to your workbench.
2. Place the edge of the glass against the board.
3. Slide the strip base onto the t-bar and use the scale starting at 1-2-3-4 to set the size of the strip you want to cut. Tighten the screws so that the base does not move.
4. When you apply continuous pressure while sliding the cutting wheel on the glass, the strip base moves over the edge of the board.
How to Cut the Circle:
1. Place the glass to be cut on the workbench.
2. Slide the round cutter seat on the t-bar. Use the scale starting with 6-8-10-12. Set the size circle you want to cut. Tighten the screws so that the base does not move.
3. Place the round cutter base on the glass to be cut.
4. Hold the pressure button in the center of the circular holder with your thumb to secure the holder in place. At the same time, a continuous pressure is applied while rotating the t-cut wheel on the glass.
Details to Such Cutting System:
30CM T-Bar: There are two scales on the T-bar. One reads the width of the strip to be scored with the strip base. And this scale begins with 1-2-3-4.While the other scale reads the diameter of the circle to be scored with the circle cutter base. And this scale begins with 6-8-10-12. also, this round cutting head on the end of the T-bar holds three High Quality Carbide Wheels that can cut 2-8mm thickness
Strip Cutter Base: The strip is used to cut strips from 3cm to 30cm in width, saving your hours of tedious cutting. Most importantly, all of your works will be exactly the same size.
Circle Cutter Base: The circle cutter has a 3 point base so that it holds its position, even on rough textured art glass. And it can score circles from 8cm to 60cm in diameter.
Package List:
1Set x Cutting Tool
