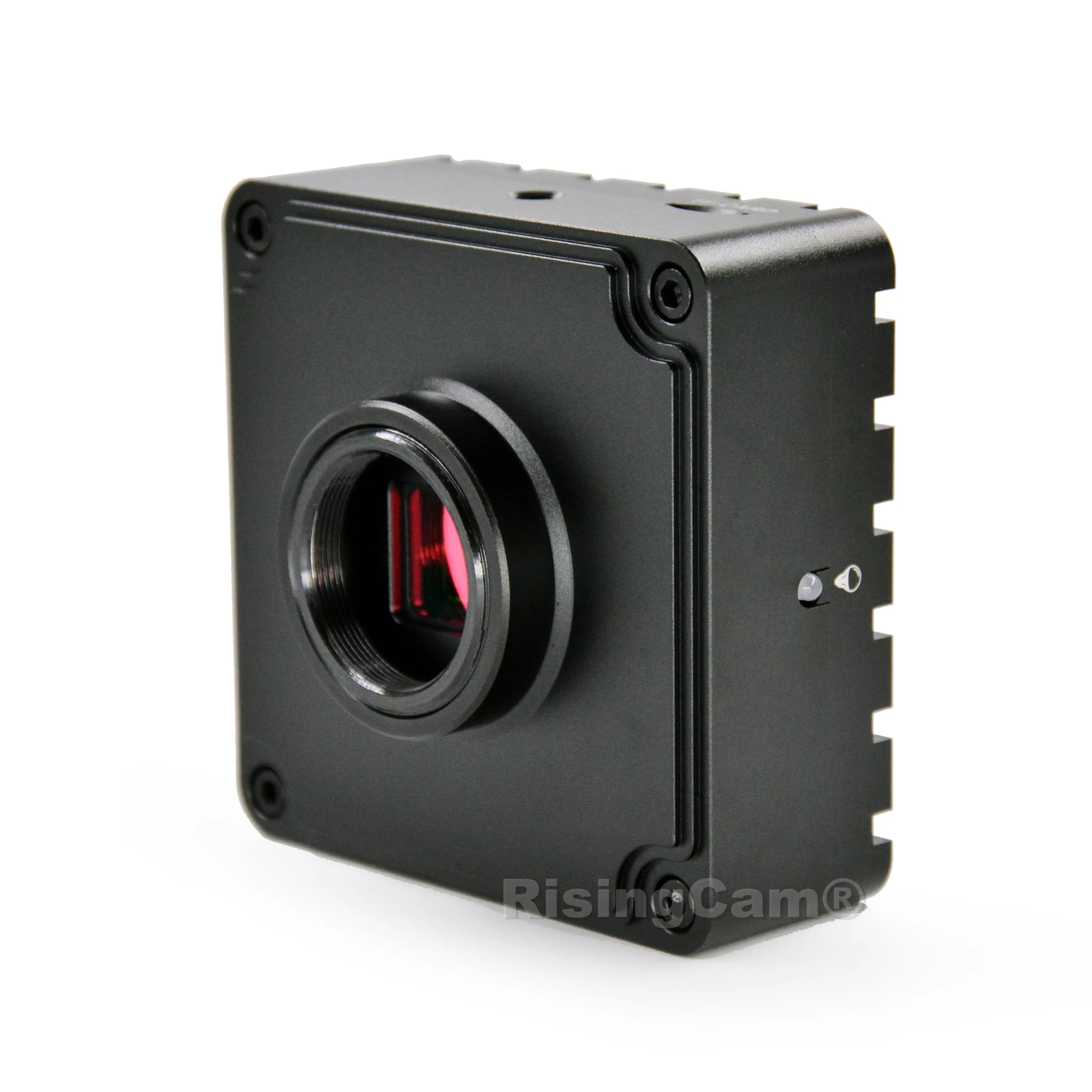

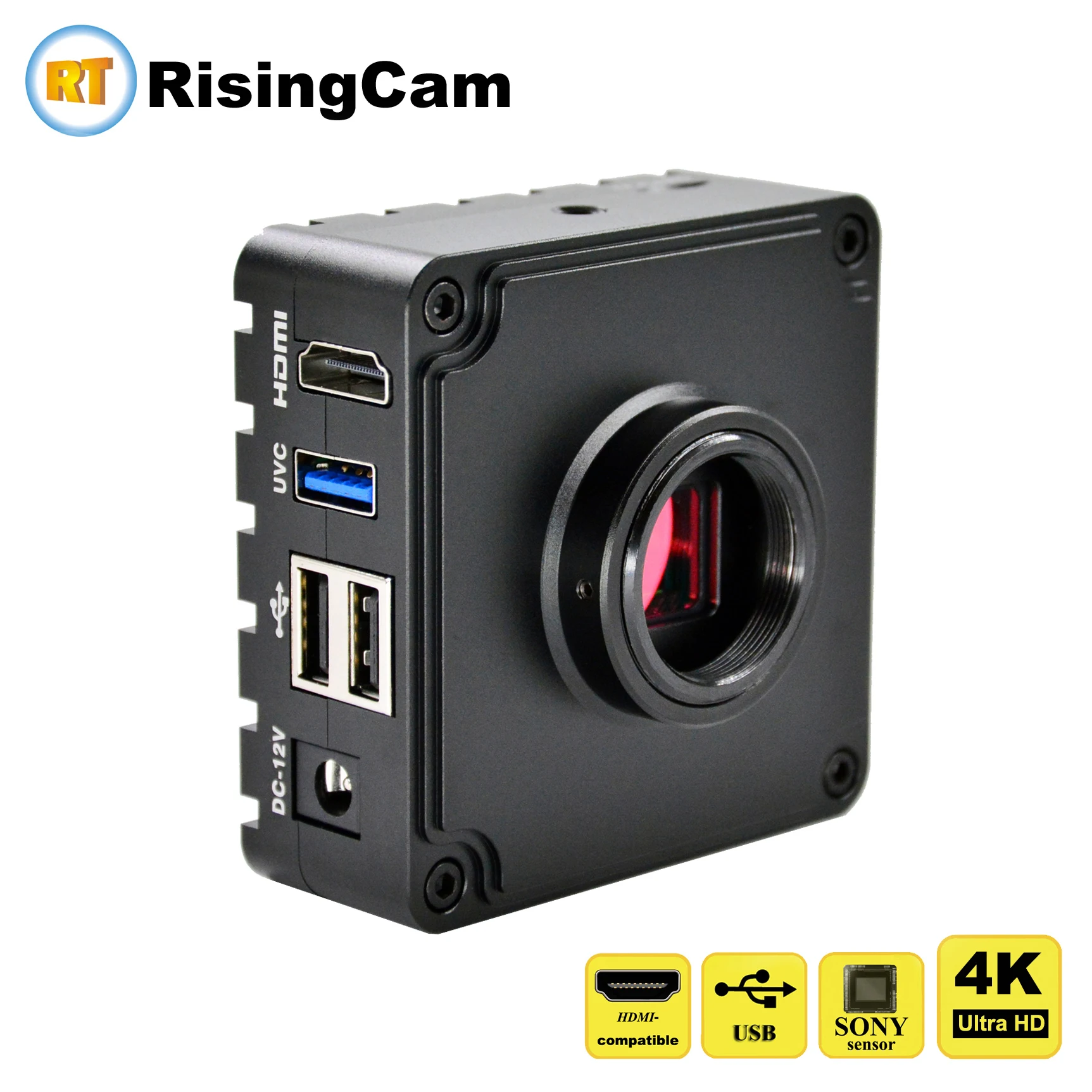

New 4K Ultra HD 60fps HDMI compatible and USB output industrial microscope camera 4K for SONY imx334 sensor

Model No RT5109（YW5109）

Install SONY imx334 Sensor, senzor size:1/1.8"

Resolution: 4K Ultra HD

Max frame rate under Preview:4K/60fps,1080P/60fps

Recording video resolution: 4K/30fps

Capture photo resolution: 4K (3840×2160)

Under HDMI-output support TF Card and U drive storage

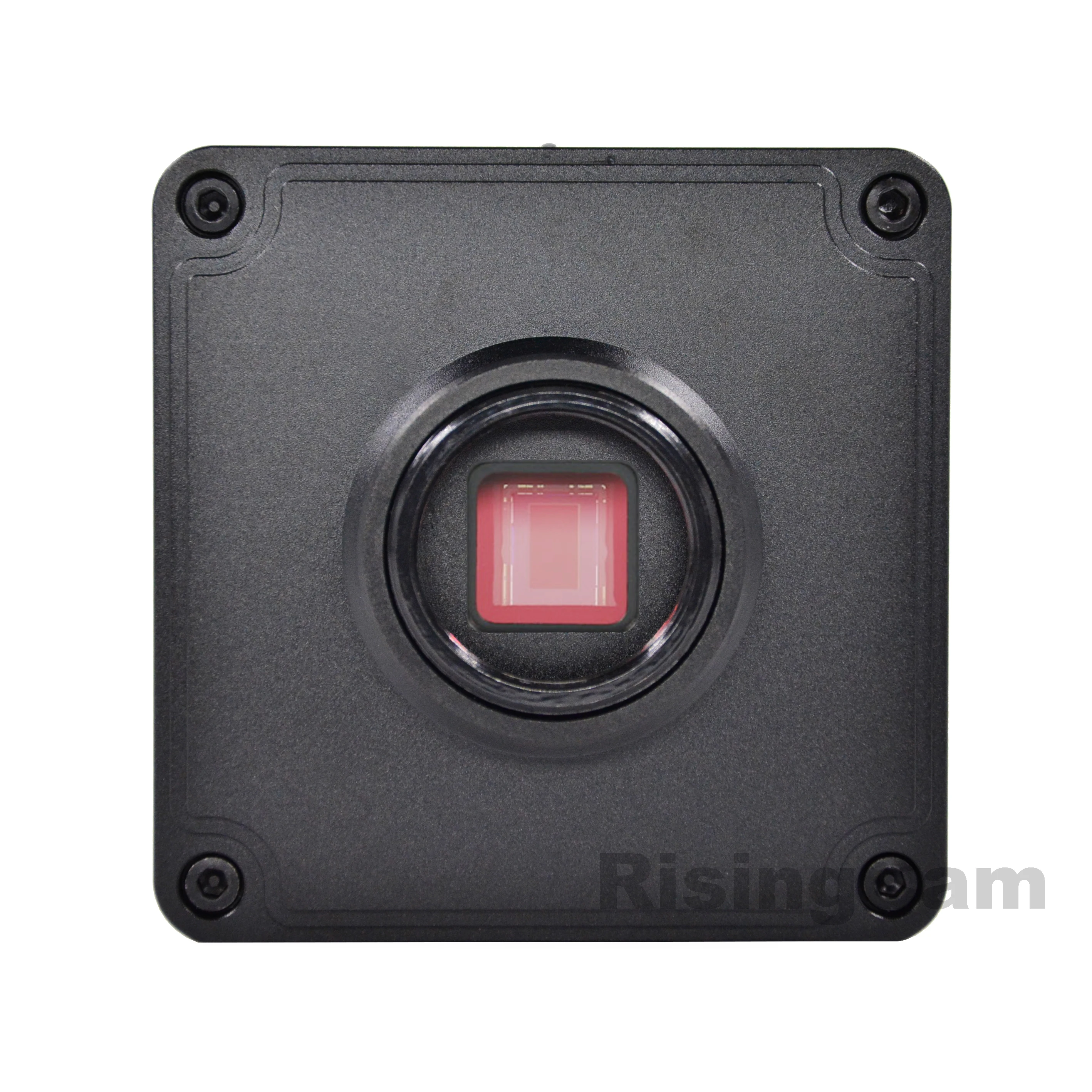

CS mount & C mount ( with 5mm ring transfer CS to C mount)

Real time measurement

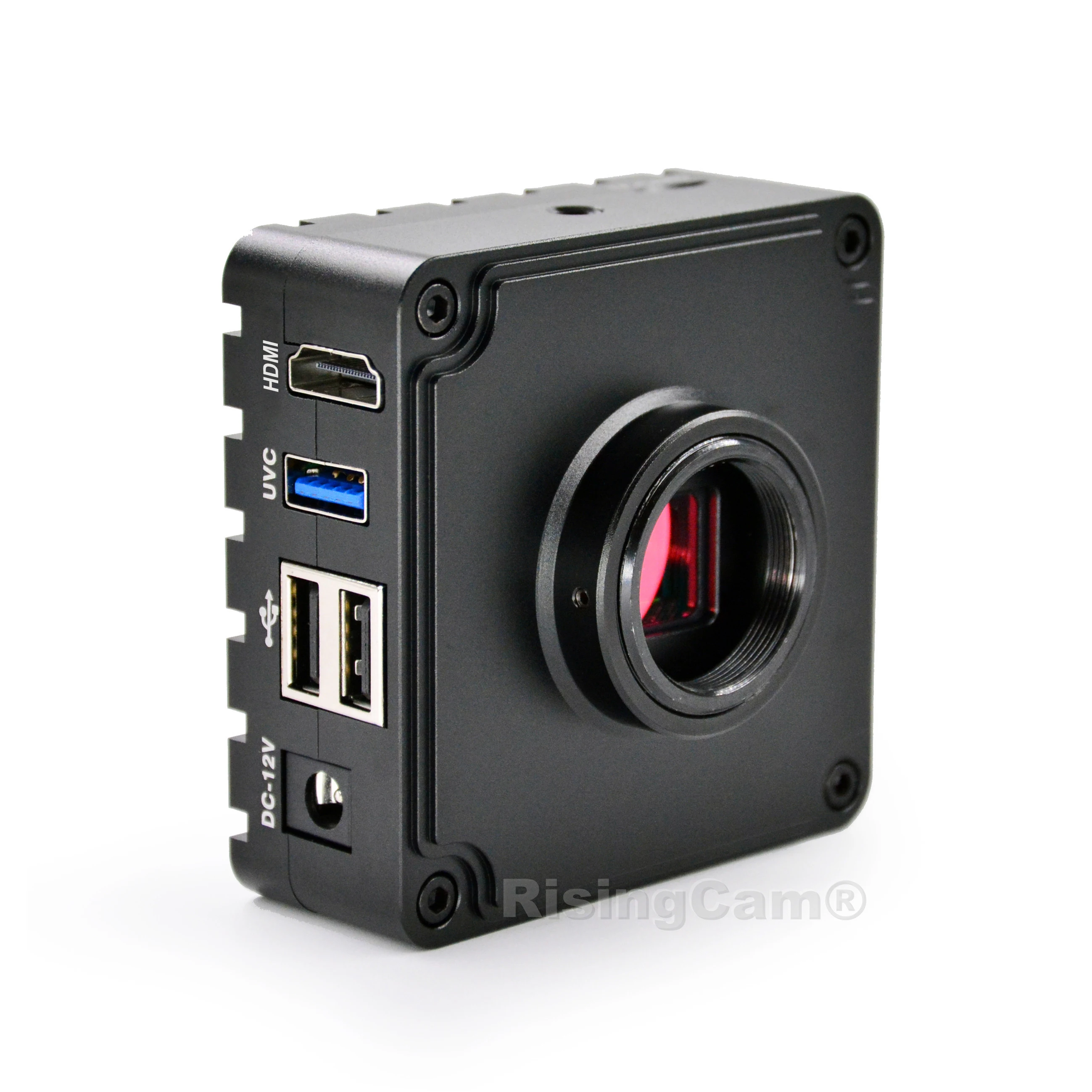

Camera support USB output, it can work with windows computer

RT5109 has CS mount, RisingCam will provide 5mm Ring for buyers,

this 5mm Ring can transfer CS mount to C mount,

So RT5109 has both CS and C mount

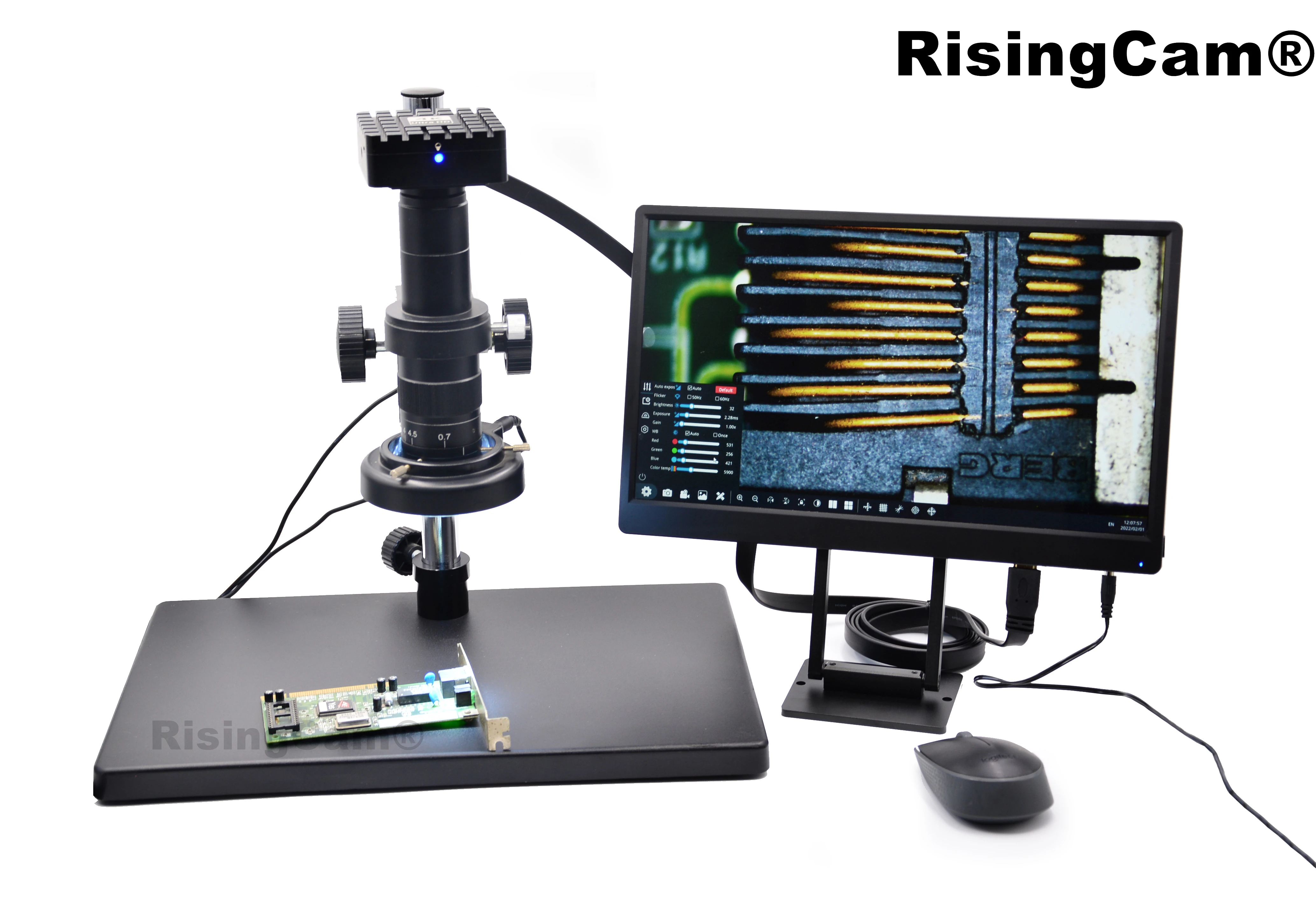

Camera working under HDMI-compatible output

RT5109 4K Camera work with 11.6inch TV monitor

14 inch screen UHD 4K digital HDMI input TFT LCD Displayer TV Monitor for buyer reference

if buyer want buy 4K Monitor, you could check below item.



RT5109 4K Camera work with 55inch 4K TV monitor

1.Connect camera to TV monitor with HDMI Cable

2.Insert Mouse, USB drive or External SD card into USB port of camera

3.Power in, Camera auto start, LED light blue, camera running, then Monitor display image

4.Move Mouse to generate Camera control and setting menu

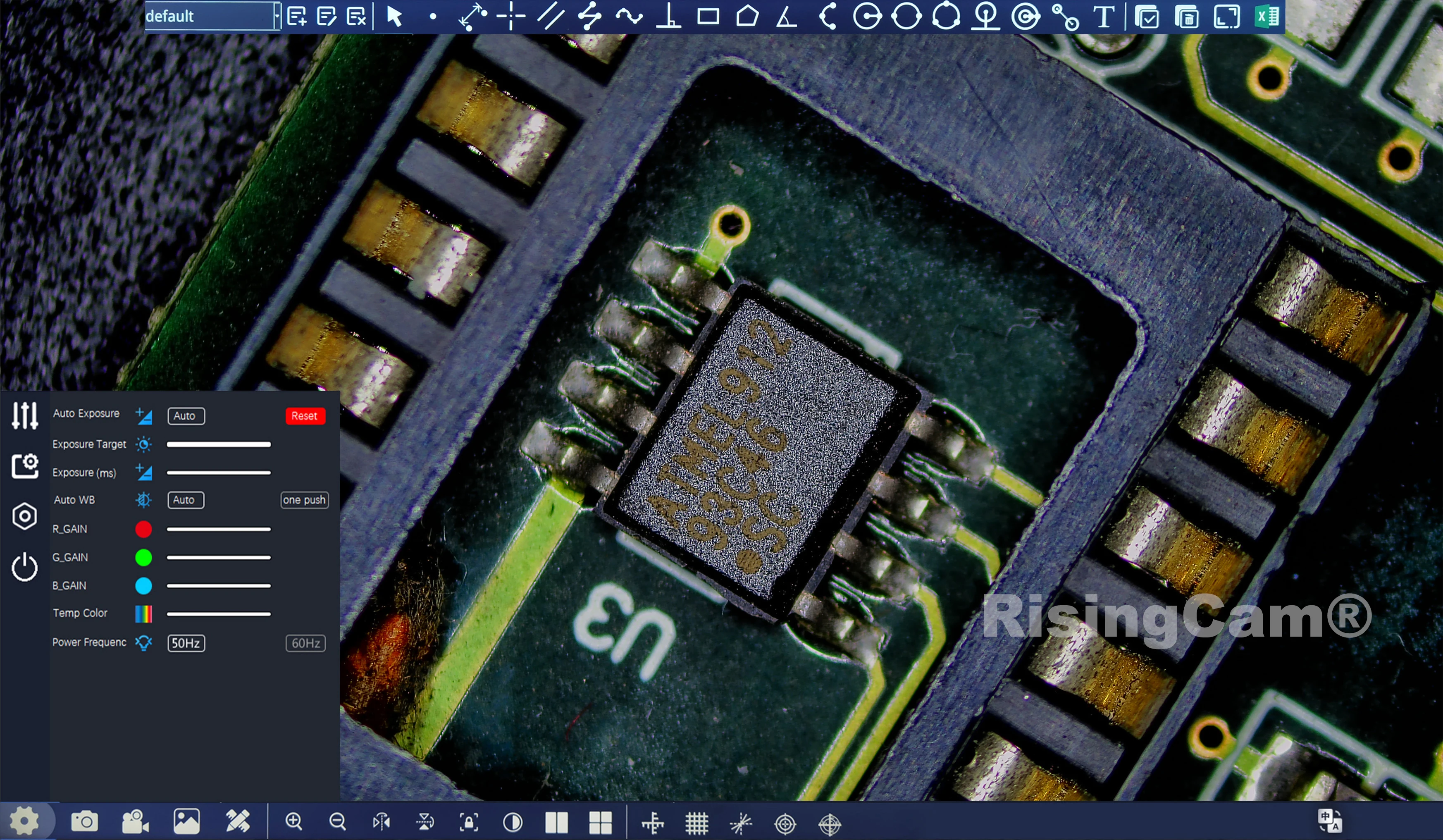

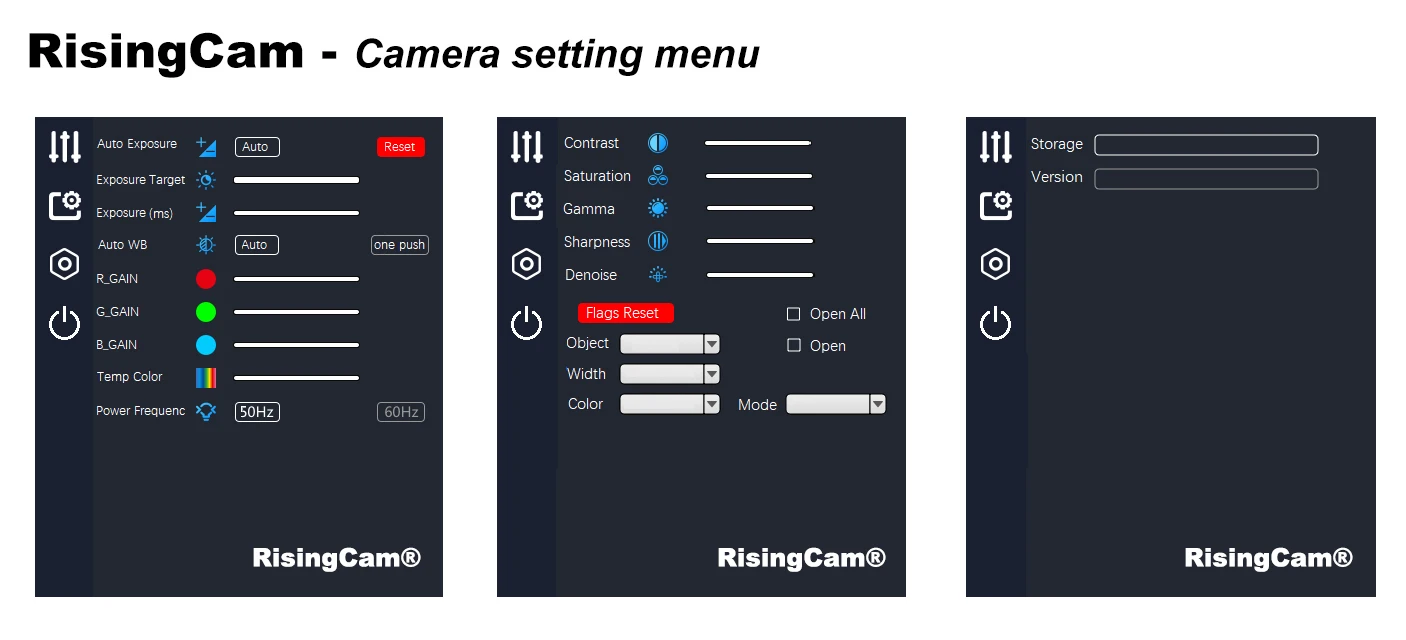

Camera setting menu and Live Measurement Menu

Camera setting menu include:

Auto exposure:Auto gain:White balance:Anti-flicker:Contrast: Brightness: Sharpness: Noise reduction: Red: Green: Blue: Color temperature: Time: Storage: Format

Language: Chinese, English

This Camera support Realtime measurement – Measure tools include:

Draw points: radius circle: two point circle: three point circle: measure two circle distance: concentric circle: line circle distance: polygon: cross line: rectangle: polyline: arc: curve: straight line: vertical line: parallel line: angle measurement : Text annotation: Mouse selected move: Selected delete: Delete all: Screenshot:

Calibration edit

Live Measuring

User click the measure tools button by mouse,

then Drag the mouse to complete the measurement

Click Screenshot can save Measure result on Picture.

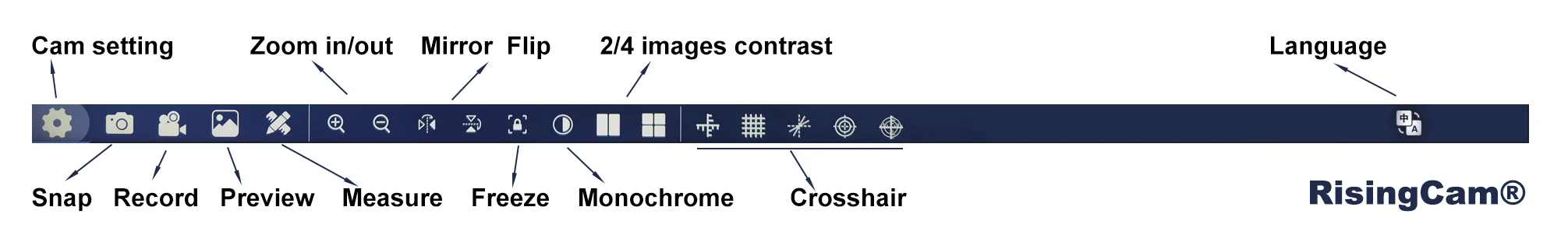

Camera Function menu include:

Zoom in – Max 10X

Image comparison

2 image compare – one is Realtime image, other one is picture captured by camera.

The picture on the left is a real-time picture, and the picture on the right is a picture taken by the camera. The mouse wheel can zoom in and out of the picture, and holding down the wheel can drag the picture to change the position.

4 image compare –After clicking the four-picture comparison button, the screen is divided into four parts. Double-clicking on a part can freeze the current image. Up to 4 images can be frozen for comparison. The mouse wheel can zoom in and out of the picture, and you can drag the picture to change the position

Gridlines –8 horizontal lines, 8 vertical lines, position, color, Line width adjustable

Double click the picture or video, camera will replay the picture or video on monitor

Preview Frame rate 60fps. Video Recording 30fps， the video and pictures can be Reply on monitor

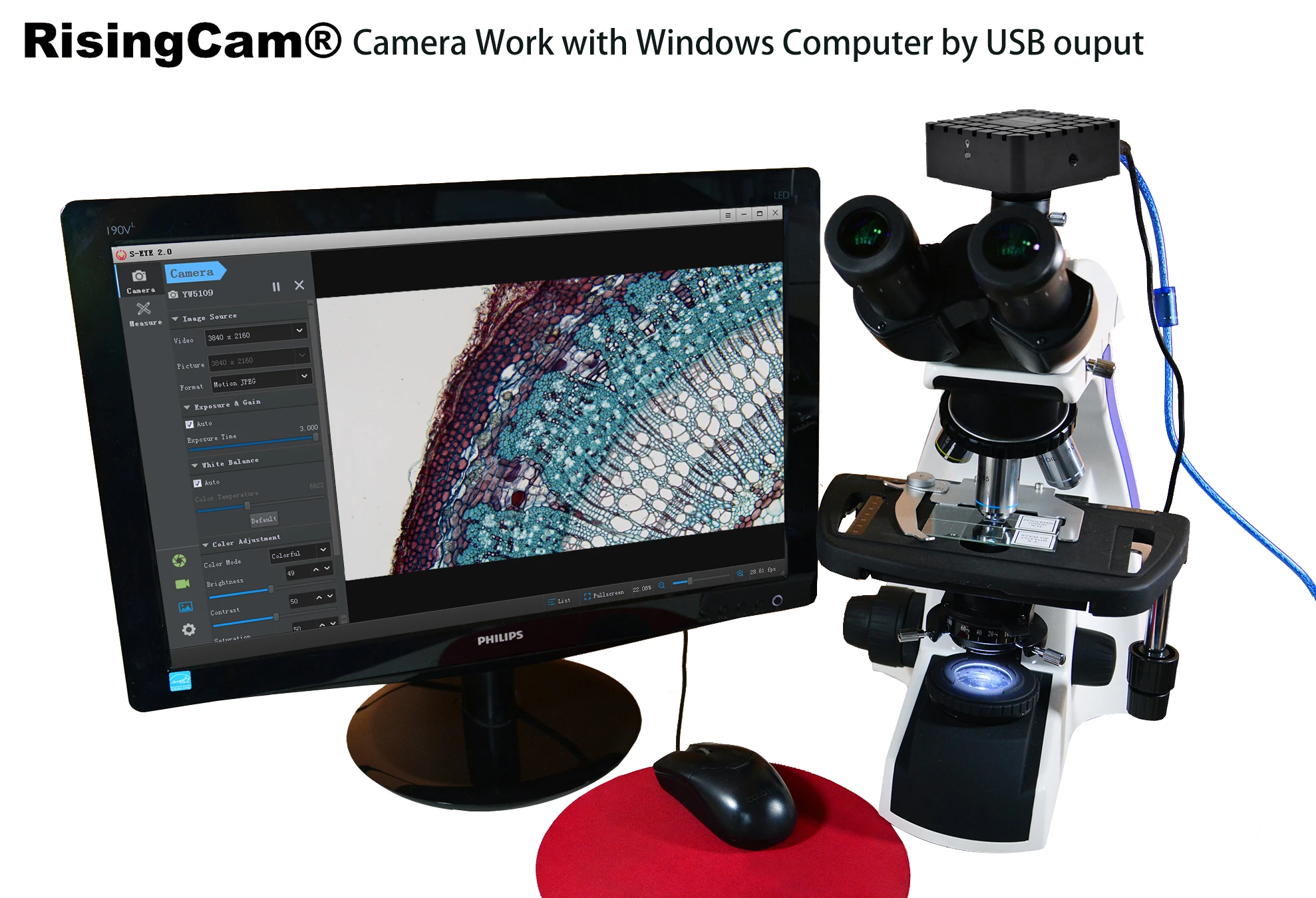

Camera working under USB output

RisingCam RT5109 4K Camera has USB output, it can work with windows computer

RisingCam will provide S-EYE2.0 software for buyers too, S-EYE2.0 only support Windows system computer

Camera work with Windows Computer connect steps

1. Install S-EYE2.0 software into Windows Computer

2. Connect Camera to Computer via USB cable, insert USB cable into camera's USB output port (Blue USB port)

3. DC-12V Power in Camera, then camera will keep blue light

4. Start S-EYE2 Software, select Camera model number, then user can see image from camera

NOTE:

if user use Laptop, please Make sure Windows system does not disable the camera,

and, please select laptop battery option to High performance (The Power Saver maybe limit USB working)

Camera working with S-EYE2.0 software under Windows computer

NOTE: Under USB output

Camera's Preview Max frame rate: 4K/30fps, 1080P/60fps

The computer hardware configuration will also affect the camera's frame rate.

The camera working with Ophthalmic surgery microscope

Ophthalmic surgery video taken by the this camera

Video Download link:

https://drive.google.com/open?id=1vLwqUxxUTWoMlMdZUgkZU-eQp1T9iJYS

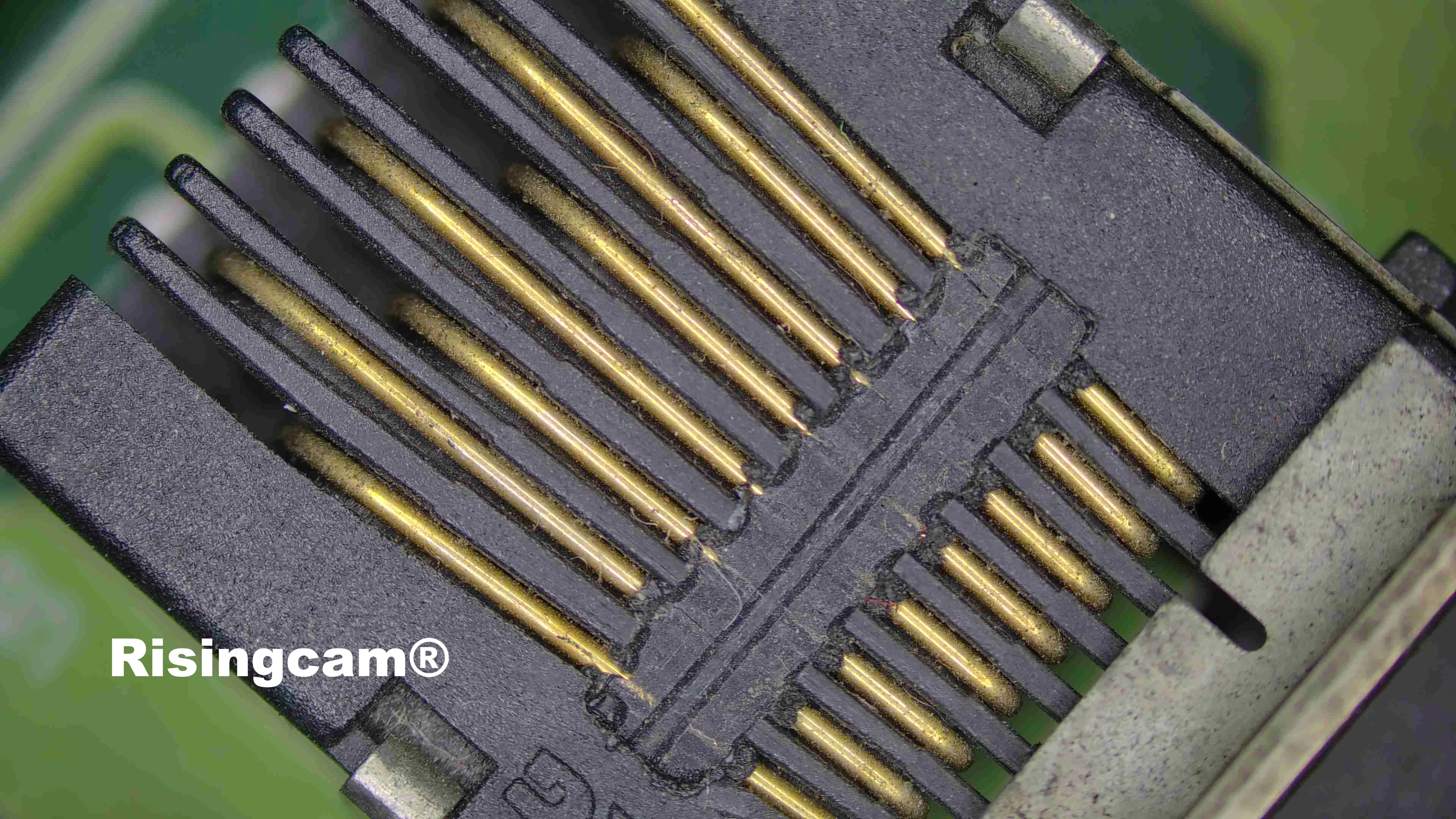

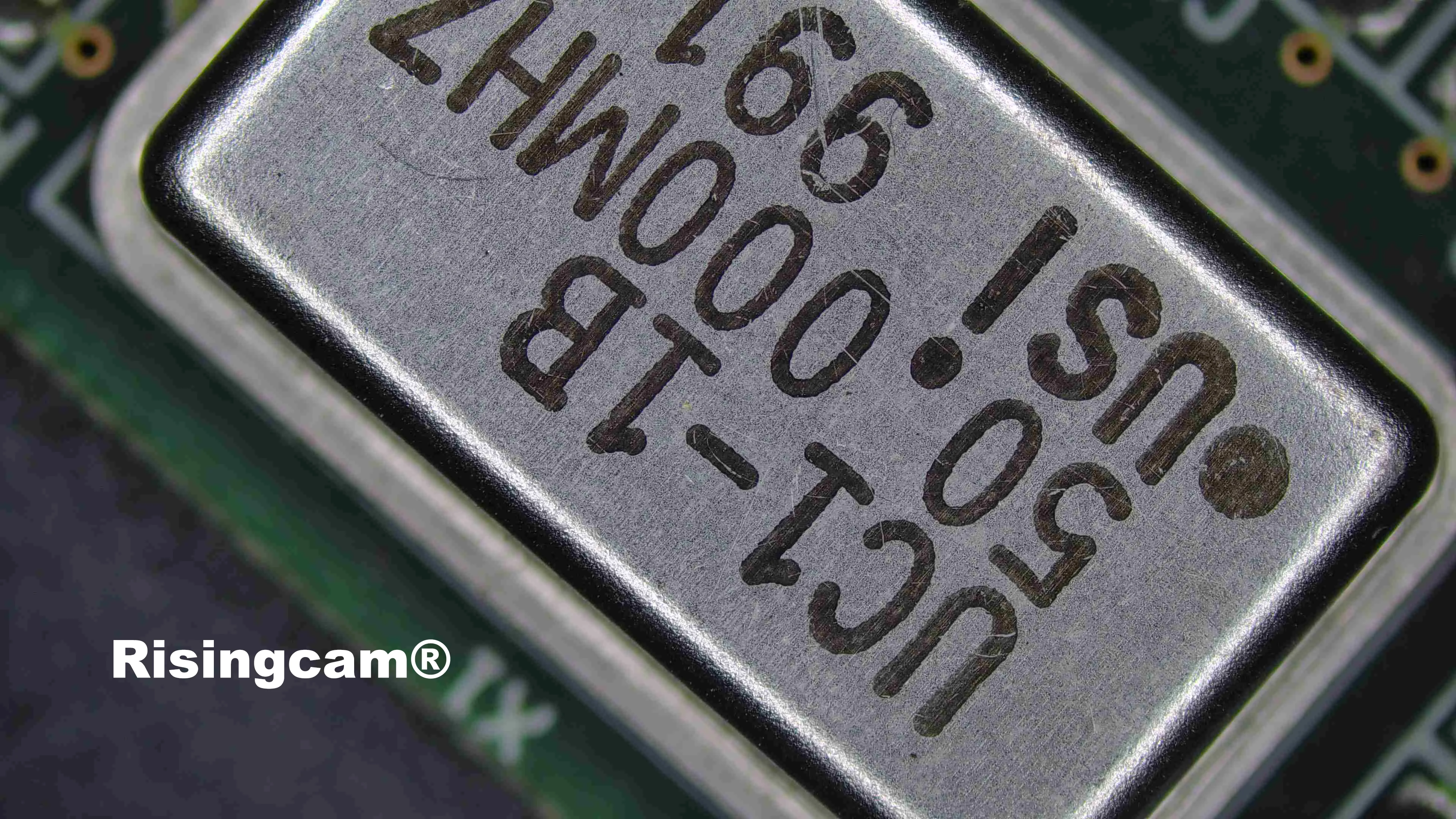

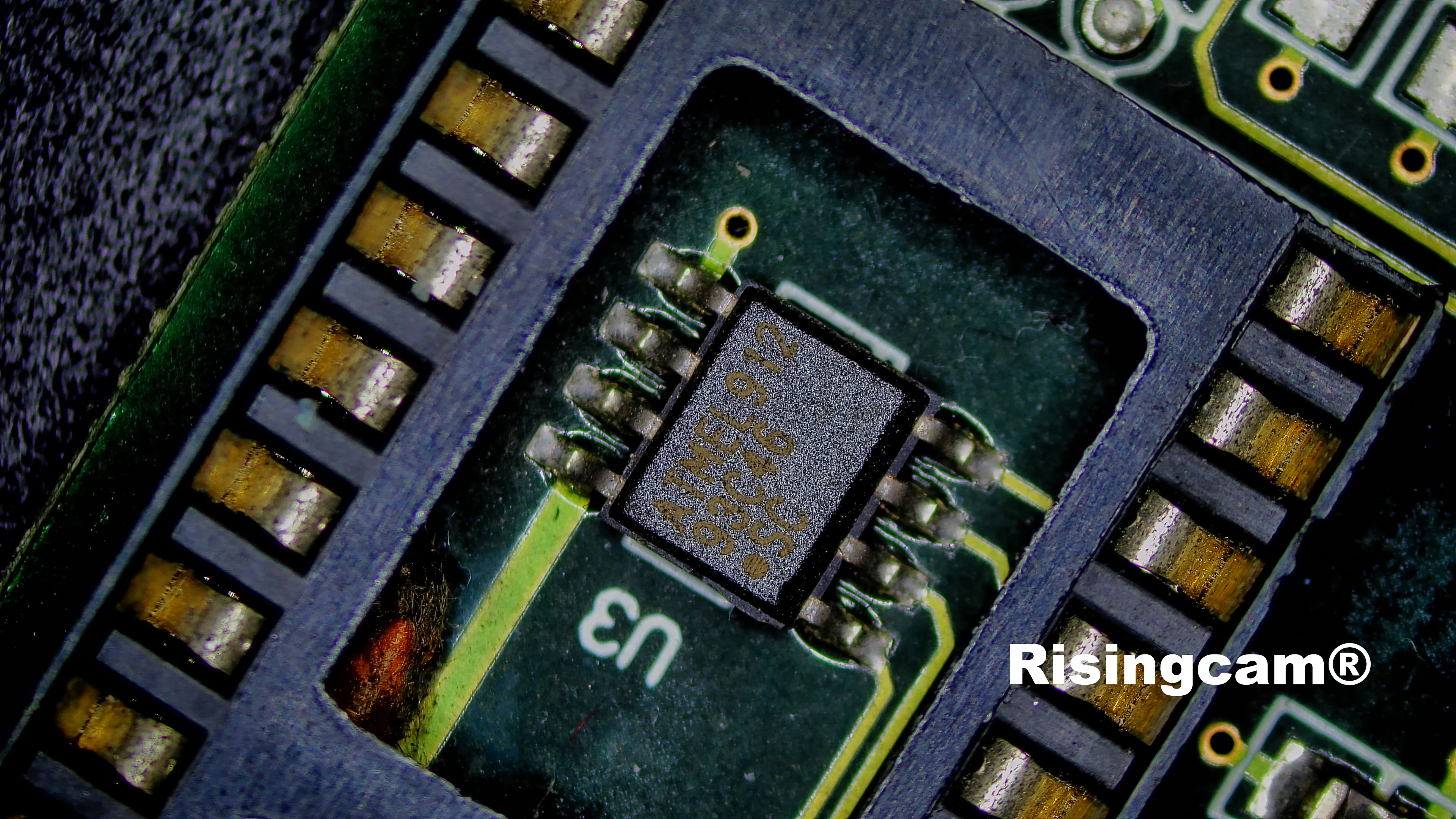

Sample Pictures

The standard packing include

1. amera

2. HDMI-compatible cable

3. USB Cable

4. Wireless mouse

5. Calibration slide

6. Power Supplier (EU, US and UK for choice)

Buyers could download camera manual from this link:

https://drive.google.com/file/d/1LG601twSNoGJ45YULuIri00ODYBgvfOi/view?usp=drive_link

1 Years
