Description
- Hign-concerned Chemical: None
- DIY Supplies: ELECTRICAL
- Brand Name: LanYuXuan
- Origin: Mainland China
- Place of Origin: Zhejiang, China
- Brand Name: ContrasTech
- Model Number: iBoost01-74UUVC410M/iBoost01-100CUVC410M
- Warranty: 1 Year
- Special Features: NIGHT VISION, Global Shutter, USB3 Vision, CameraLink Vision
- Sensor: CMOS
- Style: BOX Camera
- Function: Free SDK, Easy integration
- Video Compression Format: /
- Data Storage Options: Output images to PC via cameralink / usb3.0 cable.
- Application: Semiconductor Inspection, Plastic Sorting, Corona Discharge
- Customized support: Online technical support, Customized logo, Software reengineering, OEM
- Sensor type: GSENSE2020BSI(M,UV,RS)
- Sensor Size: 1.2"(13.31×13.31)
- Pixel Size (μm): 6.5×6.5μm
- Exposure time: 12μs~1h
- Dynamic range: 65.58dB
- Recording System: Picture and Video
- Interface: USB3.0/CameraLink
- Power Supply: DC12V,3A
- Spectral Range: 200-1100nm
- Operating Temperature: -10~ 50℃ (Working),-20~ 60℃ (Storage)
Dear friends, welcome to our store. If you need other models of this product, please contact us, WhatsApp +86 18817005262 Email: 361901062@qq.com, If you need to buy Chinese products recently, you can ask me first, I can find any product for you and reply you as soon as possible to offer you a plan and reasonable price. Have a nice life:)
*Filters are provided for lenses, please contact us if you need!
*Filters are provided for lenses, please contact us if you need!
|
Parameters
|
iBoost01-74UUVC410M
|
iBoost01-100CUVC410M
|
|
|
Sensor type
|
4.2MP / GSENSE2020BSI(M,UV,RS)
|
|
|
|
Pixel Size (μm)
|
6.5 x 6.5
|
|
|
|
Sensor Size
|
1.2”(13.31×13.31)
|
|
|
|
G light sensitivity
|
1.1×108 (e-/((W/m2).s)) Peak QE 94% @550nm
|
|
|
|
Dark current
|
0.21(e-/s/pix) @-20C
|
|
|
|
Dynamic range
|
65.58dB
|
|
|
|
SNR
|
34.83dB
|
|
|
|
FPS / Resolution
|
74@2048 x2048(11-bit ADC) 74@1024 x1024(11-bit ADC)
|
100@2048 x2048(11-bit ADC) 100@1024 x1024(11-bit ADC)
|
|
|
Bit depth
|
8 Bit / HDR 16 Bit
|
8 Bit / HDR 16 Bit
|
|
|
Binning
|
1×1，2×2
|
|
|
|
Exposure time
|
12μs~1h
|
|
|
|

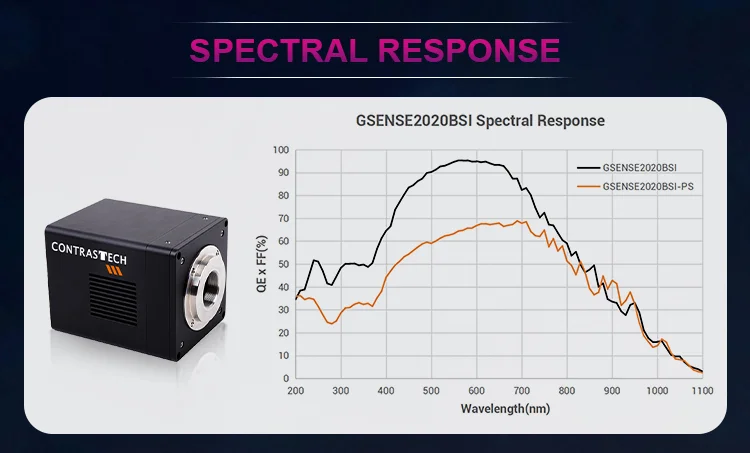

Spectral Range
|
200-1100nm
|
|
|
|
Capture/Control SDK
|
Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc
|
|
|
|
Recording System
|
Picture and Video
|
|
|
|
Cooling System*
|
Two-stage TE-cooling System upto 40 ° C below Camera Body Temperature
|
|
|
|
IO Interface
|
1 opto-coupler isolated input, 1 opto-coupler isolated output, 2 GPIOs
|
|
|
|
Interface
|
USB3.0
|
Cameralink
|
|
|
Operating Temperature
|
-10~ 50℃ (Working)，-20~ 60℃ (Storage)
|
|
|
|
Operating Humidity
|
30~80%RH(Working)，10~60%RH(Storage)
|
|
|
|
Power Supply
|
DC12V，3A
|
|
|
|
Operating System
|
Windows 7 / 8 /10 /11(32 & 64 bit )，Mac OS，Linux
|
|
|
|
PC Requirements
|
CPU:Intel Core 2 2.8GHz or Higher
|
|
|
|
|
Memory: 2GB or More
|
|
|
|
|
Display: 17″ or Larger
|
|
|
