Description
- Hign-concerned Chemical: none
- Package: SMD

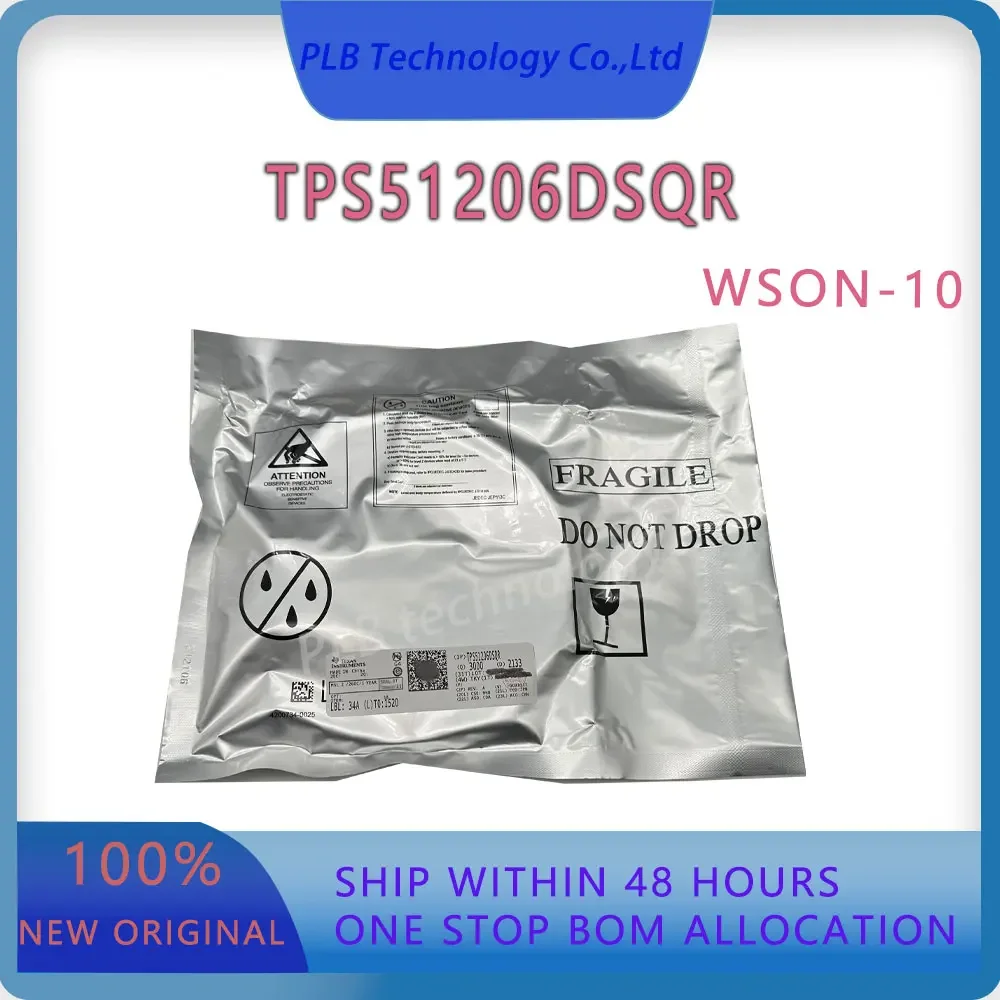

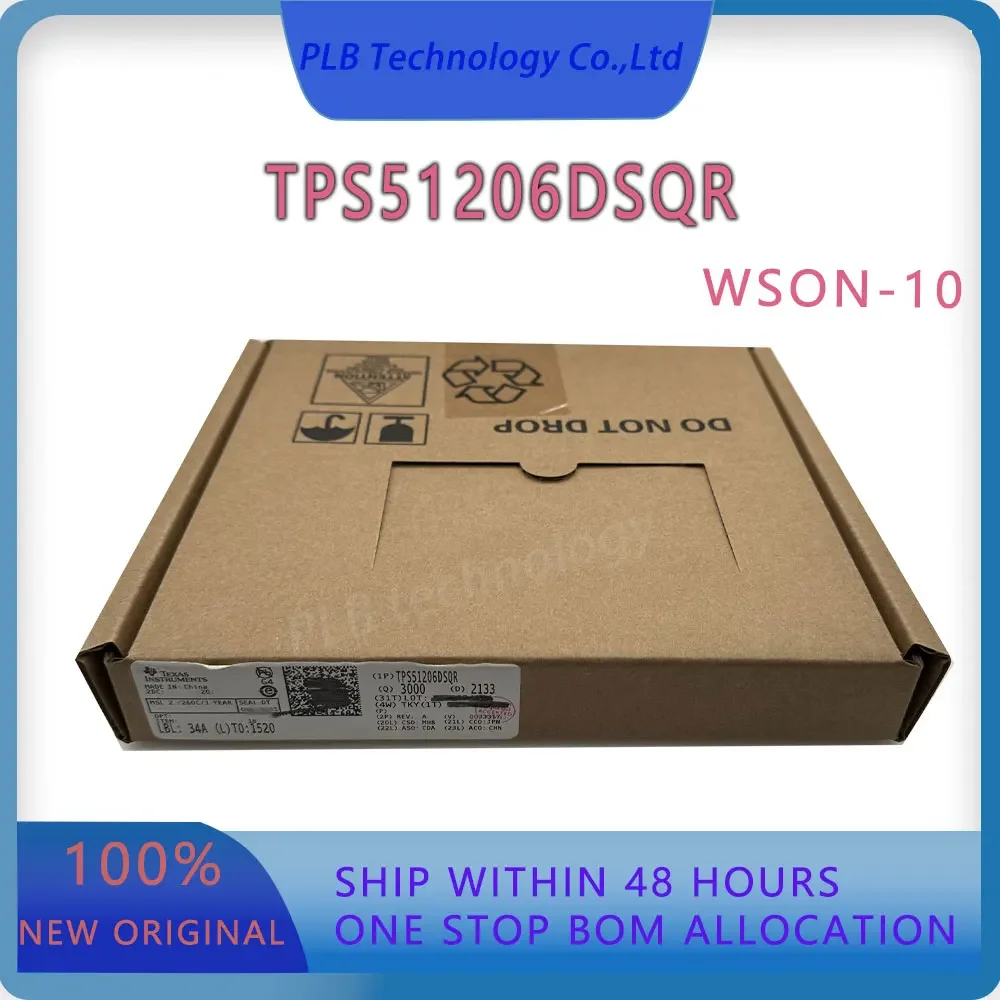

- Model Number: TPS51206DSQR
- Operating Temperature: -40 to 85
- Supply Voltage: 3.1 V to 6.5 V
- Condition: New
- Type: Voltage Regulator
- Origin: Mainland China
- Package | Pins: WSON – 10
- Package qty | Carrier: 3,000 | LARGE T&R
Features for the TPS51206
-
Supply Input Voltage: Supports 3.3-V Rail and 5-V Rail
-
VLDOIN Input Voltage Range: VTT+0.4 V to 3.5 V
-
VTT Termination Regulator
-
Output Voltage Range: 0.5 V to 0.9 V
-
2-A Peak Sink and Source Current
-
Requires Only 10-µF MLCC Output Capacitor
-
±20 mV Accuracy
-
-
VTTREF Buffered Reference
-
VDDQ/2 ± 1% Accuracy
-
10-mA Sink and Source Current
-
-
Supports High-Z in S3 and Soft-Stop in S4 and S5 with S3 and S5 Inputs
-
Overtemperature Protection
-
10-Pin, 2 mm × 2 mm SON (DSQ) Package
Description for the TPS51206
The TPS51206 device is a sink and source double date rate (DDR) termination regulator with VTTREF buffered reference output. It is specifically designed for low-input voltage, low-cost, low-external component count systems where space is a key consideration. The device maintains fast transient response and only requires 1 × 10-µF of ceramic output capacitance. The device supports a remote sensing function and all power requirements for DDR2, DDR3 and Low-Power DDR3 (DDR3L), and DDR4 VTT bus. The VTT current capability is ±2-A peak. The device supports all of the DDR power states, putting VTT to High-Z in S3 state (suspend to RAM) and discharging VTT and VTTREF in S4 or S5 state (suspend to disk).
The TPS51206 device is available in 10-Pin, 2 mm × 2 mm SON (DSQ) PowerPAD™ package and specified from –40°C to 105°C.
Applications
• DDR2, DDR3, DDR3L, and DDR4 Memory Power
Supplies
• SSTL_18, SSTL_15, SSTL_135 and HSTL
Termination
• Telecom and Datacom, GSM Base Station, LCDTV and PDP-TV, Copier and Printer, Set-top Box
