Description
- Hign-concerned Chemical: None
- Model Number: TGP508 WiFi Thermostat
- Wattage: 3W
- Brand Name: VANCOO
- VANCOO Model: TGP508 WIFI
- Origin: Mainland China
- Certification: CE
- APP Control: "Tuya Smart / Smart Life" App
- Voice Control: Yandex Alice; Amzone Alexa; Google Home
- Set Temp. Range: 5-95℃
- Displays Temp. Accuracy: 0.1℃
- On/Off Temp. Difference: +-0.5℃
- Power Supply: 110V-220V
- Rated Current: 16A(EP) / 3A(WP,WPB)
- EP: for electric floor heating
- WP: for water floor heating
- WPB: for gas boiler via 'dry contact'
- External (Floor) Sensor: only in EP model
- Internal (Air) Sensors: Yes
- Thermostat type: wifi floor heating thermostat
- Thermostat style: heating controller wifi
- Thermostat name: heating thermostat
- WiFi Smart Thermostat: for underfloor heating
2023 New Wifi Thermostat with Tuya Smart Home Thermoregulator for Warm Floor Electric Underfloor Heating Temperature Controller Alice WiFi Thermostat Heating Controller WiFi heating thermostat thermostat with wifi electric floor

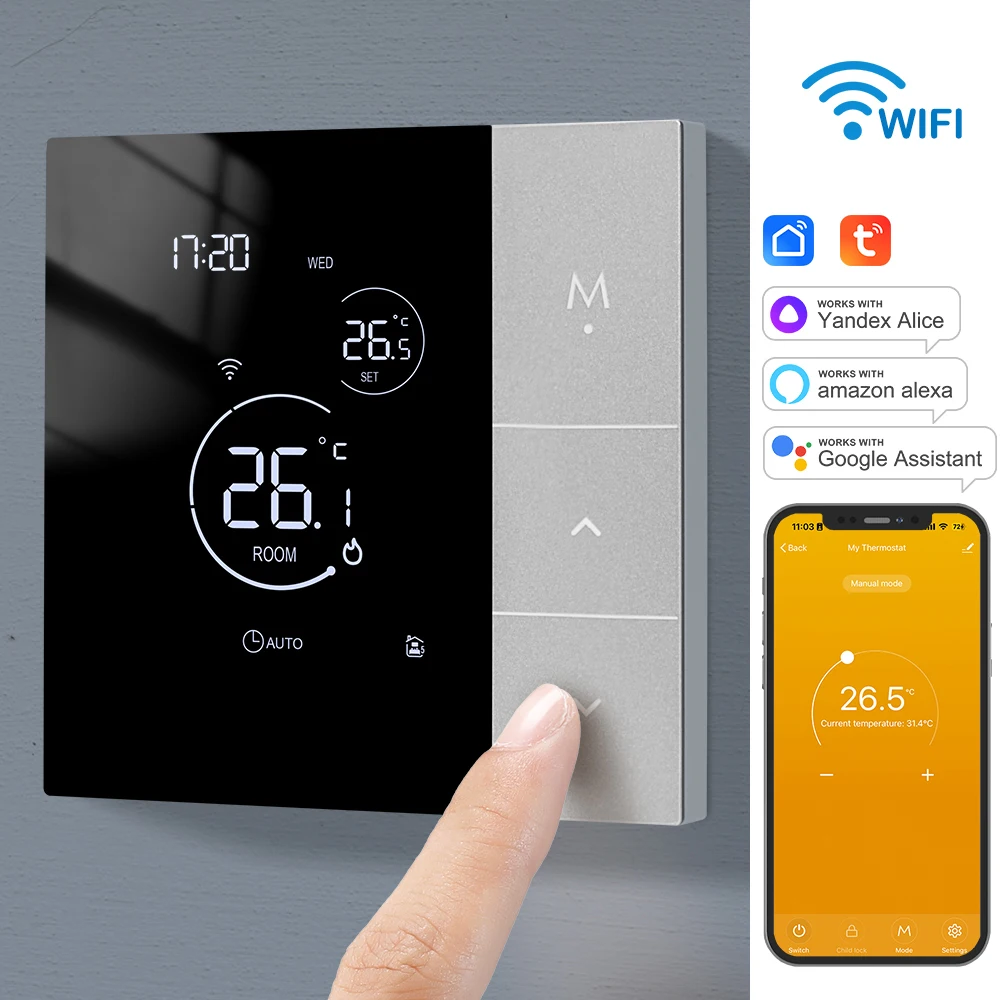

New WiFi Thermostat — TGP508.

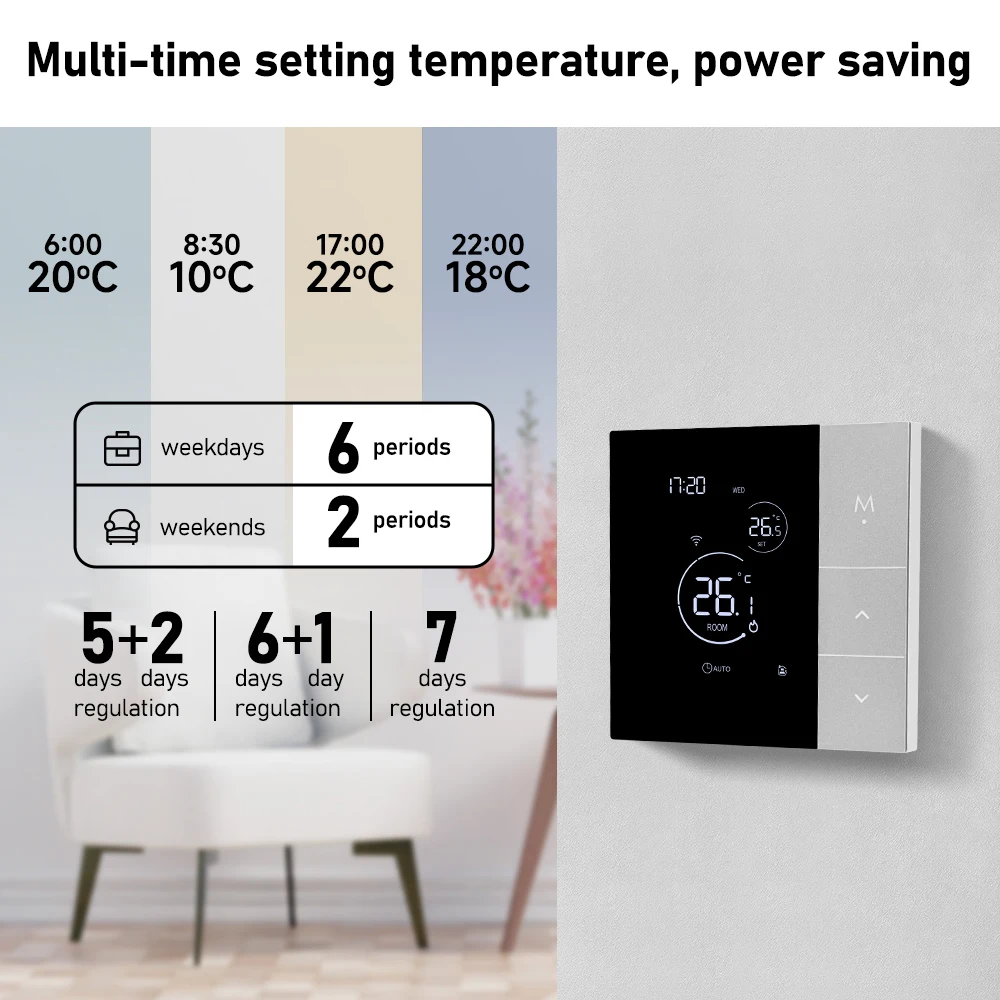

Unique vertical screen buttons for easy operation; High-end black and gold color matching is more applicable; +-0.5°C temperature control accuracy makes the body feel more comfortable; The combination of programmed control and manual control is more energy-efficient and convenient!

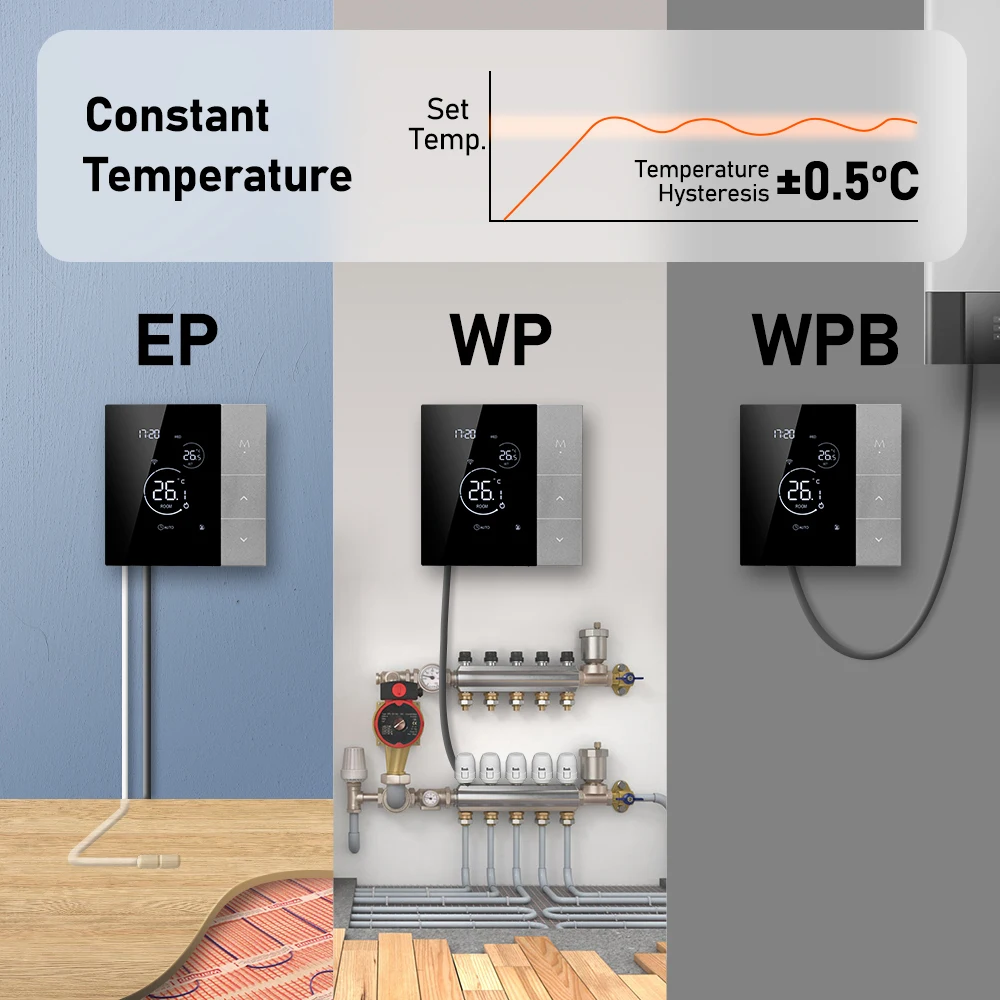

TGP508-WIFI-EP:(for Electric Floor Heating) is used control Heating Cable/Heating Mat/Heating Film etc. electric floor/underfloor heating system.
TGP508-WIFI-WP:(for Water Floor Heating) is used control Valves/Normally Closed Actuators/Normally Opened Actuators etc. water floor/underfloor heating system.
TGP508-WIFI-WPB:(for Boiler) is used control gas boiler/electric boiler and other equipment which are connected via "Dry Connect".
SPECIFICATION
Type :WiFi Smart Thermostat
APP :Smart Life/Tuya Smart
Voice Control:Amazon Alexa,Google Home,Yandex Alice etc
Temperature Sensor:NTC
Voltage:100-240V AC,50/60HZ
Max. Current Load: 16A/3A
Temperature Accuracy: +-0.5℃
Self-Consumption Power:<1W
Display Range:5℃-95℃
HIGHLIGHT

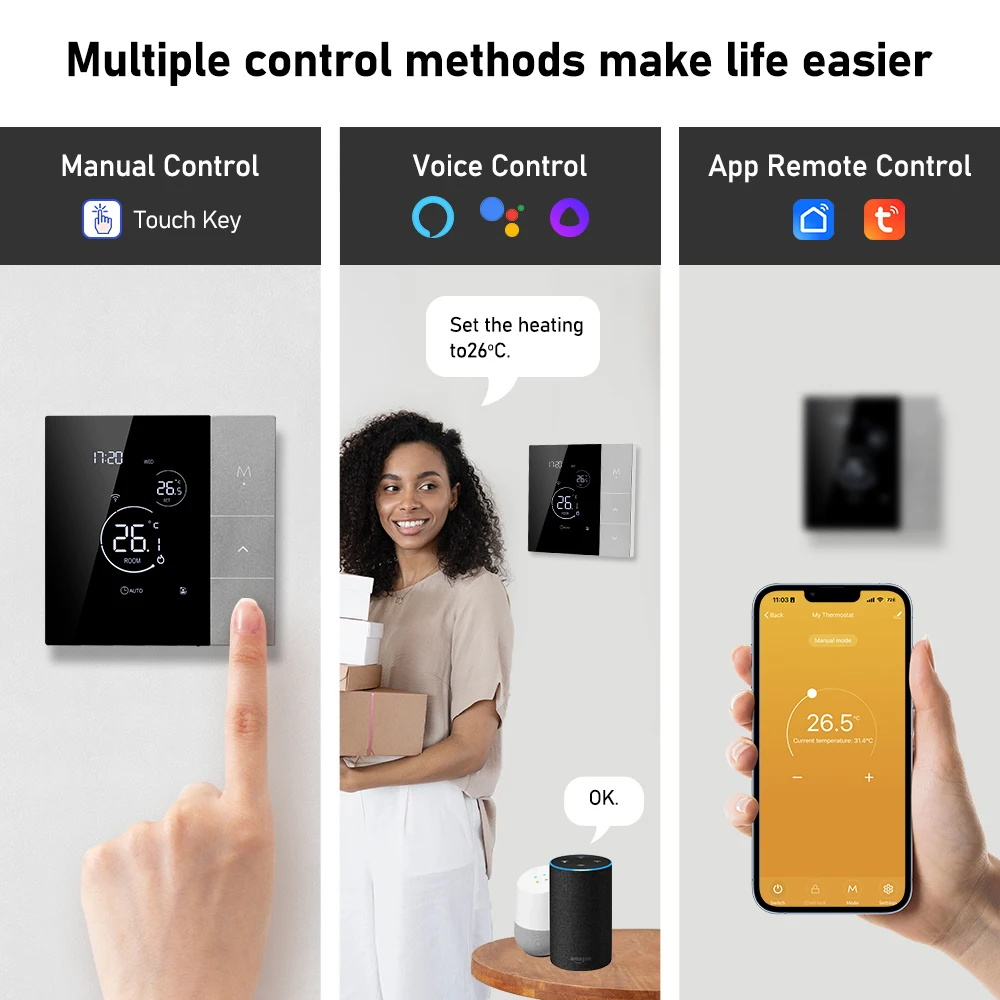

[APP Remote Control] —- Download Smart Life/Tuya Smart APP on your phone&Tablet to control the thermostat anywhere/anytime
[Hand Free Voice Control] —- Compatible with Amazon Alexa,Google home,Yandex Alice ect ,a simply command to voice control the thermostat

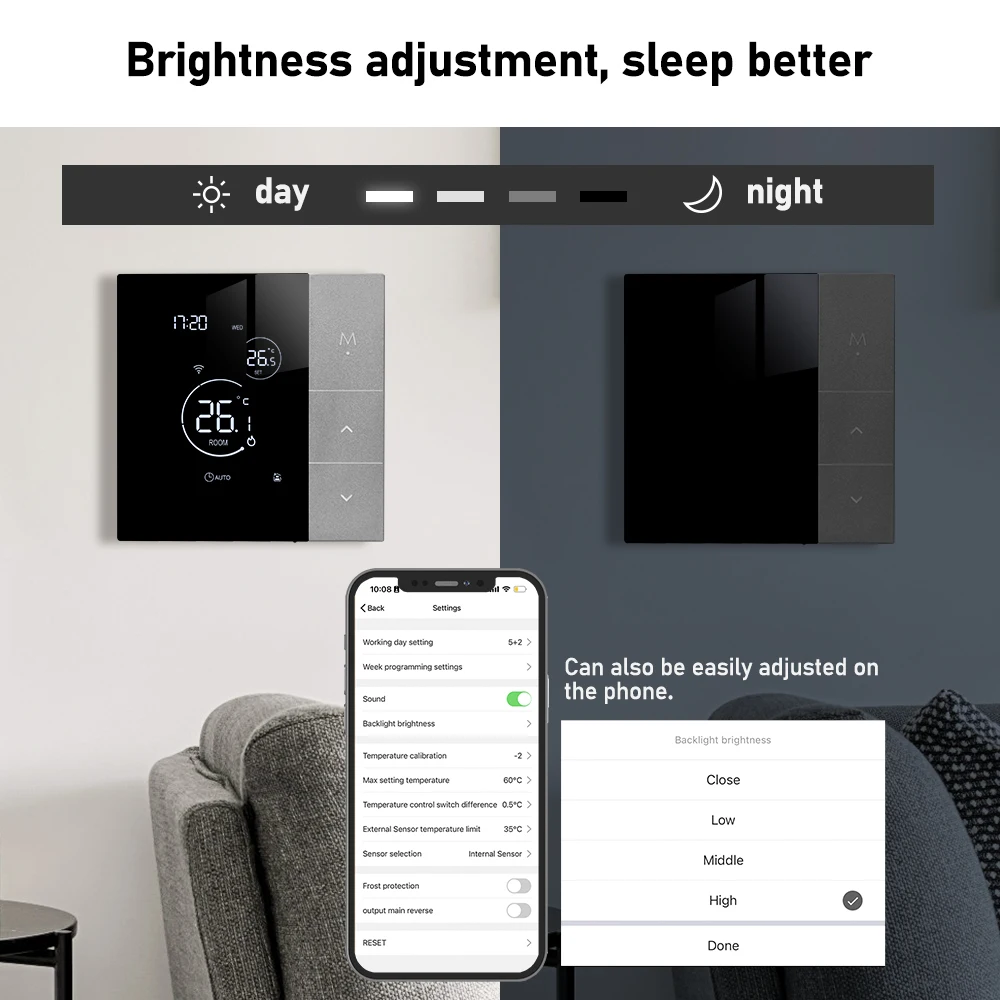

[Screen Backlight Brightness Adjustable]— 3 level screen backlight brightness adjustable,also backlight can be turned off,offer a nice sleeping environment for you
[Accurate Temperature Adjustment,Detection Display and Hysteresis ]—The accuracy have reached 0.5℃，0.1℃ and 0.5℃,accurately control your room temperature
[Simple Manually Mode Change Operation ]—Press“M”key to change mode between Cooling,heating and ventilation
[Ventilation Mode Adjustable]-Low,Middle,High and Auto 4 mode for option
[Family Share Function] — You can share the thermostat to your family with the limited right,create a smart home together with your family member
[Linkage Function] — It can linkage with other smart appliance in your home to create smart theme like leave home mode,back home mode,dinner mode,sleeping mode ect
[Group-Control Function] — the thermostat can be set in group with other thermostat in different room, realize group control function in special scene
[Child Lock Function]— Child Lock function avoid kid`s operation on it. Make sure your home in smart and safe status

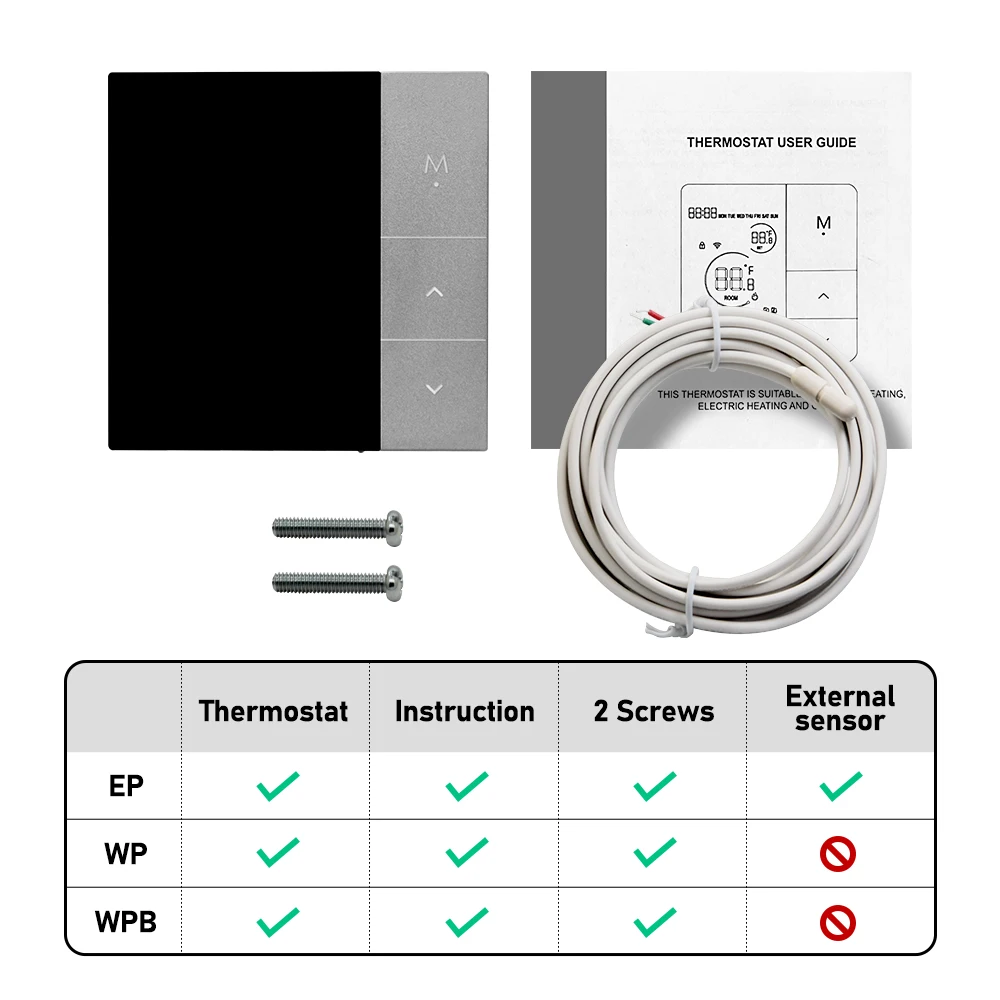

1pc thermostat;
1pc English manual;
2pcs screws.
1pc floor sensor (only in EP model)
(If the English manual is difficult to read, please contact the seller to send the setting video.)
Wiring diagram
Product Shows:
