Description
- Material: Plastic
- Certification: CCC
- Switch Type: Sensor Switch
- Warranty: One year
- Model Number: 220V 50Hz Sound Voice Sensor Detector
- Features: Intelligent Auto on Off Light Switch
- Item Type: SWITCHES
- Brand Name: Aideepen
- Is Smart Device: no
- Origin: Mainland China
- Certification: none
Description:
Â
1. Full automatic induction: when the switch reaches a certain decibel of sound, the light will turn on automatically, and it will turn off automatically after a certain time delay, saving energy and electricity
Â
2. The high-power silicon controlled rectifier is used to control the output, which can fully meet various needs.
Â
3. It can load energy-saving lamps, LED lamps, fluorescent lamps, etc.
Â
4. Wide temperature limit, – 20 ℃~65C, normal operation.
Â
5. The switch shell is PC, fire retardant.
Â
6. Automatic light metering: it is controlled by light sensitivity, and it is not sensitive during the day or under strong light, but can be sensitive at night or under weak light
Â
7. Automatic delay: once the switch is triggered, if the sound stops, the time before the last stop is taken as the reference point to start the delay (the delay time is the time set by the switch through the resistor adjustment. The time is 30 seconds and 60 seconds
Â
8. High sensitivity and reliability, realizing smart home, safe, power saving and durable.
Â
Â
Â
Â
Â
Â
Specifications:
Â
Product size: 50 * 31MM
Â
Input voltage: 110V-220V
Â
Output voltage: 110-220V
Â
Drive power consumption: 0.01W
Â
Applicable power:<60W
Â
Delay time: 30/60 seconds
Â
Voice sensitivity: 50DB
Â
Light control sensitivity: 15LUX
Â
Â
Â
Â

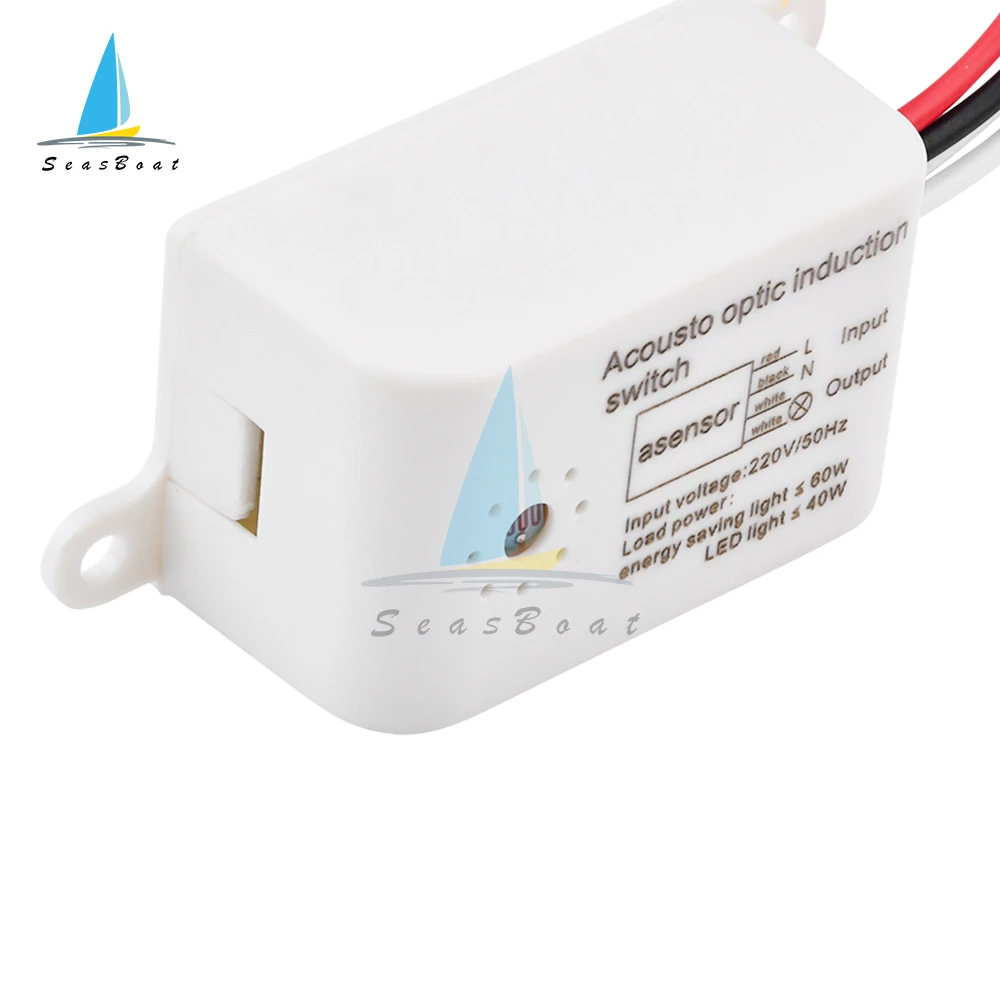

Wiring method:
Â

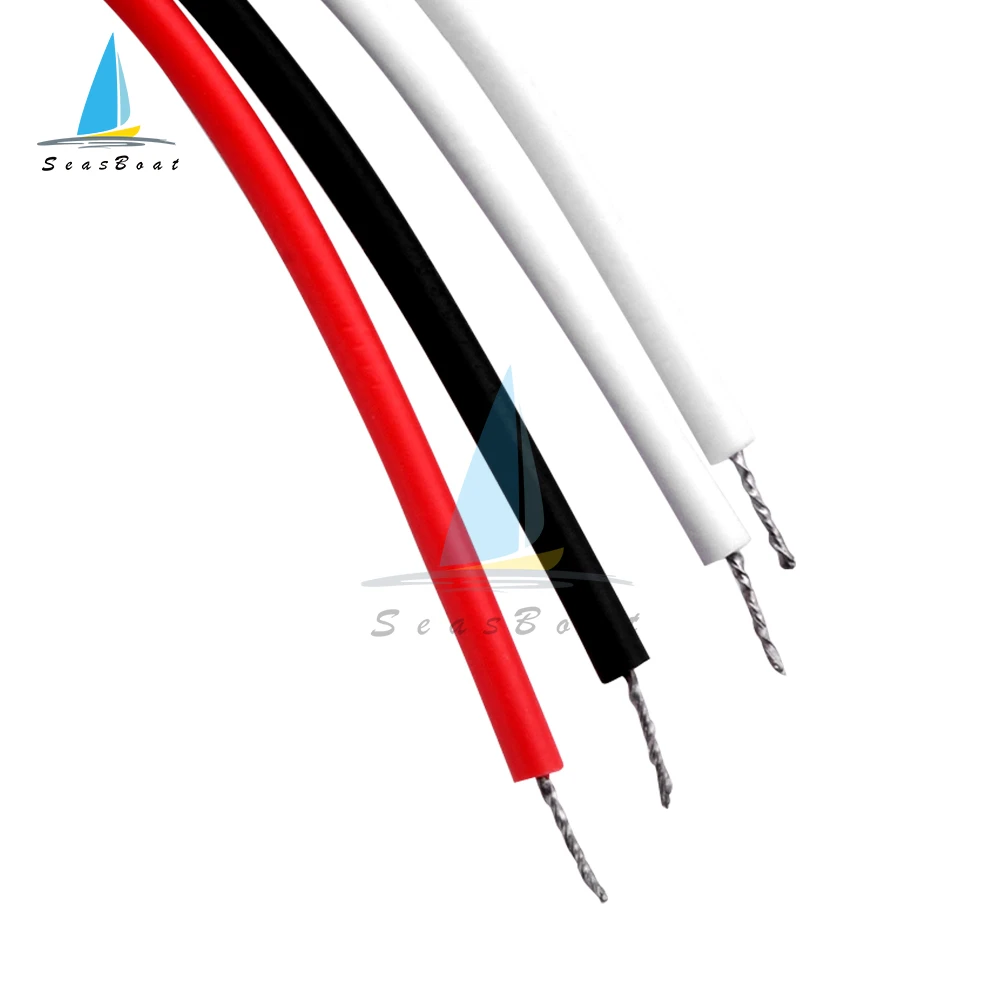

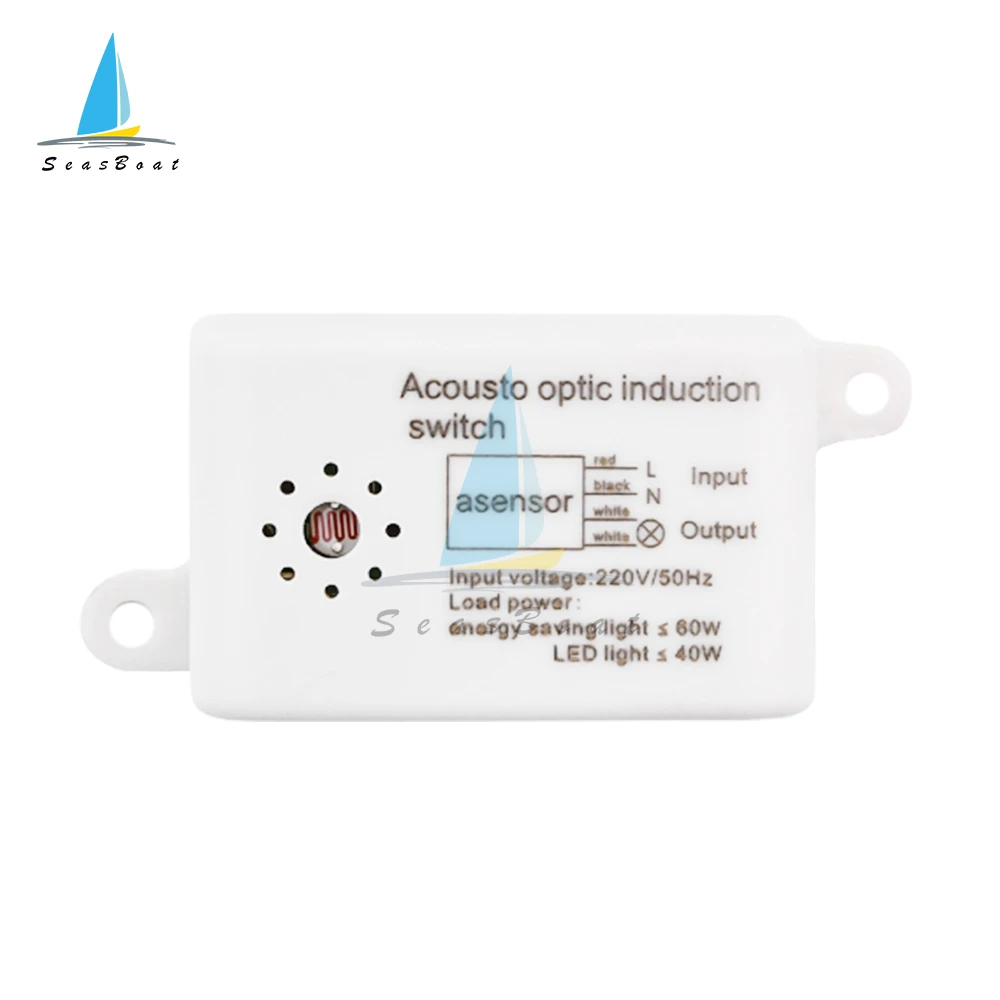

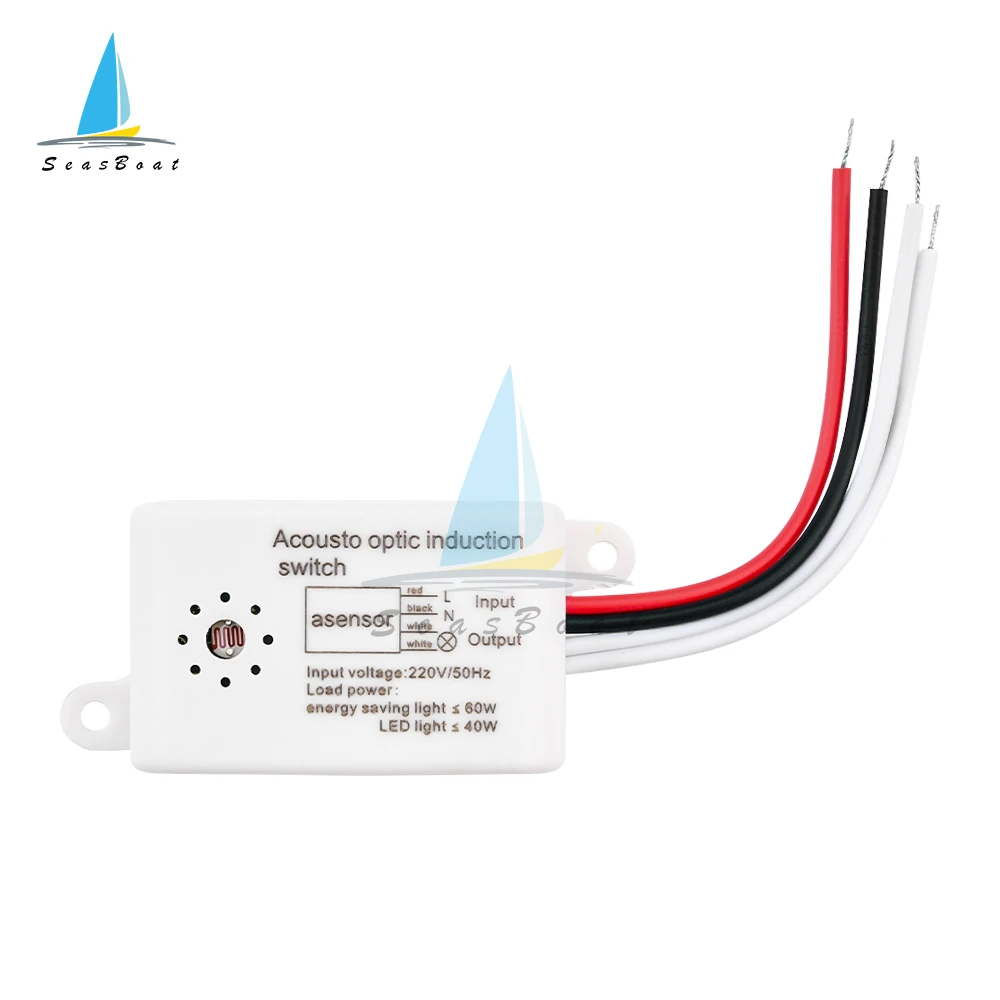

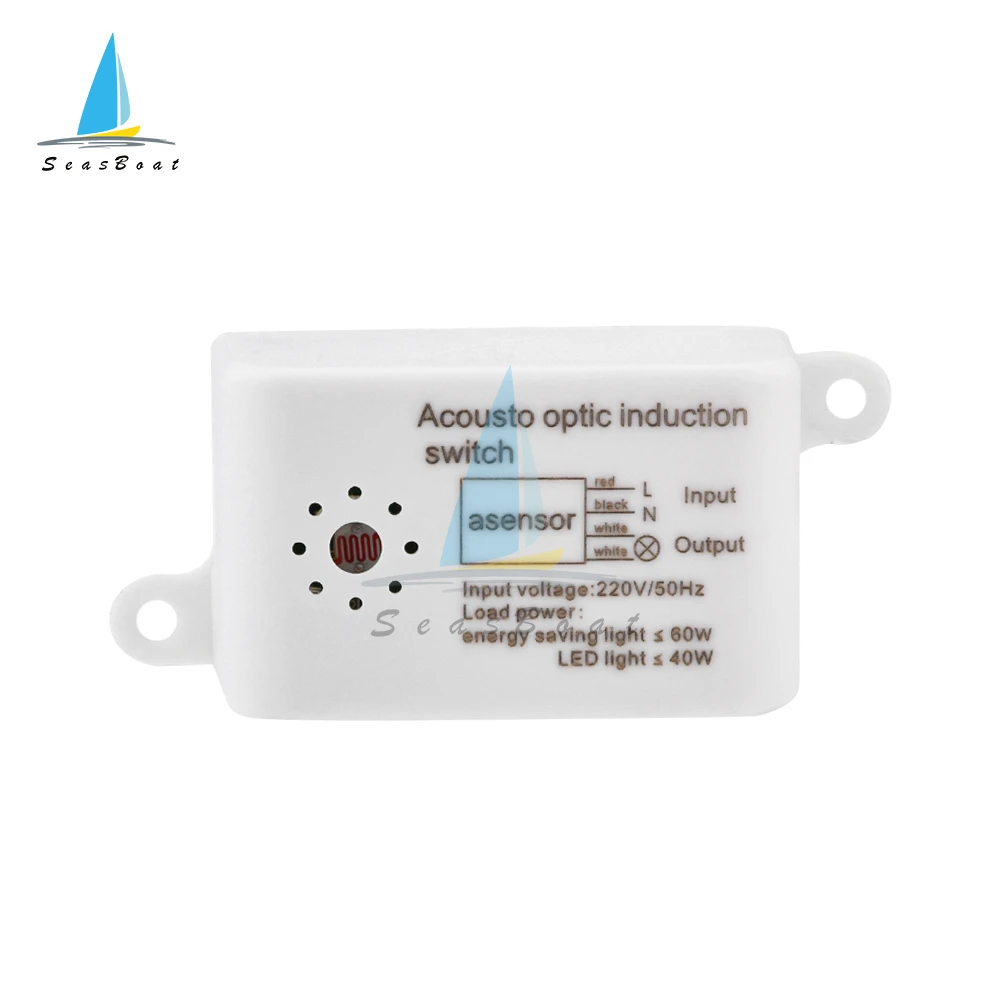

L "" and "N" "are printed on the plastic housing. The red line and black line are respectively connected to the live line and zero line of the family. The plastic housing is printed with" L1 "", and the white line and white line at "N" "output are directly connected to the driving power supply of the LED lamp.
Â
Â
Â
Â
Â
Scope of application:
Â
It is applicable to the garage, corridor, walkway, entrance, toilet, elevator room and other public places in hotels, hotels, offices, factory warehouses, residential areas, etc. This switch can only load incandescent lamps (bulbs) and energy-saving light sources
Â
Â
Â
Â
Â
Attention:
Â
The wiring shall be operated according to the instructions. Live working is not allowed. The lamp holder shall be installed in a damp proof place and directly installed on the wall or ceiling. No object shall be covered on the surface to avoid affecting the normal use of the lamp. Then directly connect the switch in series to the 220V live wire.
Â
Package Included:Â
1 x 220V 50Hz Sound Voice Sensor Detector Intelligent Auto on Off Light Switch Accessories Home Improvement Smart Switches Module
