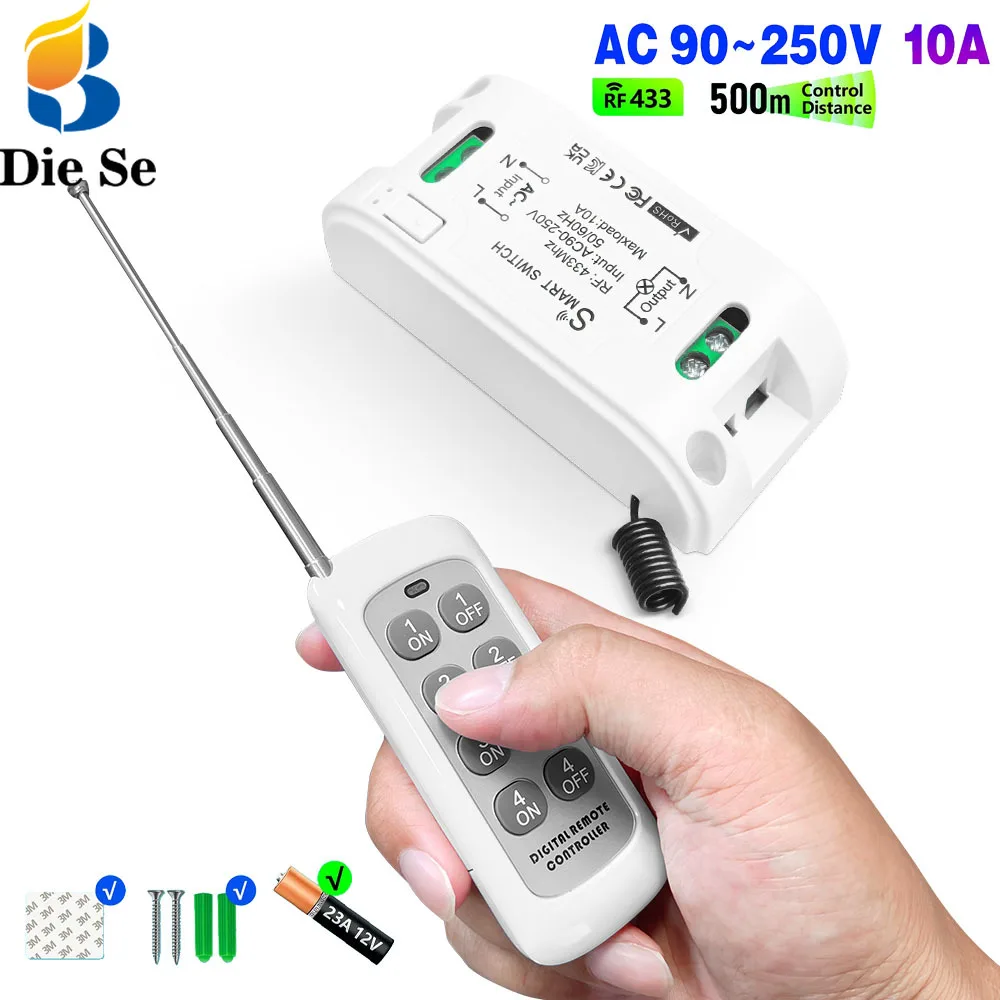

433mhz Rf Remote Control light Switch AC 110V 220V 10A Relay Controller on Off Push Button Transmitter for Led Home Improvement

●Have you ever encountered the following problems
▶The wires reserved on the wall are not well positioned or not enough.
▶ There is no dual control switch on the stairs, so the lights cannot be turned off upstairs or downstairs.
▶ Reluctance to get up and turn off lights (or other devices) in winter
▶ The elderly have difficulty moving. There is no light switch next to the bed. It is inconvenient to get up and go to the toilet at night. It's too dark and it's easy to fall over.
▶ Too many wires are too messy, which increases safety risks.
▶ Want to turn devices on and off remotely using a remote control
▶ you bought some wireless devices, but the distance is not enough and the reception signal is even unstable.
▶There are too many wireless receivers and a lot of remote controls need to be kept, which is very inconvenient.

***************************************************************
●Our products can solve your problems
♦Remote Control
✔Connect our receiver with your device (such as LED, light, fan and so on), you can use the remote control to control your device remotely✔
♦8 button transmitter
✔Paired with an 8-button remote control, one remote control can control 4 receivers, so there is no need to store too many receivers.✔
♦Ultra-long remote control distance
✔Remote control distance from 10 meters to 500 meters,The fewer obstacles, the farther the remote control distance is✔
♦Small details make big changes

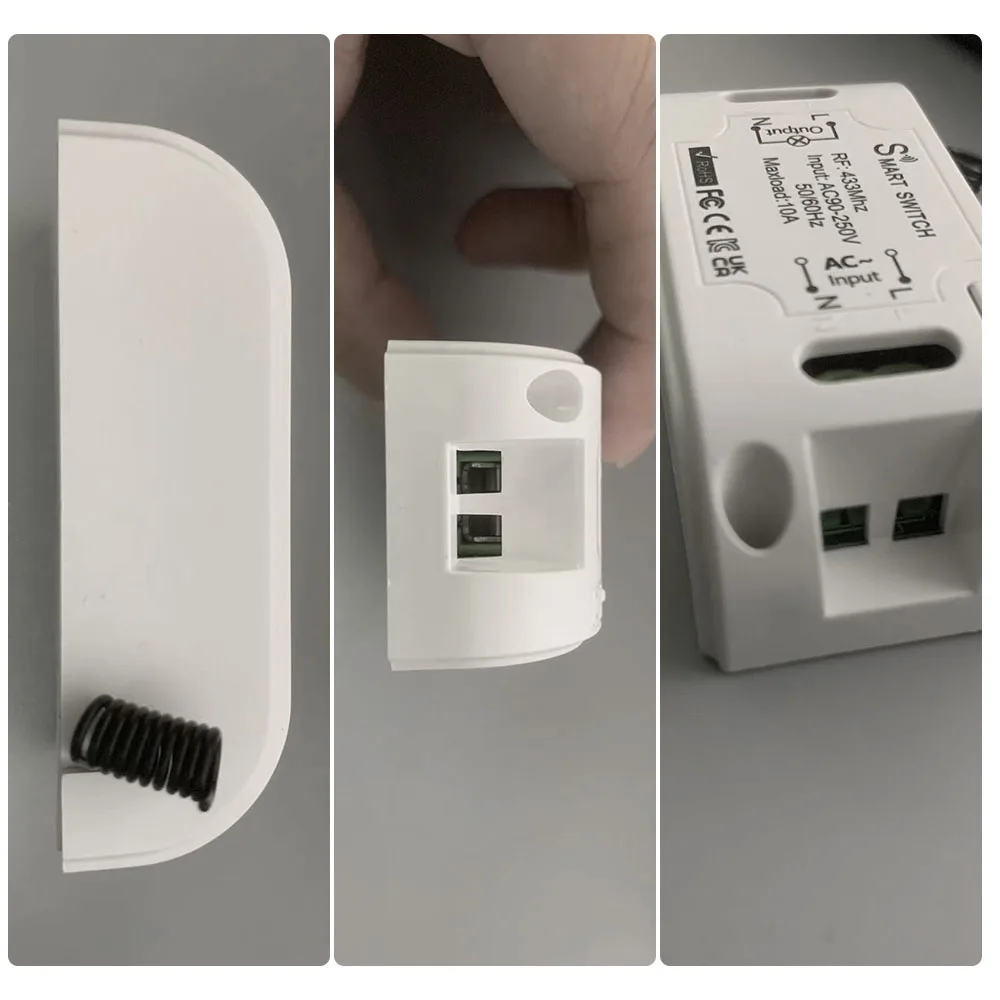

✔The learning button is easy to press, the indicator light is clearly visible, and the antenna is outside the case to increase the stability of the received signal.✔
♦easy to use
✔433mhz rf remote control, no need for wifi, the elderly and children also know how to use it, press the "on" button to turn on the device, press the "off" button to turn off the device✔
♦Safety
✔The receiver is equipped with a 10A relay, which meets the usage conditions of most electrical appliances.✔
♦ Supports Multiple Remotes
✔One receiver can be controlled by multiple (15+) remote controls✔

and We made some change

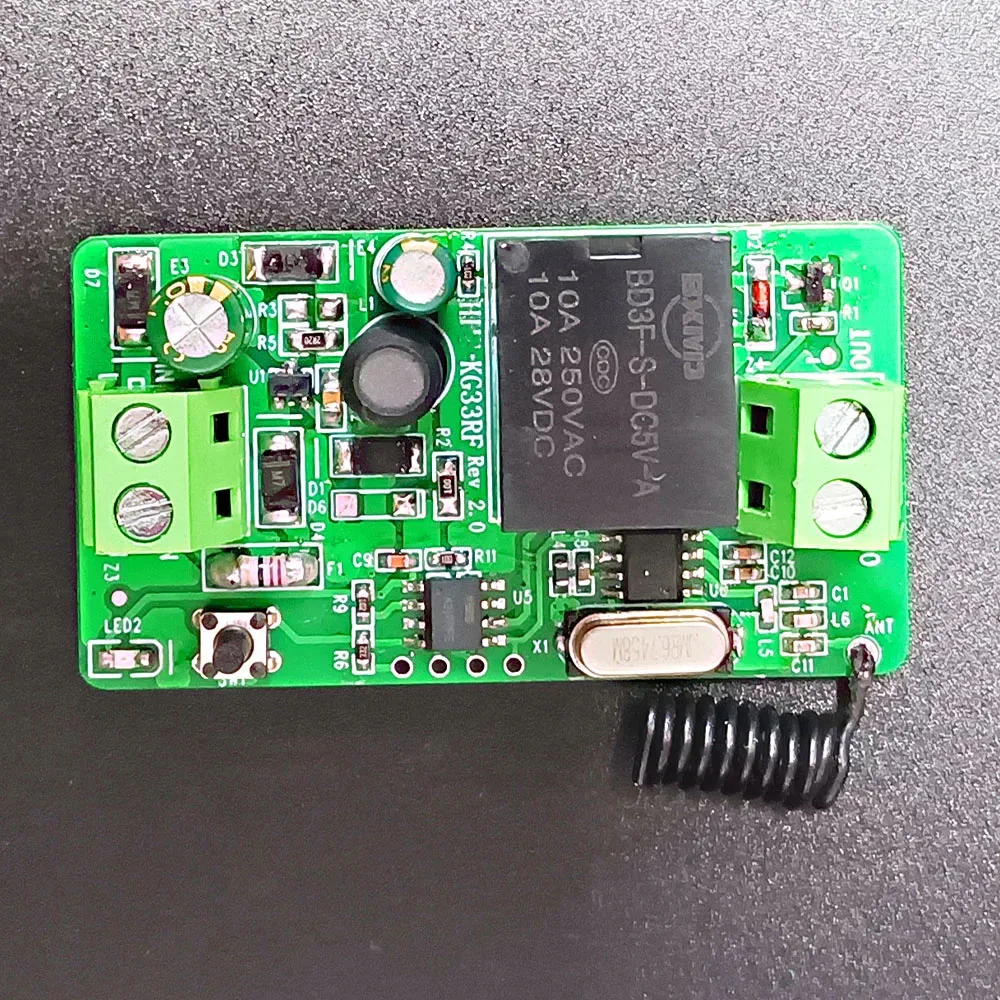

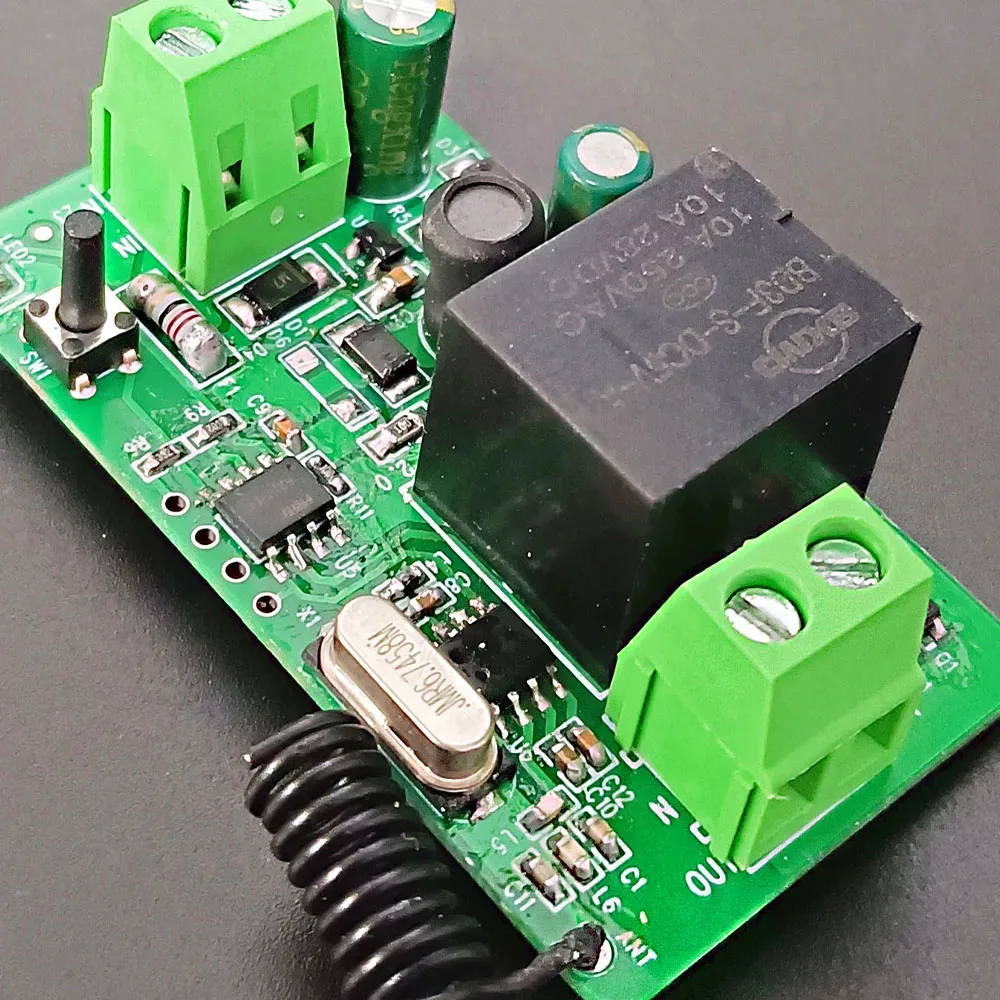

▶Compared to other receiver, we reduced its size (73mm*35mm*23mm) but increased its functionality
✔The receiver's ability to receive RF signals is more stable and powerful
✔This product is an active output, wet contact, simple wiring
✔we have added a new function" Restoring power on and off function"
For example
☛Default the original state of on/off
Press the learning button (on the receiver) 7 times. The indicator LED on the receiver will flash several times and then turn off; Succeed to be switched between this 2 status.
Which means when the power is outage, after 5 seconds or more,  and then comes back, the receiver return to state of on/off.
▶Provide one-year warranty service

▶Here are some parameters of our receiver,this will give you a better understanding of our receiver
▪Working voltage  :  AC 85V~250V
▪Quiescent Current  :  <5MA
▪Max current  :  10A relay
▪Max load:   2200W
▪RF frequency  :  433MHz
▪Receiver size : 73mm*35mm*23mm
▪Working temperature  :  -30~+80 Celsius
▪Receiving Sensitivity  :  >97dbm
▪Amount of storage remote controls  :  20 pieces
▪Support encoding  :  1527 Learning code /2262 fixed code
▪RF Operating mode  :  ASK superheterodyne wireless reception
▪Remote operating mode   : Momentary Mode / Toggle Mode / Latched Mode

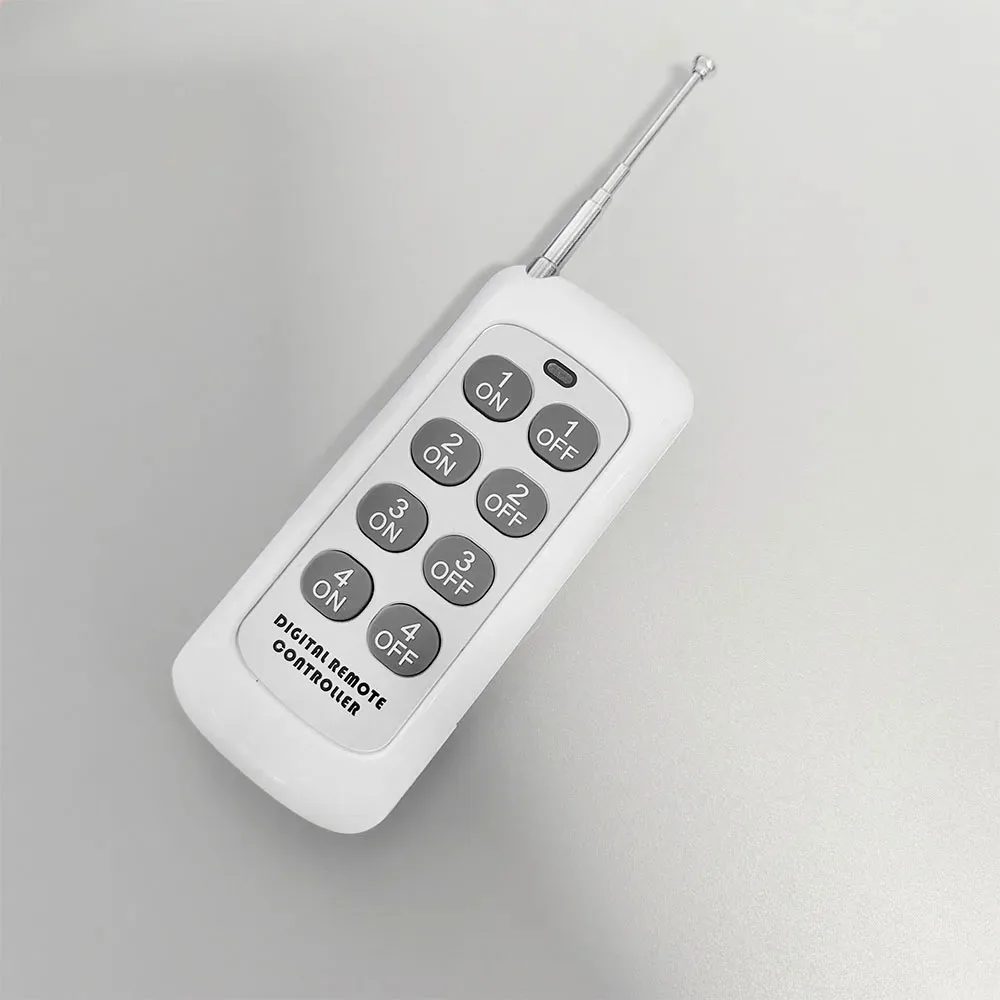

▶Here are some parameters of our wireless remote control
▪Size:90*40*14mm
▪Battery: 23A 12V(include)
▪Button:8pcs(on/off)
▪Receiving Range: Up to 500 meters(theoretical distance)
▪Code: 1527 leanring
▪Material: PVC

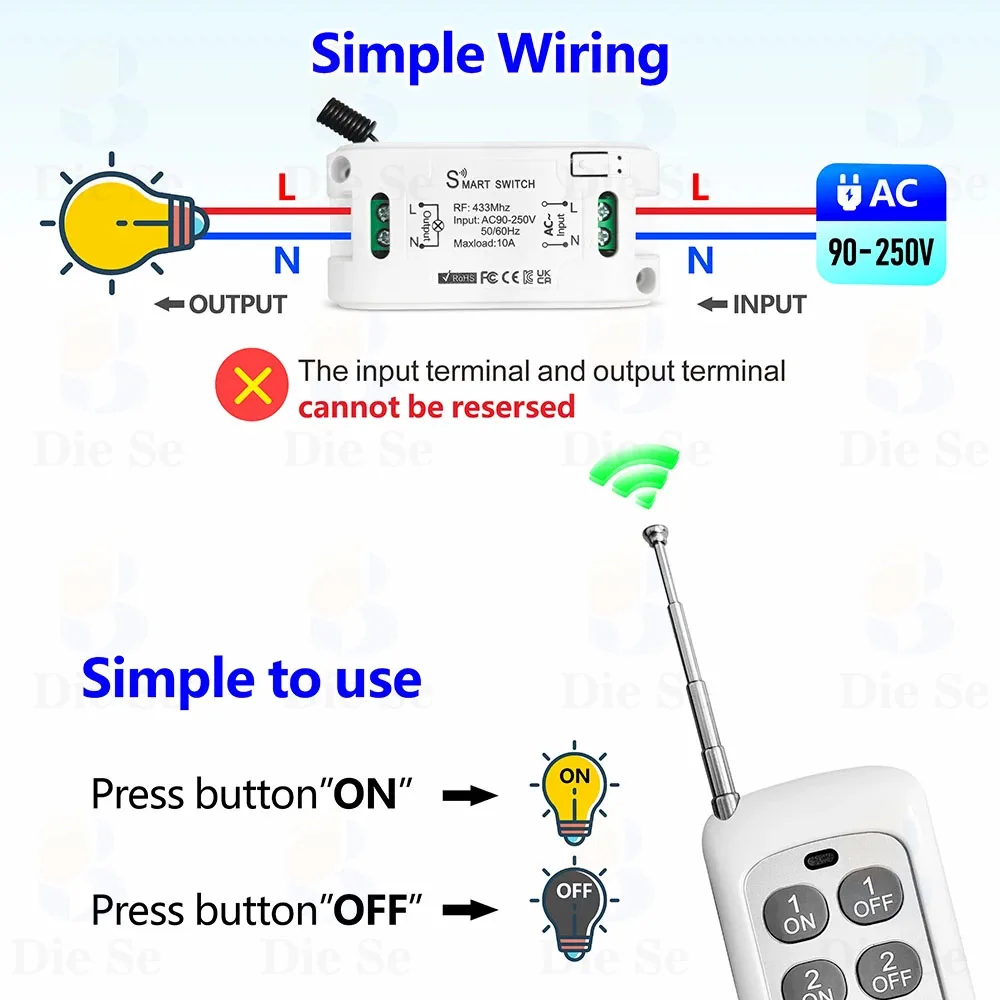

▶Wiring Diagram

▶You can set up in 3 modes:
☛Momentary mode:
Press and hold the button,this relay "1" will work;Release the button,this relay "1" will stop.
☛Toggle mode:
Press the button,the relay will work;press the button again,this relay will stop.
☛Latch mode:
Press "ON" button,the relay "1" will work;press "OFF" button ,this relay "1" will stop;

▶How to Set up
☛Momentary/Toggle mode:
Press learning button four/twice ,press the button once,succeed.
☛Latch mode
Press learning button 3 times ,press the button "ON" once,wait 2 seconds,press the button "OFF" once,succeed
☛Clean data:
Press learning button 8 times,the data will be cleaned.All remotes cannot control this receiver.
If u want to change modes,u need to clean the data first.
