Degree Mini Recessed PIR Ceiling Occupancy Motion Sensor Detector Light Switch 110-240V AC Home Improvement

Features:

-The sensor can be adjusted to work under both daylight and night lights,or it can be set to work only under night lights.

-Easy to install.

-Adjustable light working hours.

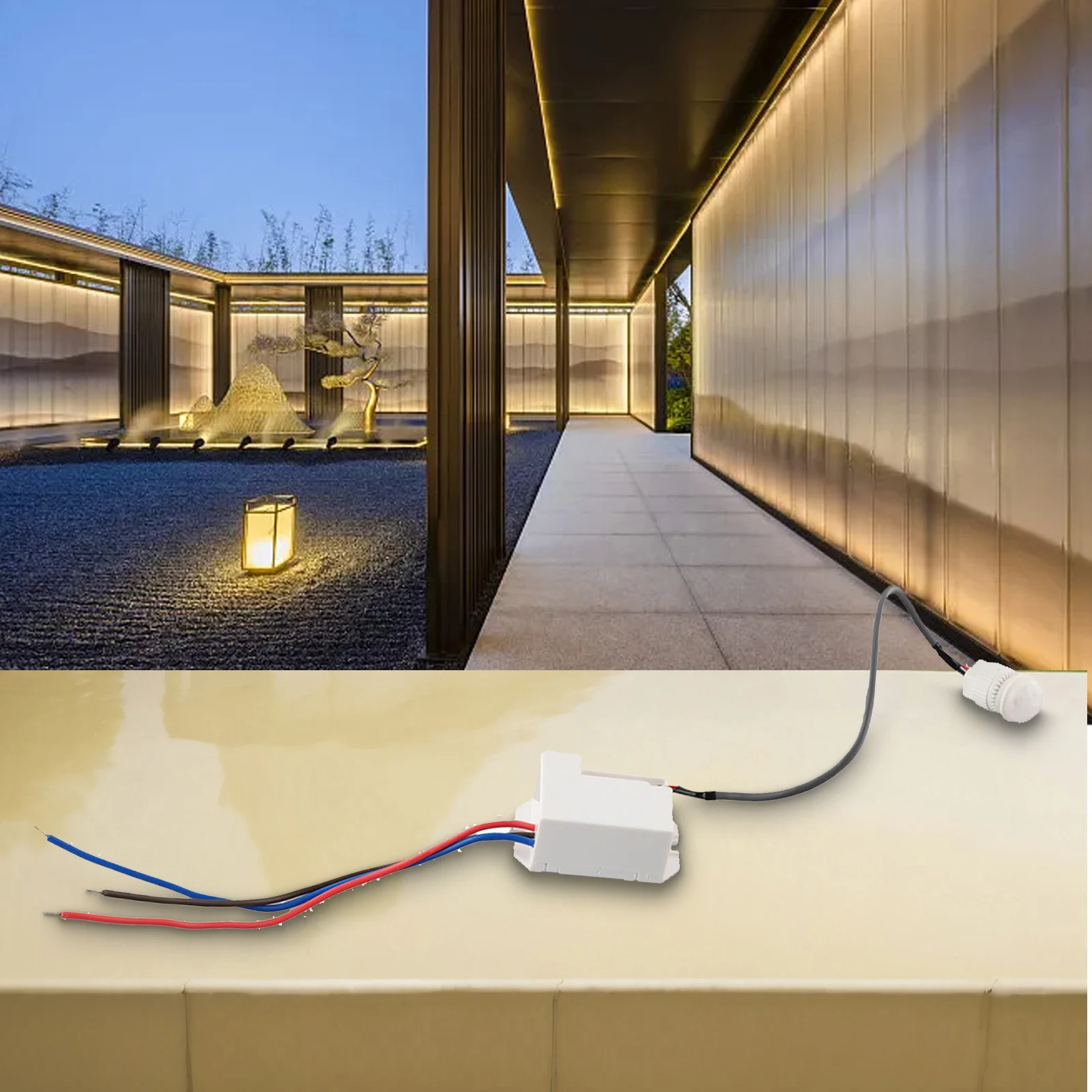

-This product is a ceiling infrared motion detector, used to control lights.

-It utilizes the infrared energy from human as detection,as soon you move into the area of the sensor it will switch the lights on,once you move away from the area and after a pre-programmed time,the sensor will power off the lights.

-You can have the sensor working in night only or day and night,this unit has 6m range and for 360 Degree detection angle.

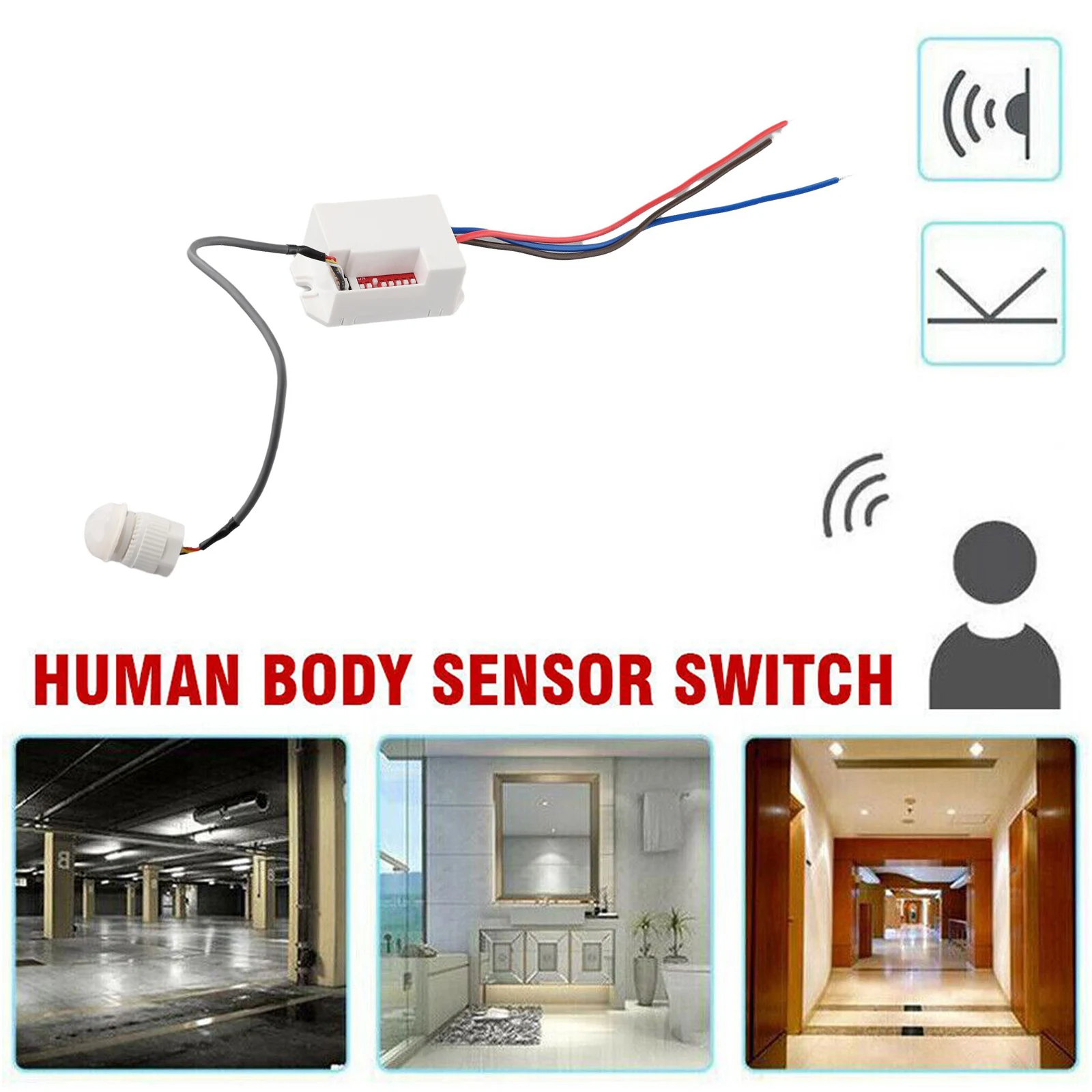

-It can be used in toilets, bathrooms z 3 only and practically anywhere where you want to save energy it is widely used where people forget to turn light switches off.

Specification:

Rest Dips are light time delay, 5 sec, 30 sec, 1, 3, 5 or 8 minutes.

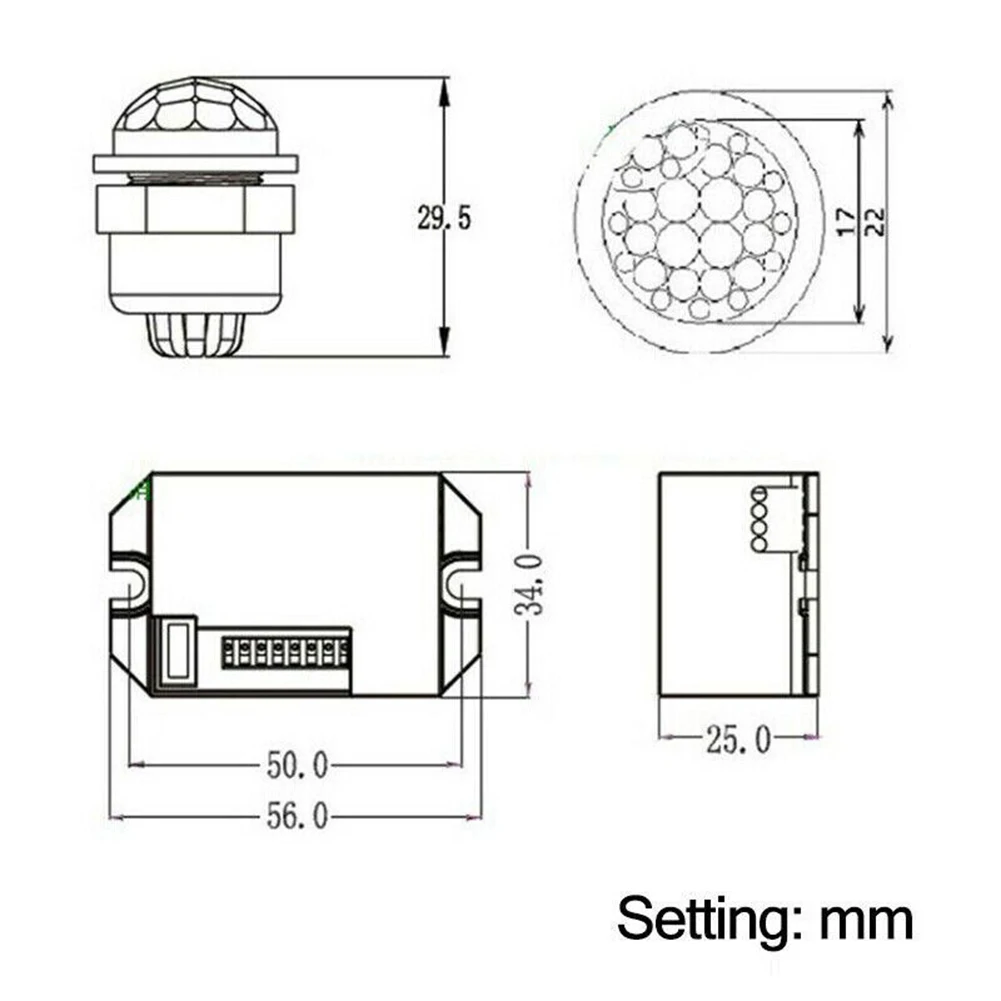

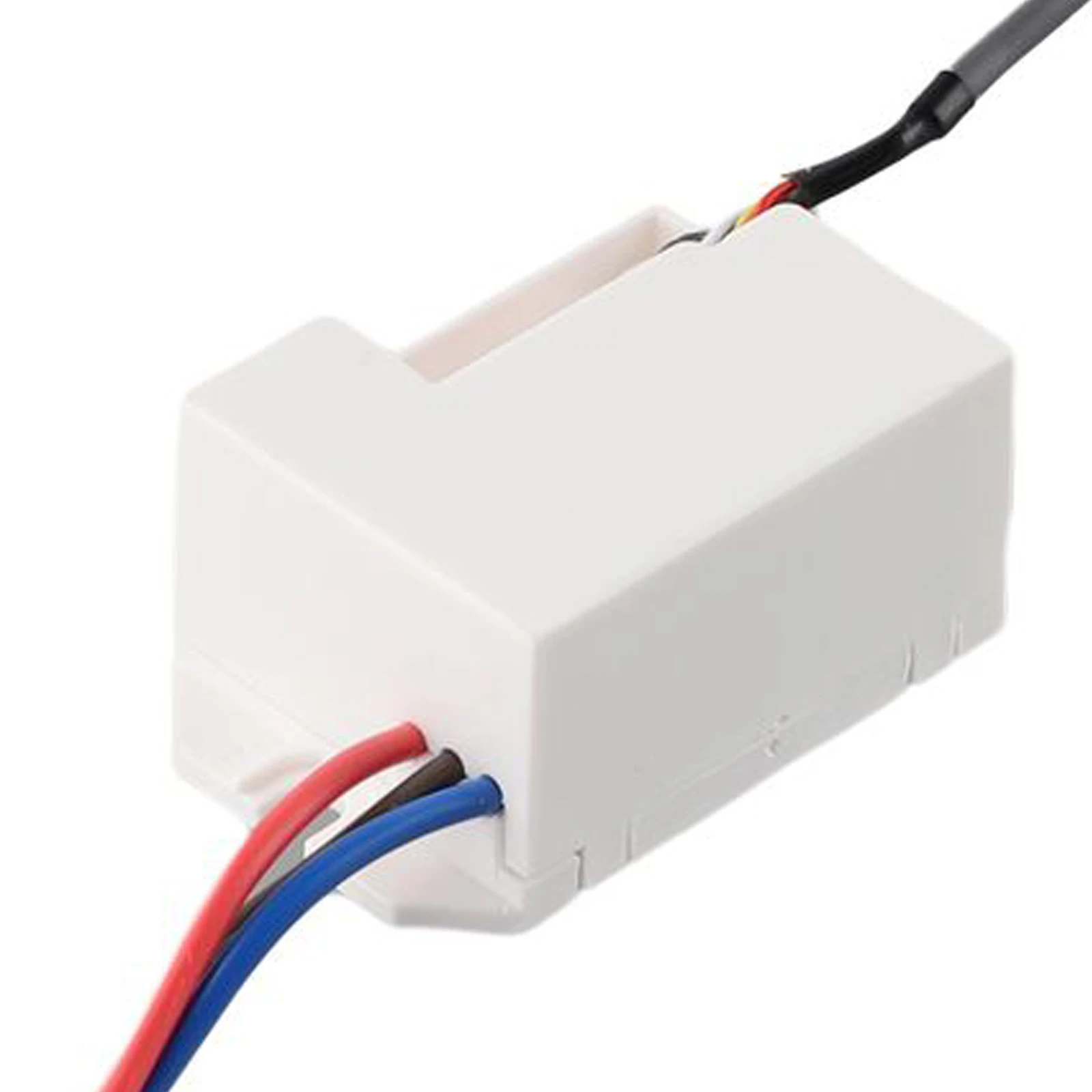

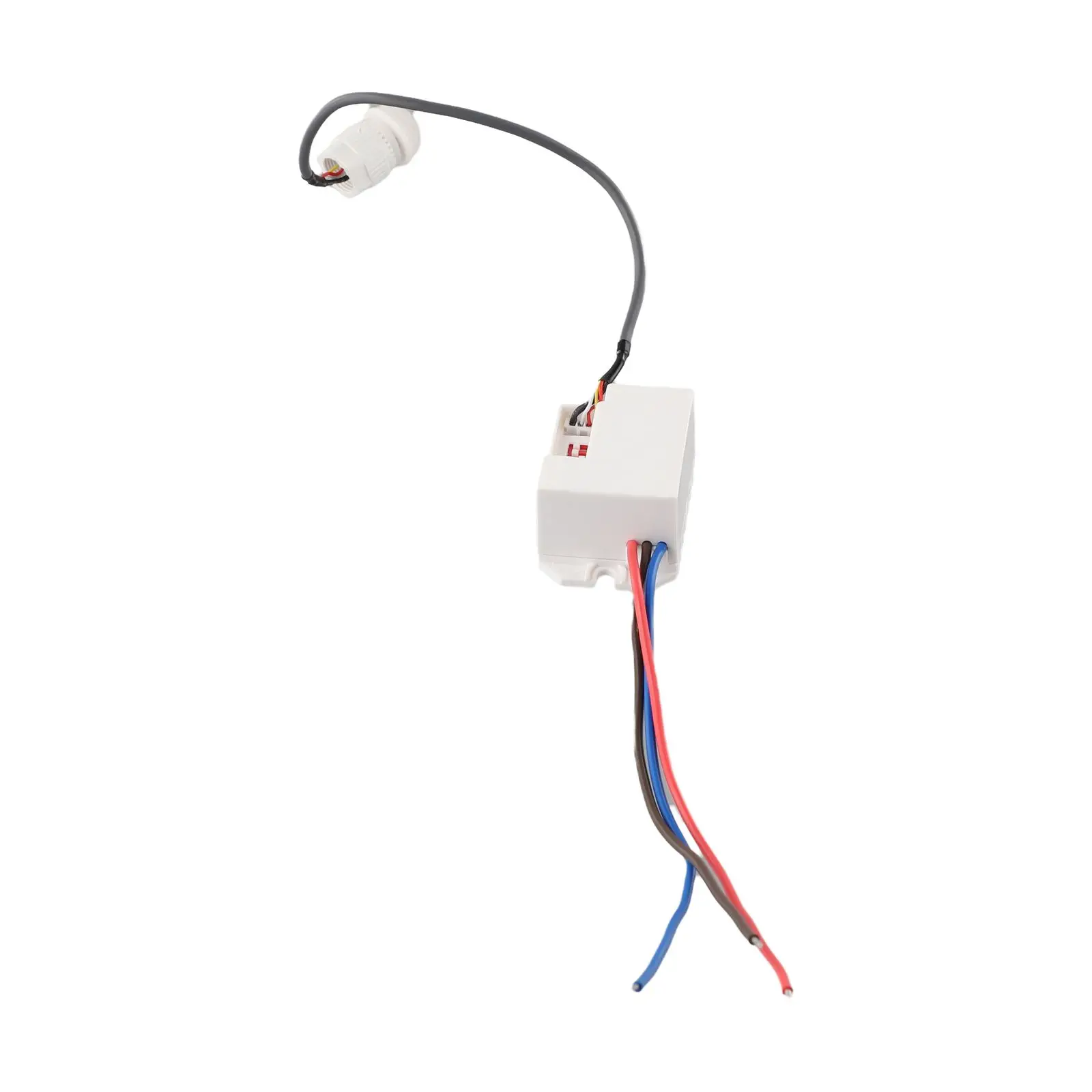

Sensor box measurements: 5.6 cm x 3.4 cm x 2.4 cm

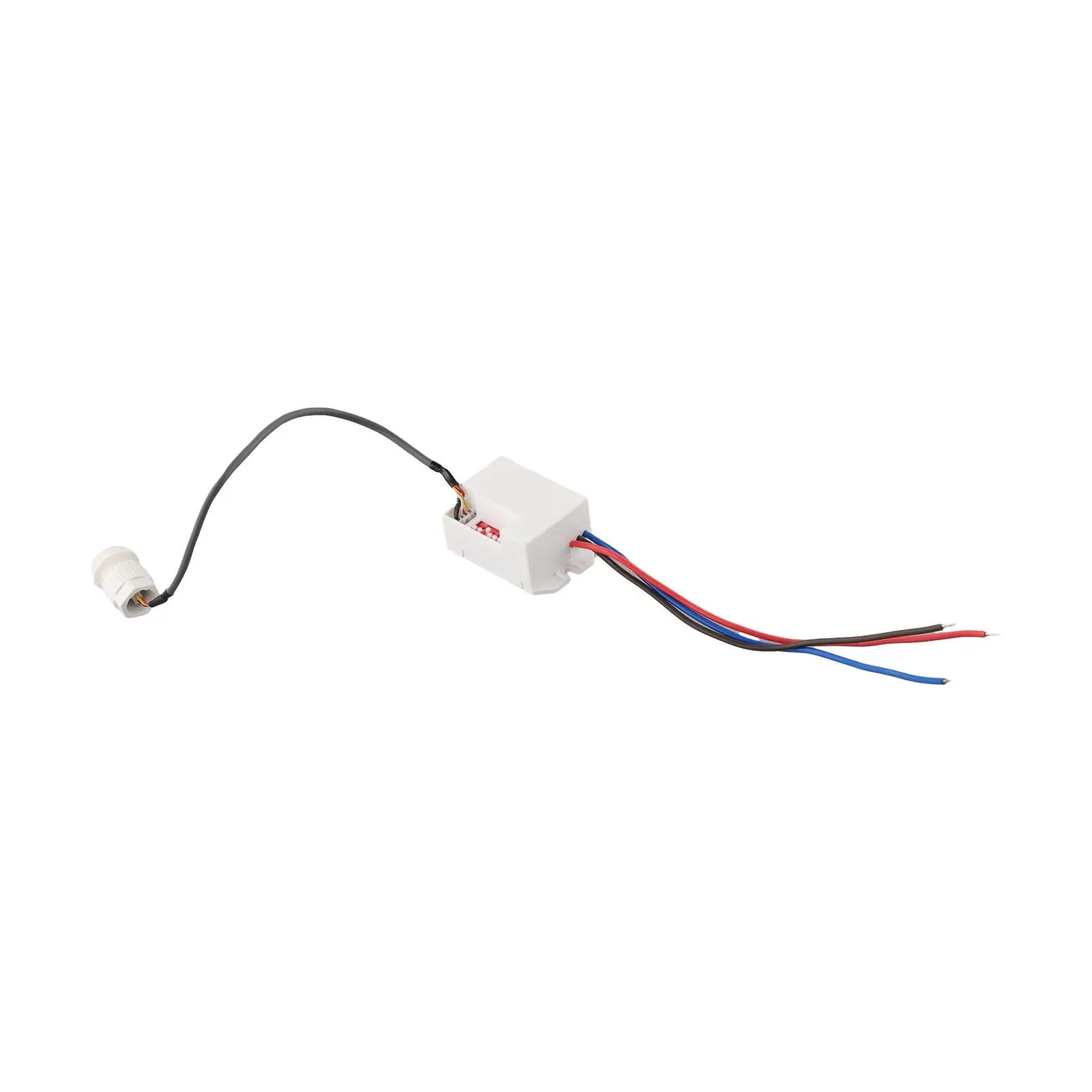

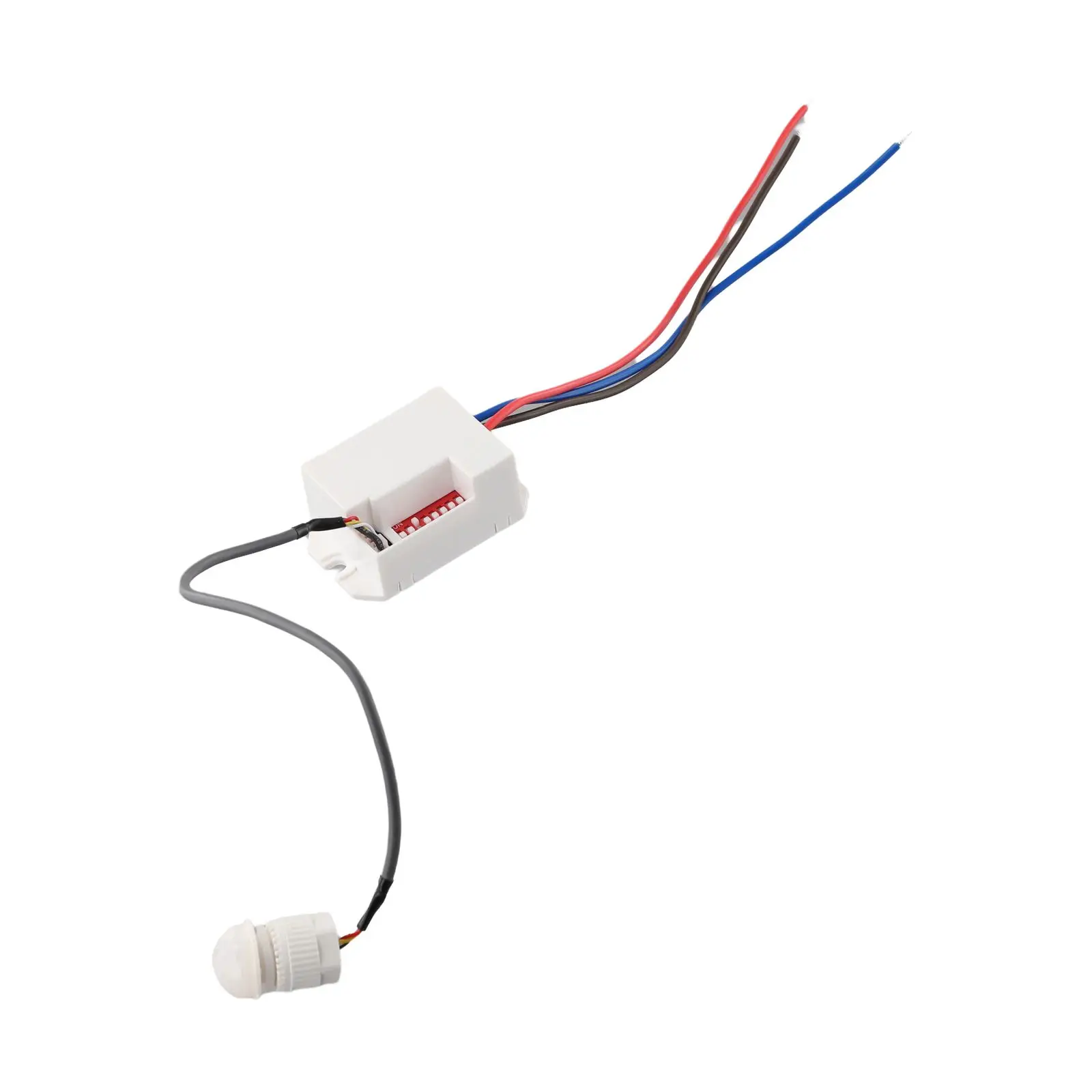

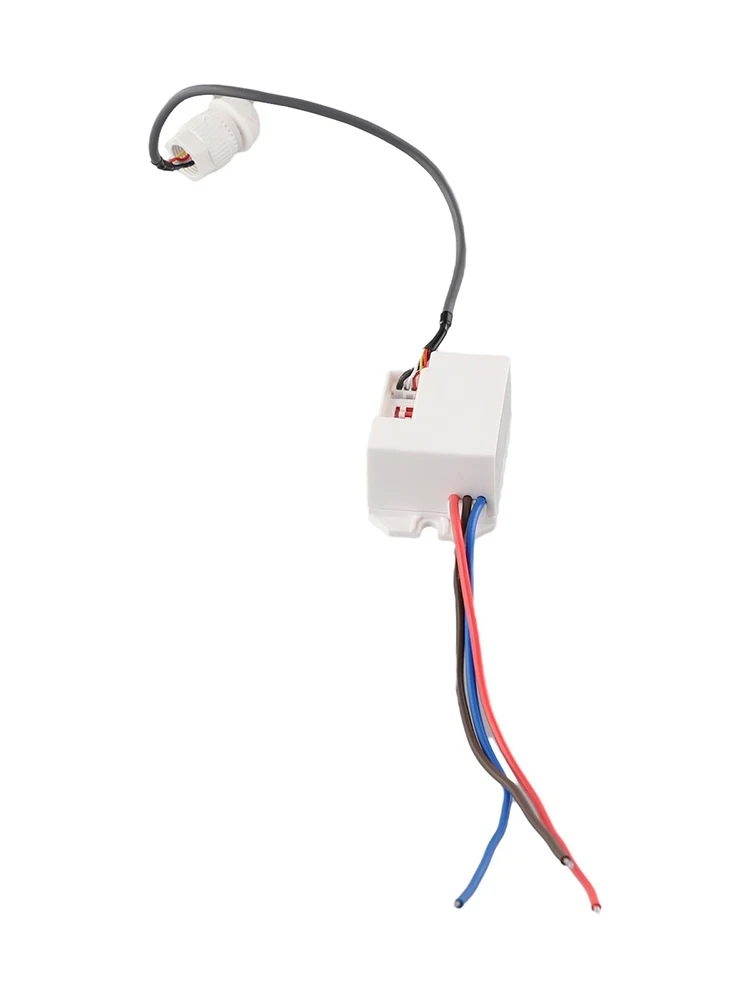

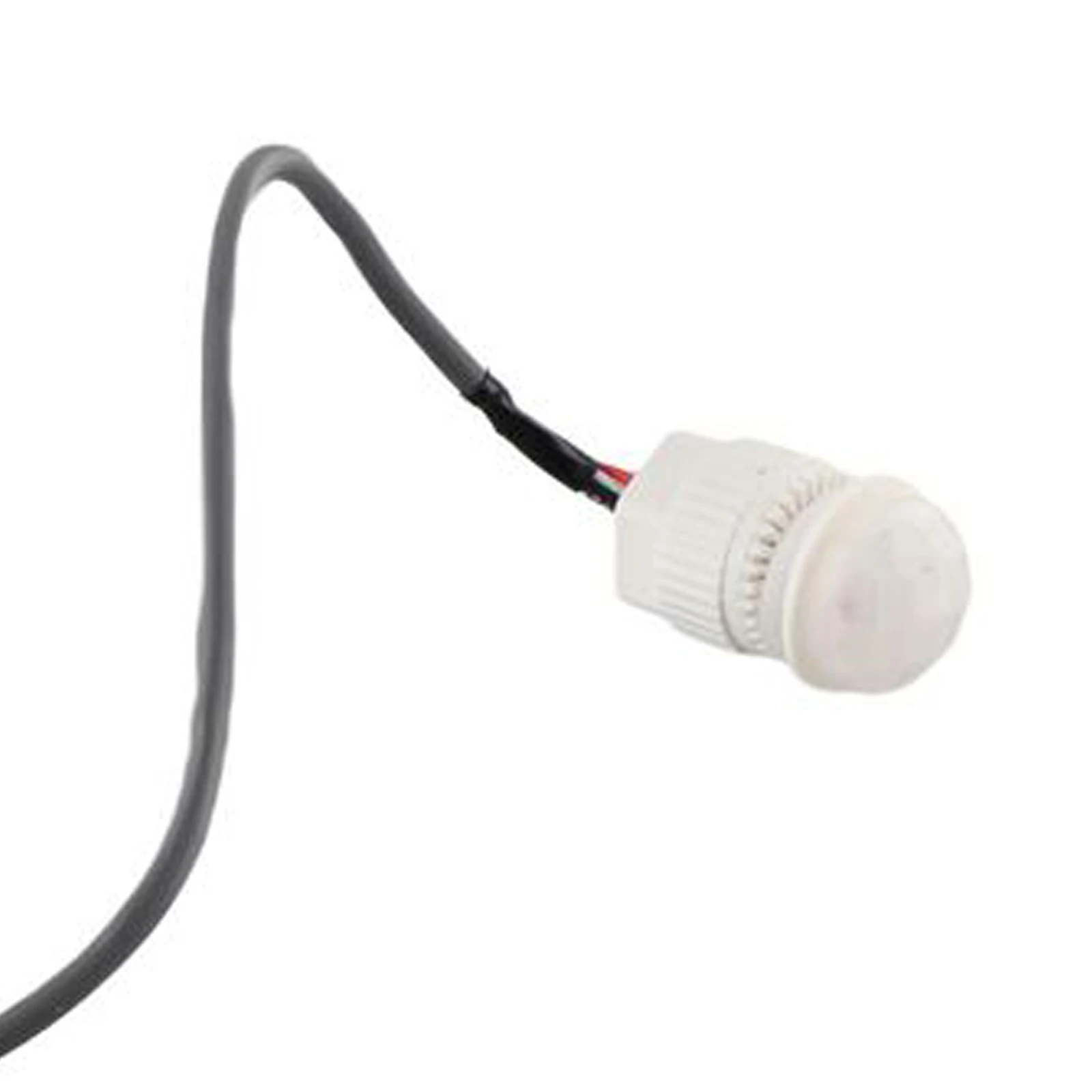

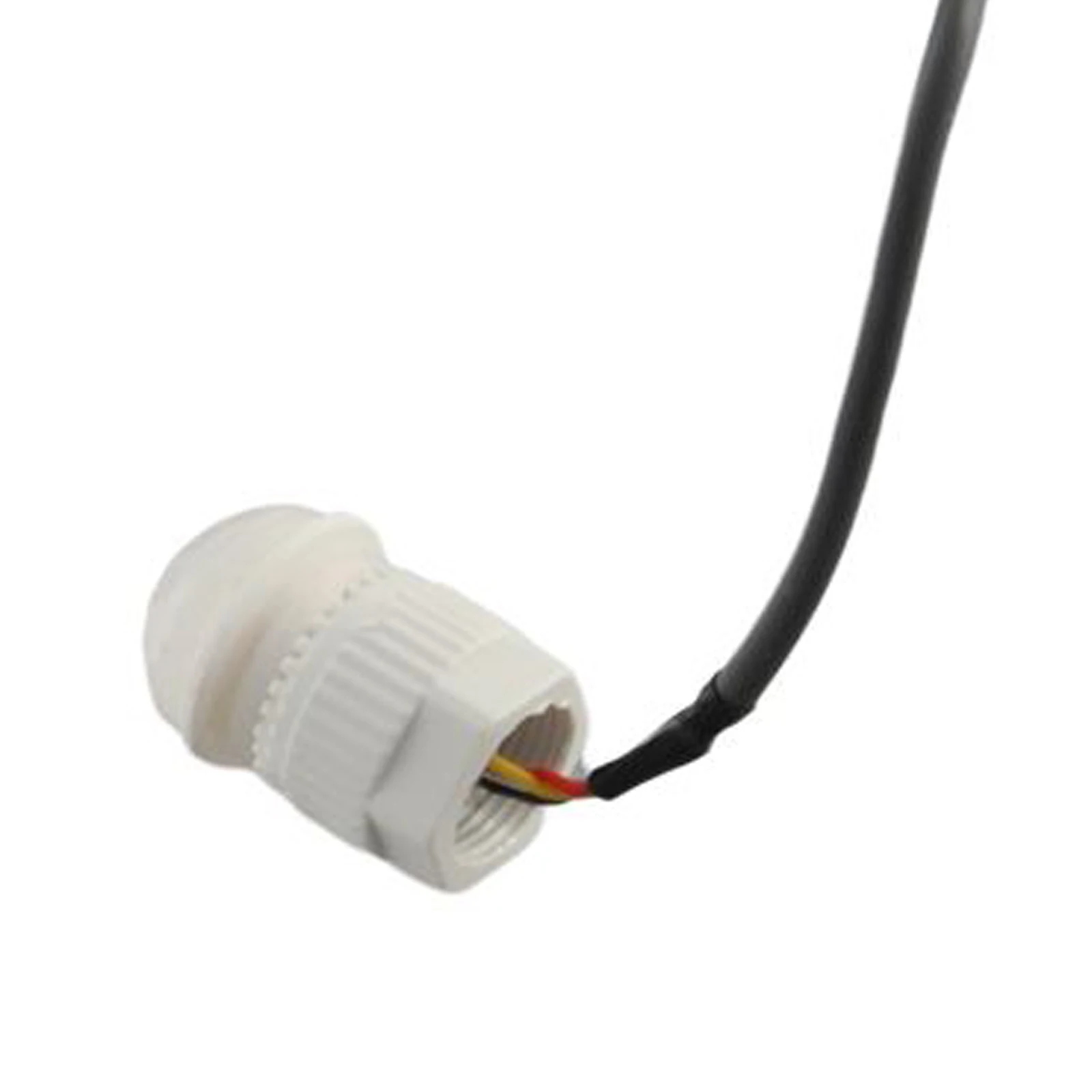

(Sensor head wire is detachable from the box so it would fit through a hole when installing)

Detection Angle: ceiling installation for 360°, horizontal installation 100°

Detection Range: 6m

IP Rating: IP20

Time Setting: 5Sec.30Sec.1.3.5.8Min.Off

Power Source: 110~240V/AC

Rated Load: 800W

Max Power Frequency: 50/60Hz

Ambient Light: Work Temperature:-10~+40

Installation:

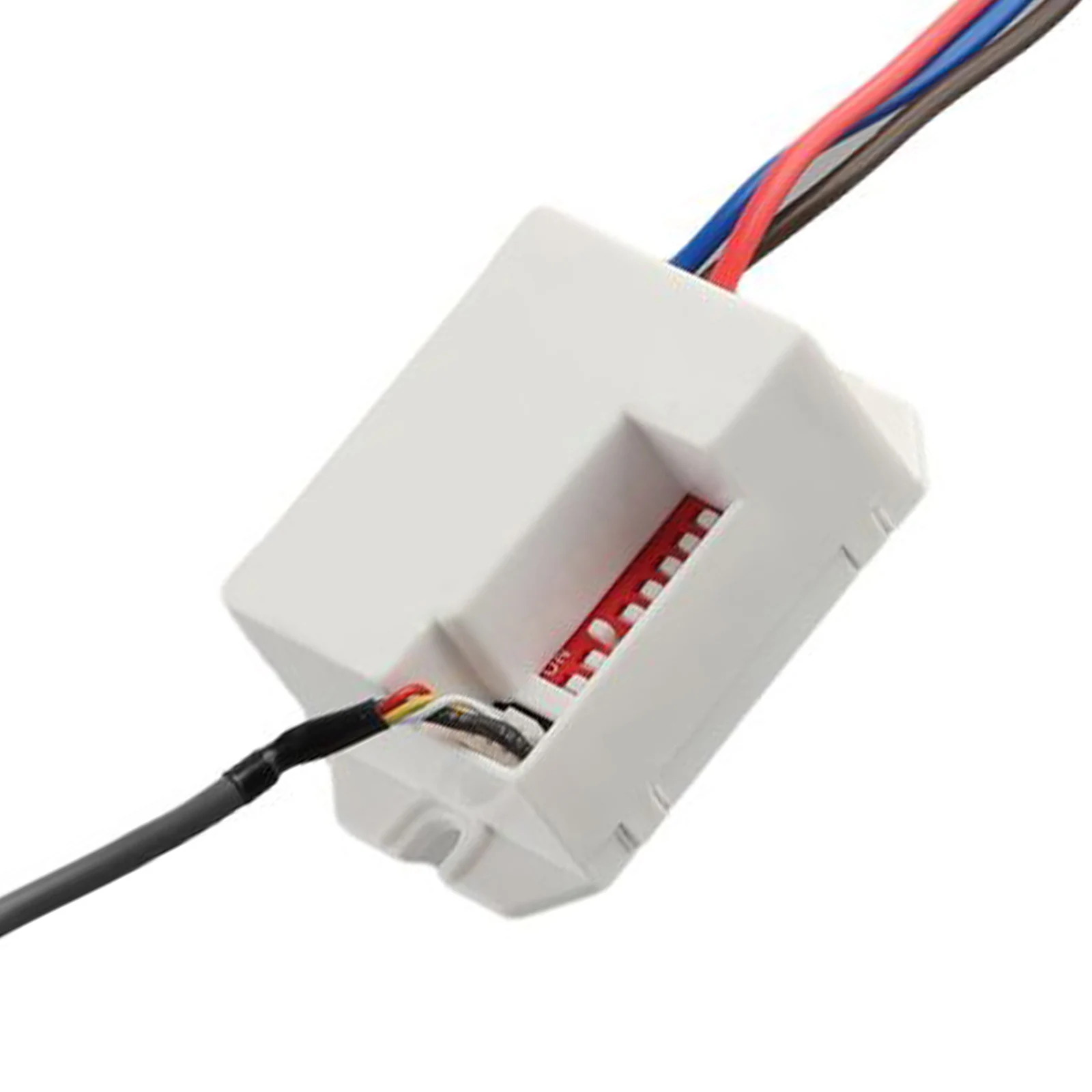

-1st dip if its ON it will only detect movement in a night light.

-If its OFF it will also work in the day time and Night time.

-2nd dip is a sensitivity when its ON it is set on a low sensitivity when its OFF it is set on a high sensitivity(it can detect wind and other non human movement)

Package Included:

1 x PIR Sensor Detector
